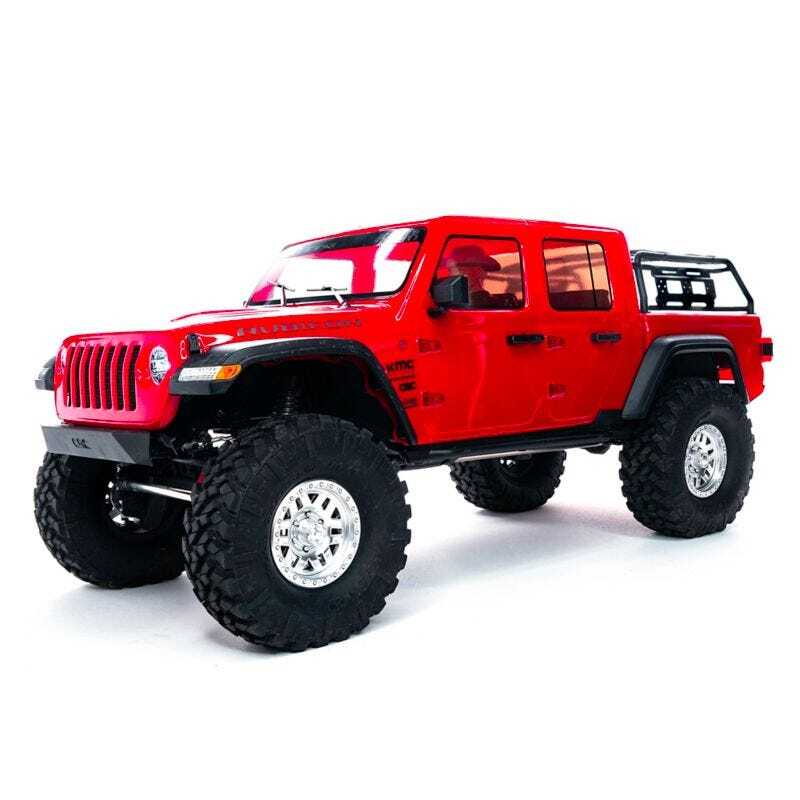

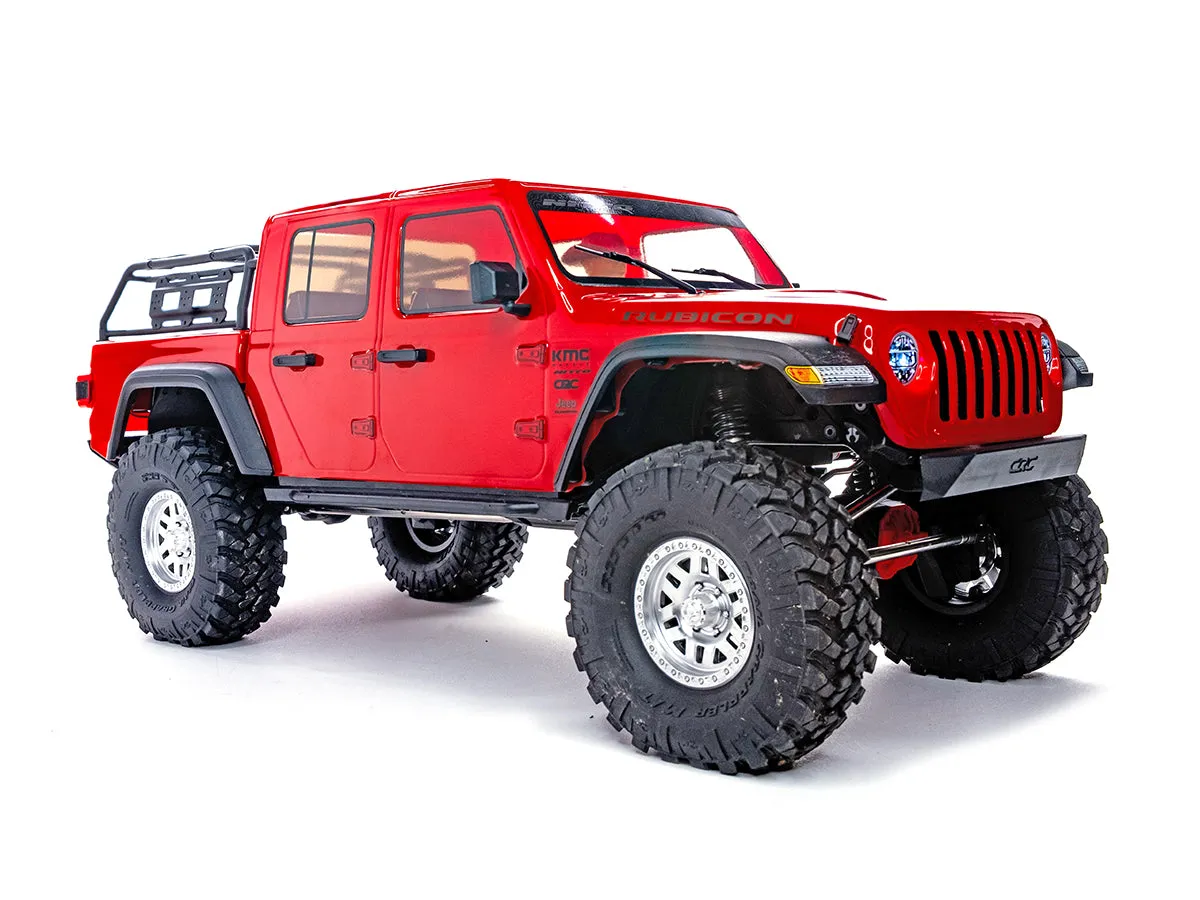

Axial 1/10 SCX10 III Jeep JT Gladiator RC Crawler, RTR, Red

Axial® climbs to the peak of scale rock crawling with the ready-to-run SCX10 III Jeep® JT Gladiator. The upgraded chassis offers a third-channel DIG function plus 14-inch wheelbase that allows Axial® to include a larger, more realistic 2-piece body.

• Replica V8 engine cover, transmission housing and transfer case cover and protect the motor while improving scale appearance and adding forward-mounted weight.
• DIG function transmission option lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius.
• Two-speed transmission option allows you to increase vehicle speed by approximately 40%.
• Drivers can choose between DIG and 2-speed transmission options or run both with a 4-channel receiver and two servos (not included)
• AR45 Portal Axles feature an offset front housing for realistic looks.
• Axle housings also use portal gears for increased ground clearance and a universal that provides 45 degrees of steering.
• Differential locker features Hypoid gears, allowing for smaller size gears, improved gear reduction and reduced torque twist.
• Authentic Jeep® JT Gladiator body includes over 20 injection-molded parts including bed rack, door handles, mirrors, hood vents and more.
• Three-piece body provides a more realistic deep bed.
• New centered battery position improves chassis balance with front-mounted motor.
• Chassis side pods offer mounting locations for smaller LiPo batteries, if desired.
• Oil-filled shocks feature new O-ring material for an improved seal and cap with bleed screw for easier rebuilds.
• All drive train components in the transmission, portals and axle gears are metal for extreme durability x with pinion gear included, the vehicle has 23 metal gears in total.
• Improved materials increase durability and stiffness while holding tighter tolerances to eliminate most slop.
• Metal stainless steel pivot balls at all suspension points increase durability and wear life for consistent handling.
• Improved suspension geometry further reduces torque twist while allowing chassis fine-tuning.
• Extended 14-inch wheelbase with longer frame rails and chassis supports a more realistic version of the Jeep® JT Gladiator body.
• Detailed interior with molded driver adds to the vehicle's realistic scale looks.
• New rear body mounts simplify body removal.
• Injection-molded inner fenders hide internal components usually visible from the side of the chassis.
• Spektrum DX3 DSMR® radio is fully compatible with the Smart telemetry potential of the installed Firma Smart 40A ESC/receiver.
• Included Spektrum 15kg metal gear servo and all electronics are protected by a waterproof design for confident driving in any weather and trail conditions.

The 1/10 scale Axial^®SCX10III Jeep^®JT Gladiator 4WD RTR marks the next step forward in ready-to-run, scale off-road action. While continuing to incorporate key components that have made SCX10vehicles successful, the SCX10III chassis increases realism with details that include a replica V8 engine to house the front-mounted 540 brushed motor, mated to a realistic transmission housing and transfer case like a 1:1 vehicle. The SpektrumDX33-channel 2.4GHz DSMR^®transmitter and Firma40A ESC/receiver are also ready to give you the advantages of innovative SpektrumSmart technology.

Out of the box, the SCX10III Jeep^®JT Gladiator transmission offers a third-channel DIG function that lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius. Though locked out from the factory, you can set up the vehicle to have a 40% faster second gear instead of DIG x or, by adding another micro servo and using a radio with at least four channels (such as the 5-channel Spektrum DX5), have simultaneous access to both the DIG and two-speed functions.

The SCX10III Jeep^®JT Gladiator uses new AR45portal axles to improve performance by increasing the ground clearance and reducing torque twist. The motor is located at the front of the chassis for forward weight. The standard battery tray is positioned near the vehicle's center for improved balance and accepts full-size LiPo or NiMH packs. There are also locations in the side pods for drivers who prefer smaller shorty" LiPo packs. Inner fenders and floor sides hide internal components that would usually be visible from the side of the chassis.

Topping off the chassis is a scale Jeep^®JT Gladiator body that mirrors its full-size counterpart with many highly authentic details. The body has over 20 injection-molded parts including a bed rack, door handles, mirrors, hood vents and more x taking polycarbonate body realism to the next level. The body has been split into three pieces for a more realistic deep bed. Officially licensed Nitto Trail Grappler tires on 3-piece beadlock wheels add more scale realism and more grip on dirt, rocks, and all other off-road trails.

With the SpektrumDX3radio, you'll enjoy the superior range, response, and interference resistance of DSMR^®technology. Together with the installed FirmaSmart 40A ESC/receiver, it also offers the advantages of exclusive SpektrumSmart technology. Install a Spektrum Smart LiPo battery and you can view vehicle battery capacity at a glance on the DX3 transmitter's voltage level indicator. Outfit the DX3 with the optional BT2000 Bluetooth module and download the free Spektrum Dashboardapp to your smart device, and you're also ready to use Smart real-time telemetry x without needing on-board sensors or modules.

Type

"Scale" 4x4 Crawler

Completion Level

Ready-to-Run

Scale

1/10

Length

22.25 in (565 mm)

Width

9.25 in (234 mm)

Height

9.5 in (241 mm)

Weight

7 lb (3.175 kg)

Ground Clearance

3 in (76.2 mm)

Wheelbase

14 in (356 mm)

Track

8.9 in (226 mm)

Front Track

8.9 in (226 mm)

Rear Track

8.9 in (226 mm)

Chassis

Adjustable Steel C-channel

Suspension

Multi-Link Solid Axle

Shock Type

Oil-Filled/Coil-Over Spring

Drivetrain

4WD (locked front and rear)

Differential

Locked

Wheel Type

Injection Moulded 3-Piece Beadlock

Wheel Diameter

1.9 in (48.3 mm)

Wheel Width

1 in (25.5 mm)

Tyre Compound

R35 (sticky)

Tyre Tread

Nitto Trail Grappler M/T

Tyre Diameter

4.7 in (119 mm)

Motor Type

Brushed

Motor Size

540

Pinion

14T

Gear Pitch

32-Pitch

Final Drive Ratio

45.6:1 Low / 31.3:1 High

Speed Control Included

Y

Radio

Spektrum

Servos Included

Y

Body

Polycarbonate

Ball Bearings

Complete Vehicle

Experience Level

Beginner

Recommended Environment

All-Terrain

Is Assembly Required

No
