Engineered from the ground up, the Mamba XLX2 is packed with a potent combination of hardware and software advancements, sensored performance, CRYO-DRIVE™ and waterproof design that will set a new standard for high-performance power systems. The Mamba XL family is well known for its extreme performance capabilities. The XLX2 pays homage to the legacy of its predecessors and exceeds their performance on all levels.

CRYO-DRIVE™, Castle’s proprietary breakthrough technology integrates unique software and dedicated hardware to reduce heat and dramatically increase performance. Thousands of times per second, the XLX2 software minimizes the amount of time the electrical components spend generating heat. These software advancements work in parallel with an open housing design which enables increased directional airflow to cool critical components. With the combination of a new 50mm fan and forged elliptical fin heatsink, the XLX2 maximizes airflow throughout the system, taking thermal performance to a whole new level. The results are more power handling, cooler ESC temperatures and longer run times and for ultra-high performance.

You can easily optimize the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows™ PC, or wirelessly with the convenience of the new B-Link™ Bluetooth™ Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel, and enable the feature in Castle Link by selecting what Auxiliary function you would like to use. Access programming parameters such as Torque Control, Max Brake or Max Throttle.

SENSORED 1/5TH SCALE IS HERE!

Pairing the Mamba XLX2 with the Castle 4-POLE 12-SLOT SENSORED 2028-800KV will allow heavy, high speed rigs to experience controllable low-end ranges without sacrificing power, punch or speed. SmartSense™ mode uses the motor’s sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle’s ultra-efficient sensorless mode. You’ll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

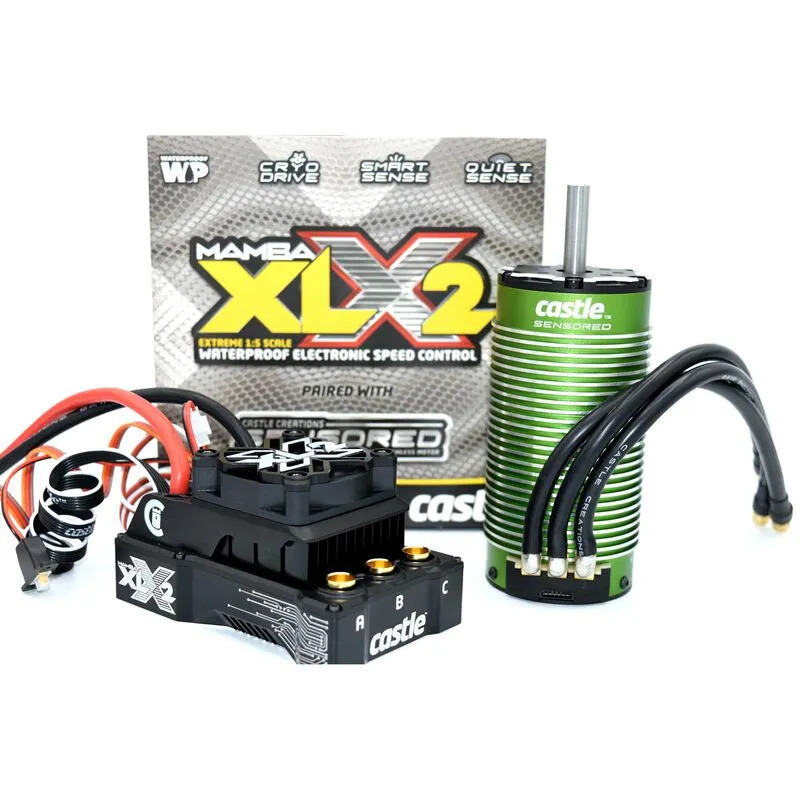

What's in the box?

• Mamba XLX2 ESC

• 2028-800kv Sensored Brushless Motor

• 300mm Direct Connect Sensor Wire

• Mamba Decals

• Motor connection wire, bullets and shrink

• Mamba XLX2 Quick Start Guide

• Sensor port dust cover

ESC Features

• Input Voltage Range 3S-8S LiPo (33.6v max)
• Sensorless, Sensored, SmartSense™ and Brushed Running Modes
• Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
• CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
• Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
• Oversized factory equipped thermally controlled 50MM cooling fan
• Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
• Mounting holes located in bottom of aluminum case for affixing to your vehicle
• Waterproof design for all weather conditions
• Data logging capability to capture and record performance data from your vehicle
• Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• Easily tune and update ESC with USB and Bluetooth™ programming options
• Castle Link USB programming kit (coupon included with purchase)
• Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store)

Motor Features

• 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
• Proprietary stator winding produces low internal resistance for a cooler-running motor
• Dual sensor ports to ensure optimal installation in your large-scale vehicle
• Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
• High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs



ESC SPECS

Application Guidelines:                     1:5th Scale vehicles weighing up to 42 lbs.
                                                          Vehicle Examples: Losi DB XL-E™, Losi Super Rock Rey™, Arrma Kraton 8s™, Arrma Outcast 8s™, Traxxas X-Maxx™. Note:                                                                    some vehicles may require aftermarket parts to allow ESC and/or motor fitment.

Input Voltage Range:                        MIN: 3S LiPo
                                                          MAX: 8S LiPo 33.6V

Running Modes:                                Sensored, Sensorless, Brushed and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor.

Brake:                                                Proportional

Reversible:                                        Yes, but may be disabled for racing.

On/Off Switch:                                    Yes, waterproof

Cooling Fan:                                       Yes, factory equipped (50mm), fully removable** (See Product Use Statements)

Size:                                                    Length: 3.98” (101.2mm)
                                                            Width: 2.49” (63.3mm)
                                                            Height: 2.2” (55.8mm)

Weight (with wires):                             13.1 oz (371g)

Motor Connectors:                               8mm female bullets

Items Needed for Operation:                The Mamba XLX2 requires the use of connectors designed for 150+ amps continuous, such as Castle 6.5mm polarized or CC                                                                      BULLET 8.0MM

Operating environment:                        Waterproof design for all weather conditions (See Operating Environment Considerations)

Programmability:                                   Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely                                                                            downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately).

Telemetry Link Capable:                        Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR Transmitters.

Tech Tips:                                               The Mamba XLX2 has threaded mounting holes on the bottom of the ESC. There are four M3 mounting holes with a maximum                                                                     depth of 5mm; they are spaced 46mm wide and 40.2mm long. Use this template for assistance in alignment and screw hole                                                                         positioning.

Waterproof:                                             Yes

Telemetry Capable:                                 Yes

Data Logging:                                          Yes

Auxiliary Wire:                                          Yes

Minimum Input Voltage:                            3S

Maximum Input Voltage:                           8S

Sensored Capable:                                   Yes

Recon G6 Certified ESC:                          No

ROAR Certified ESC:                                No

MOTOR SPECS



Input Voltage Range:                                 12S max (8s max with XLX2)

Kv:                                                              800

Max. RPM:                                                 45000

Motor Size:                                                 Length: 4.4" (113.2mm)
                                                                   Diameter: 2.2" (57mm)

Shaft Size:                                                  Length: 30mm
                                                                   Diameter: 8mm

Weight (w/wires):                                        44 oz. / 1.25kg

Mounting Hole Specifications:                    4mm @ 30mm spacing

Cooling Fan:                                               Available, but not included (011-0019-00)

Connectors:                                                8.0mm male bullets.

Max. Recommended Vehicle Weight:         Vehicles weighing less than 30lbs.

Tech Notes:                                                 Running modes: Sensorless and Sensored

Water Resistant Design:                              The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are                                                                       not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended                                                                               applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is                                                                         recommended after running in wet conditions. Please refer to the 'Running and Maintaining Castle Motors in Wet Conditions'                                                                         document in the Manual section.
