E-Flite 60 Amp Pro Switch-Mode BEC Brushless ESC, EFLA1060B

E-Flite 60 Amp Pro Switch-Mode BEC Brushless ESC, EFLA1060B

$199.99

Description

Features

Up to 60 amps continuous current with proper air flow and 75 amps burst current (15 seconds)

5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)

Stronger BEC for support of most 3-axis stabilization systems

Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage

3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage

Finned heat sinks

Programmable motor braking

Safe power-arm mode prevents accidental starts

Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage

Programmable throttle input range (1.1msœ1.9ms or 1.2msœ1.8ms)

Programmable soft start for helis and airplanes

Auto motor shut down if signal is lost or there is interference

Programmable timingx5 user-selectable ranges for use with a large variety of brushless motors

Utilizes new smaller MOSFET technology to minimize weight

Radio system power on/off switch

Pre-wired connectorsxE-flite® EC3 connector on battery input and 3.5mm gold bullet connectors on motor output leads

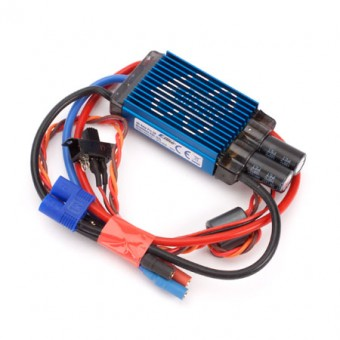

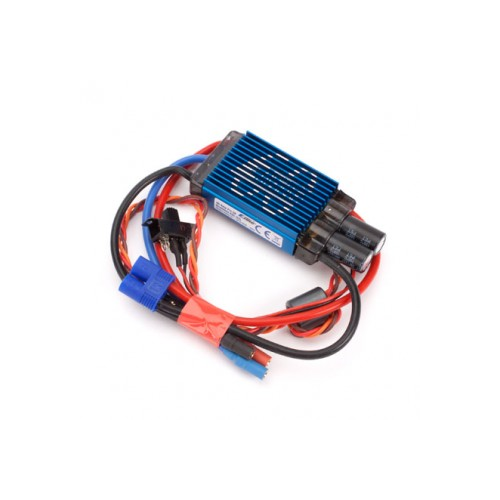

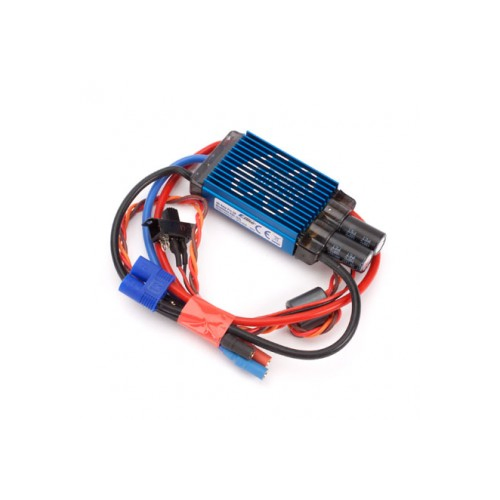

The E-flite® 60-Amp Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

Specifications

Brand E-Flite
