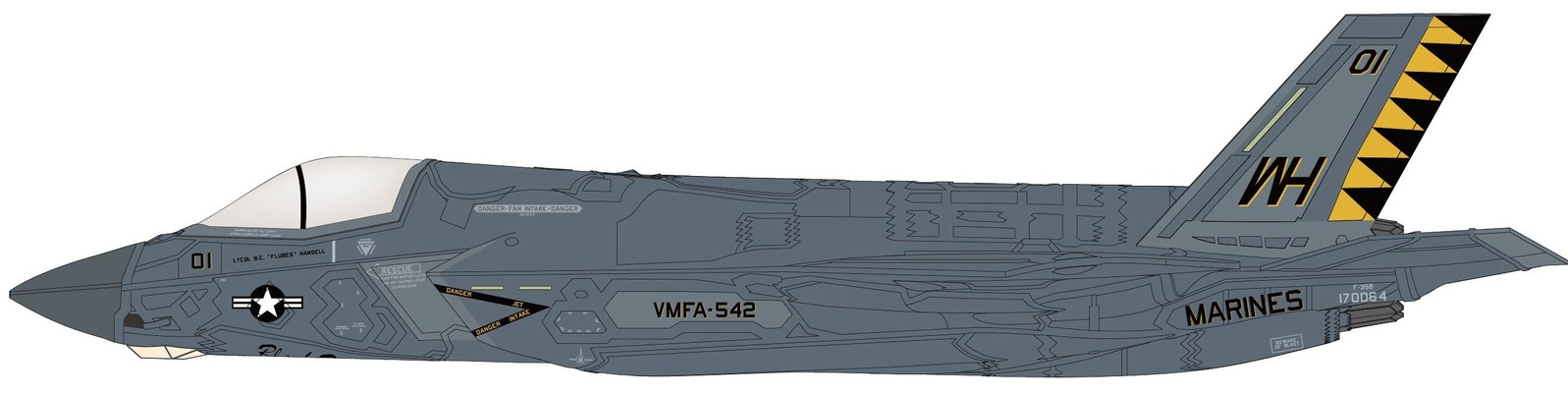

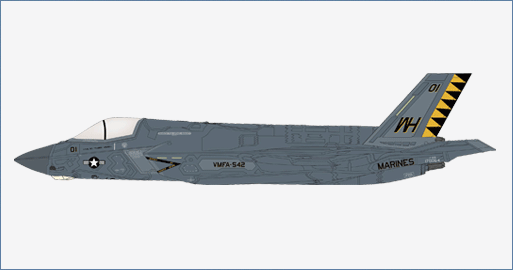

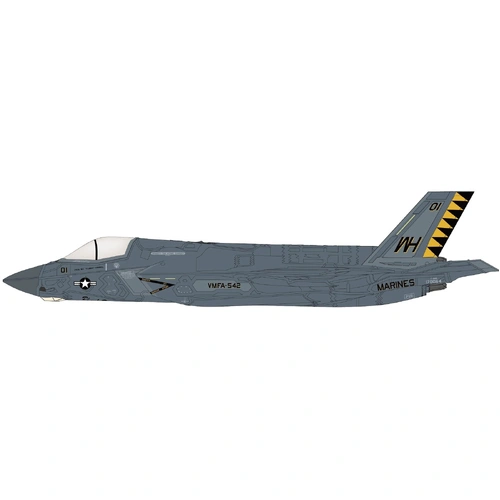

Hobby Master 1/72 F-35B "Black Death" 170064, VMFA-542 "Tigers", MCAS Cherry Point, 2023 (Beast mode) Diecast Model Aircraft

Role:

Multi-role stealth fighter

First Flight: December 16, 2006

Crew:

F-35A CTOL: 1

F-35B STOVL: 1

F-35C CV: 1

Powerplant: ?

F-35A:

1 x Pratt & Whitney F135-PW-100, 40,000 lbs thrust with afterburner,25,000 lbs without.

F-35B:

1 x Pratt & Whitney F135-PW-600, 38,000 lbs thrust with afterburner,26,000 lbs without and 40,500 lbs vertical.

F-35C:

1 x Pratt & Whitney F135-PW-100, 40,000 lbs thrust with afterburner,25,000 lbs without.

Internal Fuel Capacity: ?

F-35A:

18,250 lbs (8,278 kg)

F-35B:

13,500 lbs (6,125 kg)

F-35C:

19,750 lbs (8,960 kg)

Weights:

Empty:

F-35A:

29,300 lbs (13,000 kg)

F-35B:

32,300 lbs (14,700 kg)

F-35C:

34,800 lbs (15,800 kg)

Maximum:

F-35A:

70,000 lbs (31,800 kg)

F-35B:

60,000lbs (27,300 kg)

F-35C:

70,000 lbs (31,800 kg)

Dimensions:

F-35A:

Length:

51.4 ft (15.7 m)

Wingspan:

35 ft (10.7 m)

Height:

14.4 ft (4.38 m)

F-35B:

Length:

51.2 ft (15.6 m)

Wingspan:

35 ft (10.7 m)

Height:

14.3 ft (4.36 m)

F-35C:

Length:

51.5 ft (15.7 m)

Wingspan:

43 ft (13.1 m)

Height:

14.7 ft (4.48 m)

Performance:

Speed with full internal weapons load:

F-35A: Mach 1.6

F-35B: Mach 1.6

F-35C: Mach 1.6

Combat Radius with internal fuel:

F-35A:

590 nm (1,093 km)

F-35B:

450 nm (833 km)

F-35C:

600 nm (1,100 km)

Range with internal fuel:

F-35A:

1,200 nm (2,200 km)

F-35B:

900 nm (1,667 km)

F-35C:

1,200 nm (2,200 km)

Weapons (Standard Internal):

F-35A:

1 x 25 mm GAU-22/A cannon

2 x AIM-120C air-to-air missiles

2 x 2,000 pound GBU-31 JDAM guided bombs

Weapons Payload:

18,000 lbs (8,160 kg)

F-35B:

2 x AIM-120C air-to-air missiles

2 x 1,000 lb GBU32 JDAM guided bombs

F-35C:

2 x AIM-120C air-to-air missiles

2 x 2,000 pound GBU-31 JDAM guided bombs
