Kadee #21 HO Long 25/64 Underset Shank KAD-21

Kadee #21 HO Long 25/64 Underset Shank KAD-21

$16.99

Description

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#21 Magne-Matic® Metal Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

HO-Scale

Package Includes:

  • (2) Pair #21 Plastic Shank Couplers - Long Underset Shank
  • (2) Pair #634 Centering Spring NO.5® Style
  • (2) Pair #213 055" ID & .100" ID Bushing/Sleeves
  • (2) Pair #212 Talgo Truck Adaptors
  • (2) Pair #213 Gearboxes
  • (2) Pair #232 Gearboxes
  • (2) #622 Knuckle Springs

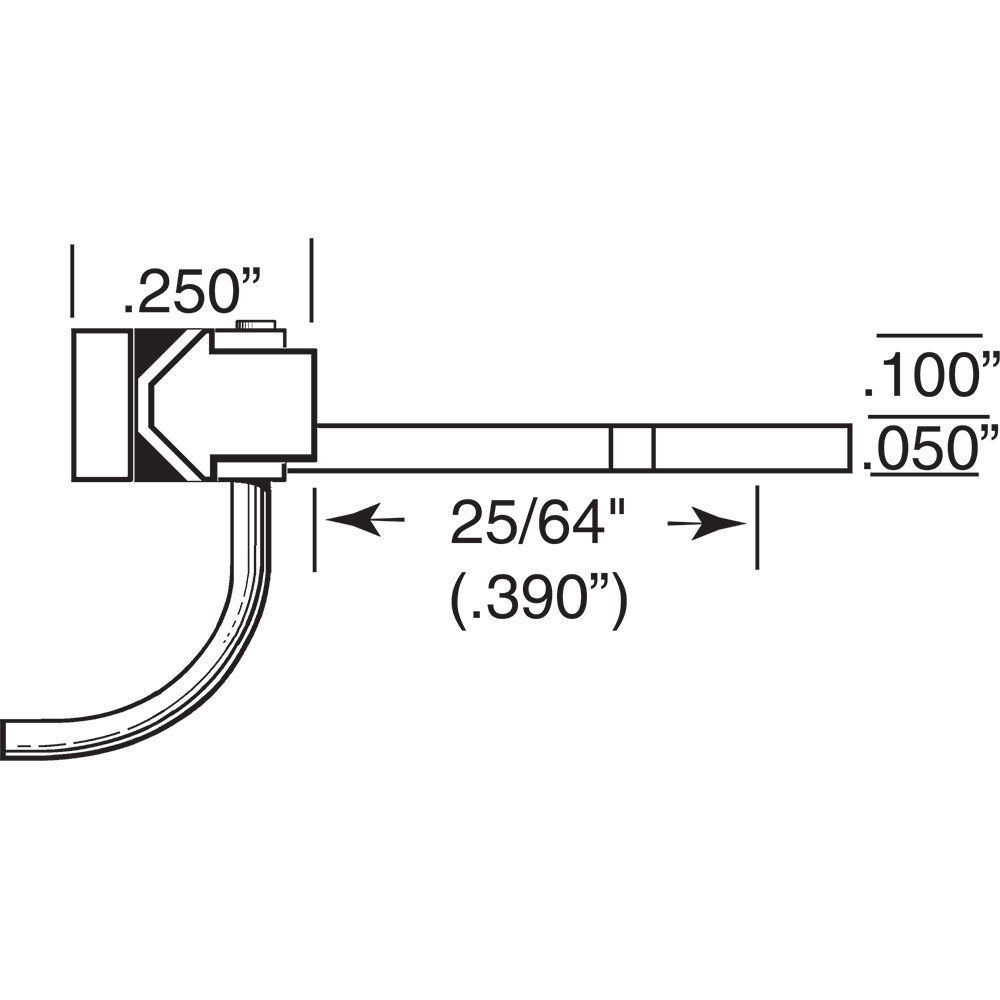

#21 Plastic Coupler Features:

Material - Metal Knuckle, Plastic Coupler Shank
Shank Length - Long (25/64") (center hole to back of coupler head)
Coupler Offset - Underset
Knuckle Spring - #622
Centering System - Standard Shank
Centering Spring - #634 Centering Spring NO.5® Style
Head - Standard Head
Works In Place of - #141, long underset "clone" couplers
Works With - #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

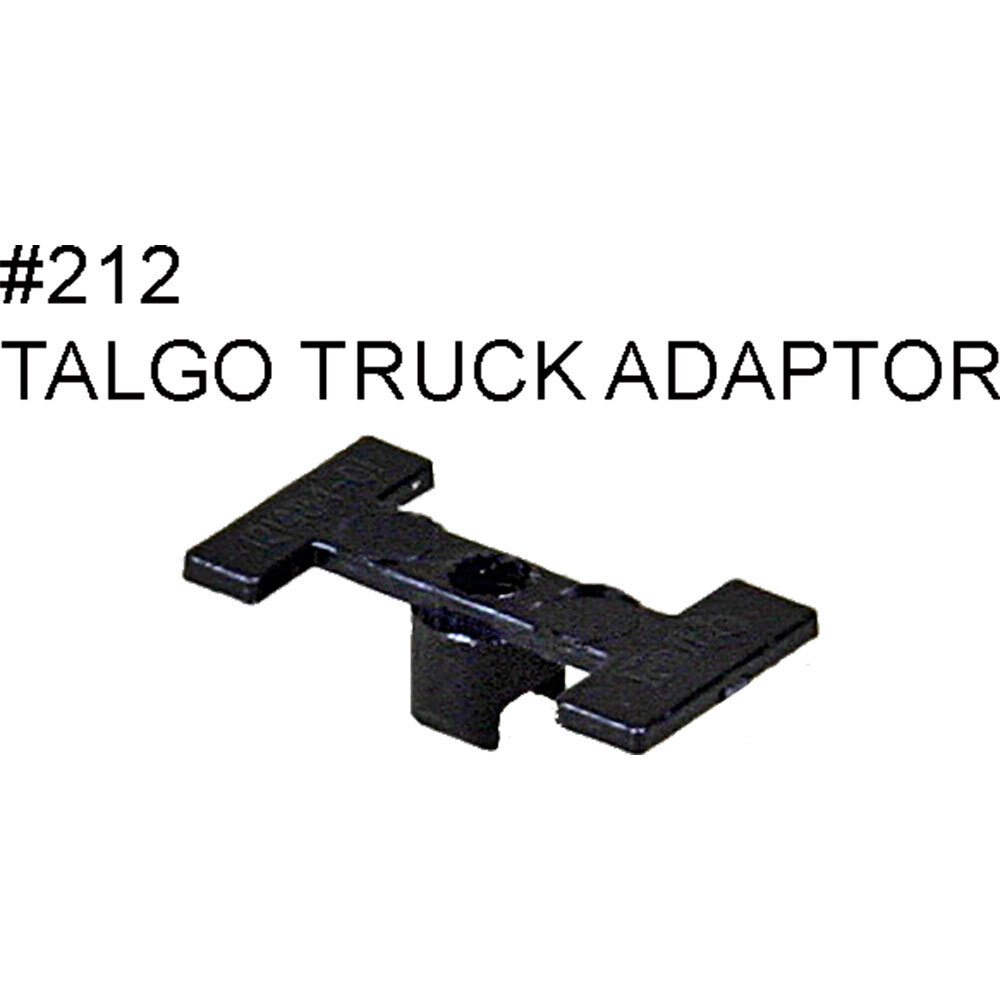

#212 Talgo Truck Adaptors:

Material - Insulated Plastic
Works With - NO.5®, #58, 20-Series and all Whisker® Couplers
To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge.
NOTE:So it is important to check coupler height and make sure it is correct"before"you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something.

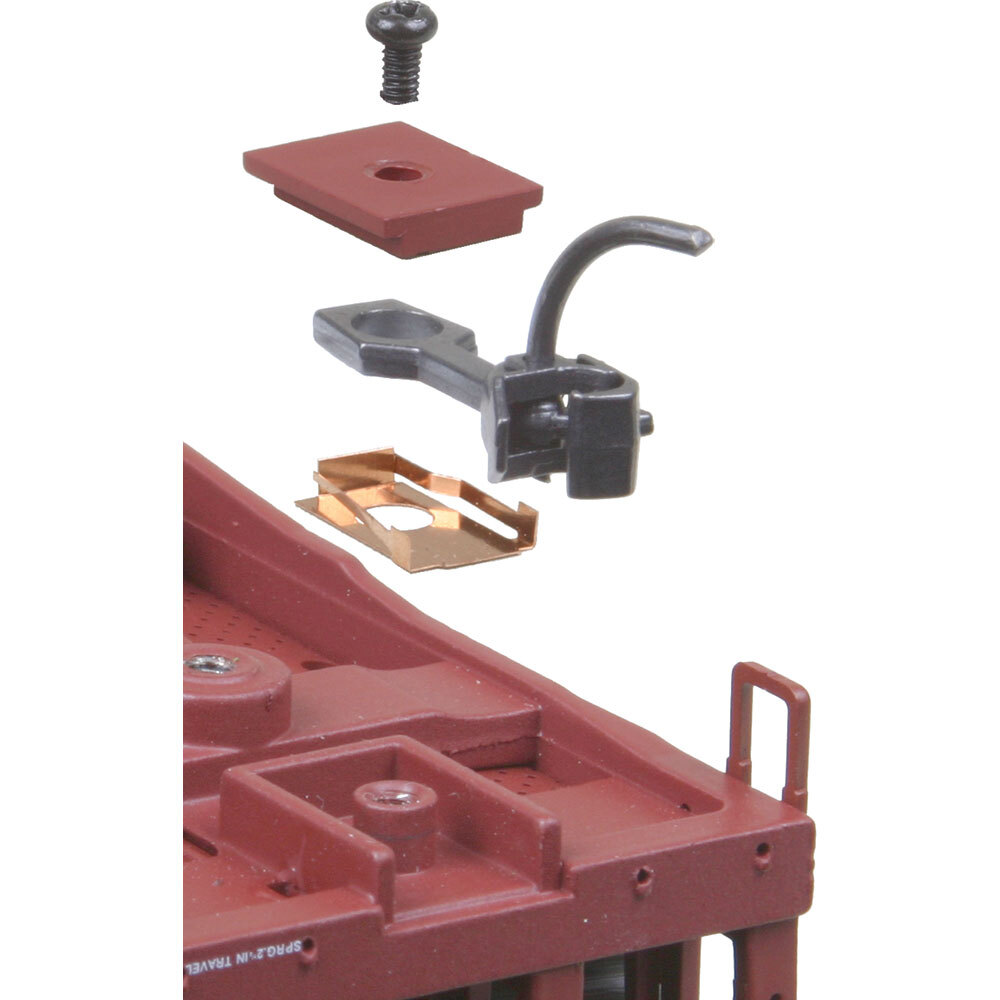

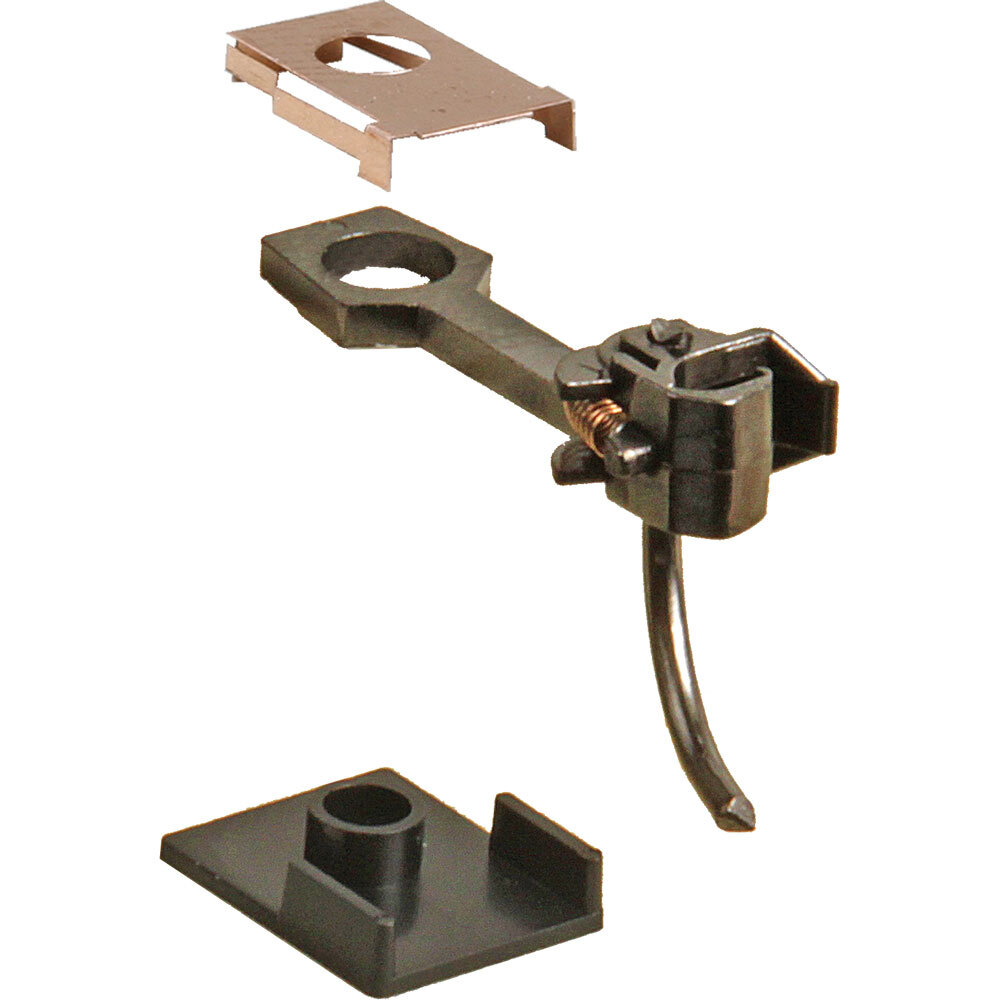

#213 Plastic Draft Gearboxes:

Material - Insulated Plastic
Dimensions - 25/64"L x 5/16"W x 3/32"H
Works With - NO.5®, #58, 20-Series and all Whisker® Couplers

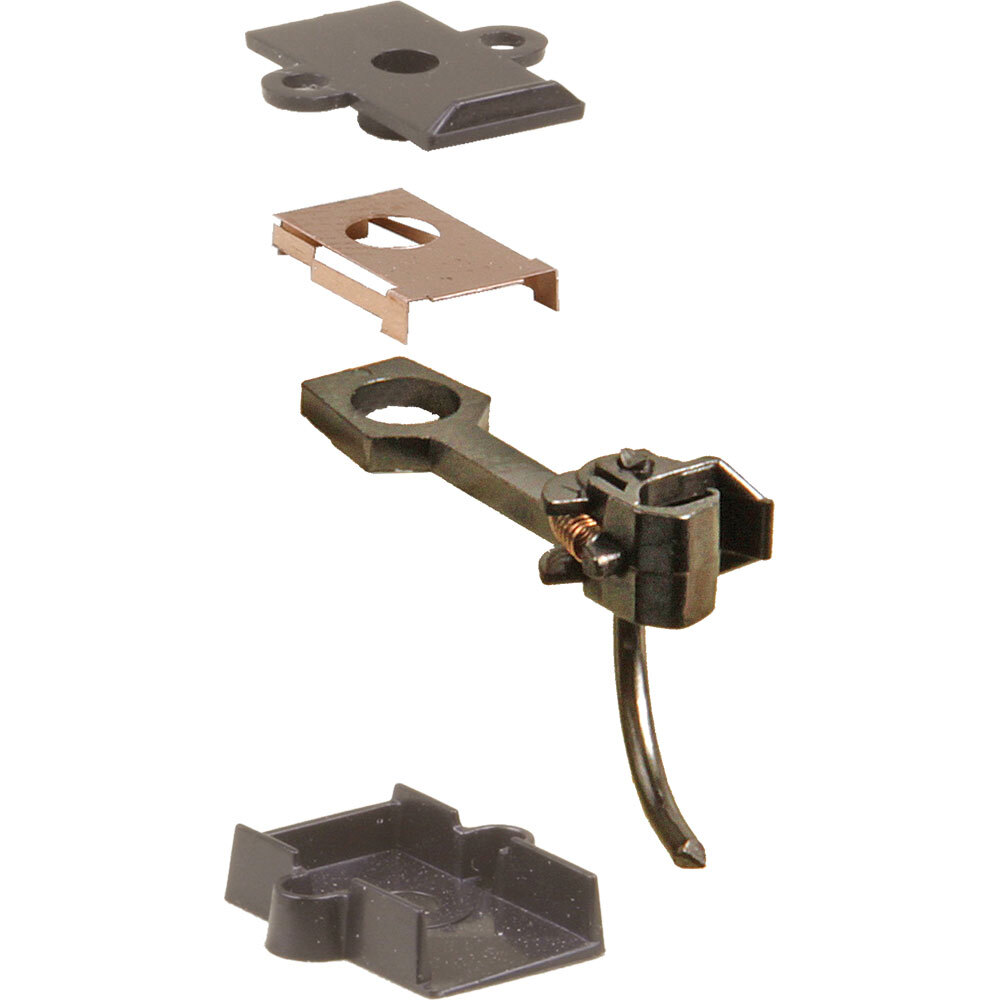

#232 Plastic Draft Gearboxes & Lids Features:

Material - Insulated Plastic
Dimensions - 29/64"L x 19/64"W x 7/64"H
Works With - NO.5®, #58, 20-Series and all Whisker® Couplers

#21 with a #212 Talgo Truck Adaptor. Mounting Specifications:

Centerline - 25/64"
Trip Pin Height - 1/32"

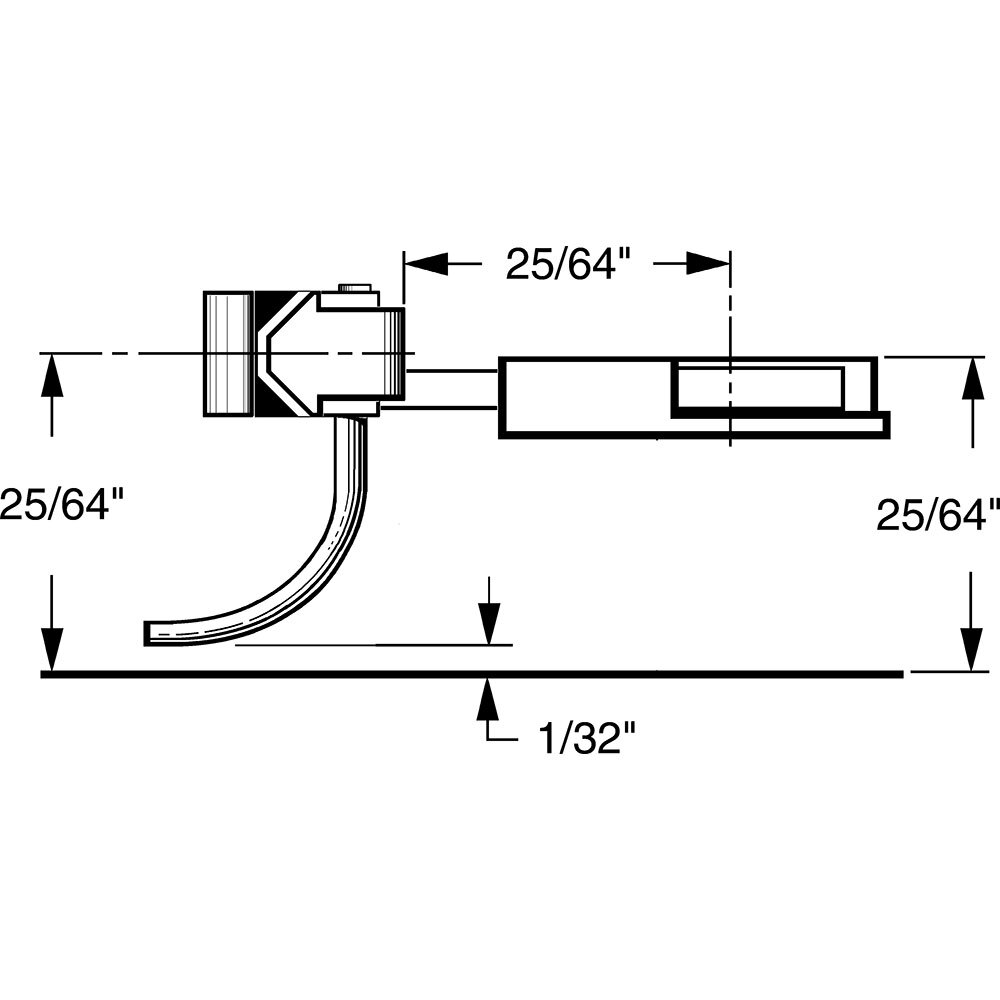

#21 in a #213 monted on bottom. Mounting Specifications:

Mounting Height - 25/64"
Centerline - 25/64"
Trip Pin Height - 1/32"
Center Hole - 2-56 Insulated Screwsare the most commonly used. (Screw length will vary)

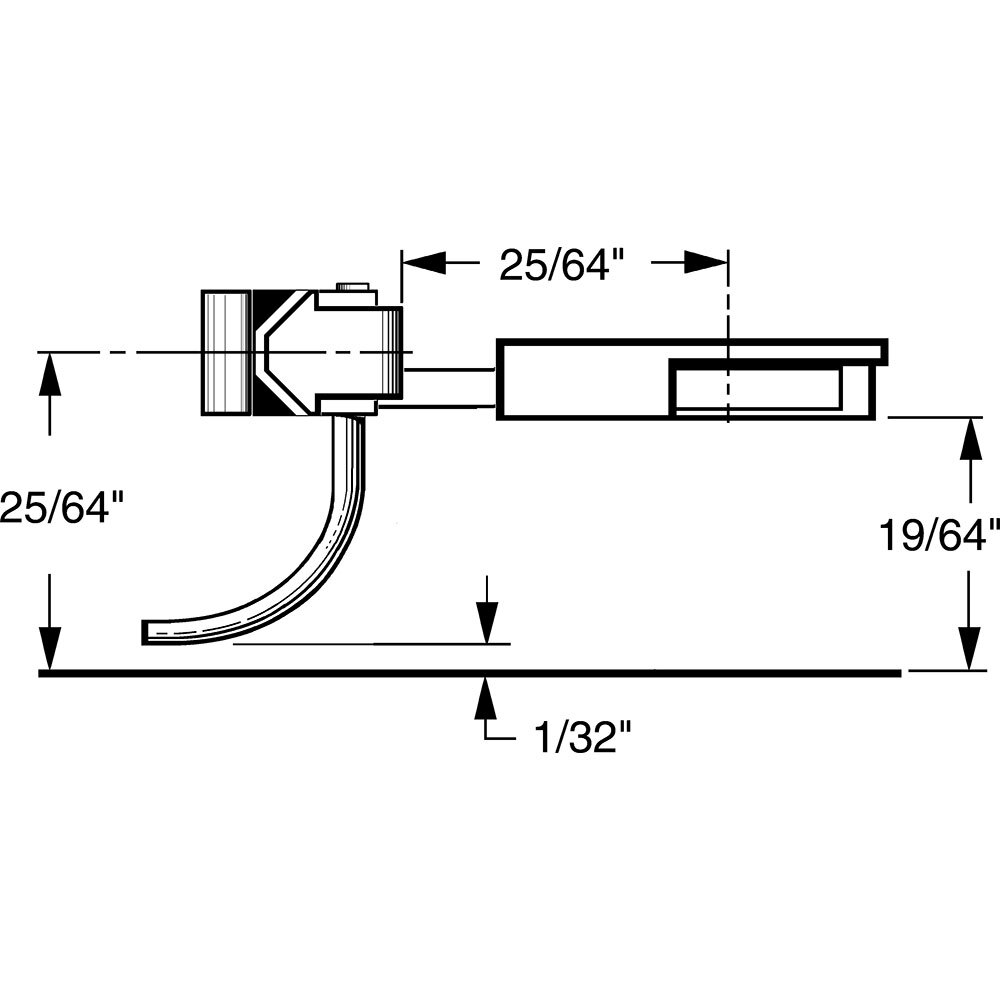

#21 in a #213 monted on top. Mounting Specifications:

Mounting Height - 19/64"
Centerline - 25/64"
Trip Pin Height - 1/32"
Center Hole - 2-56 Insulated Screwsare the most commonly used. (Screw length will vary)

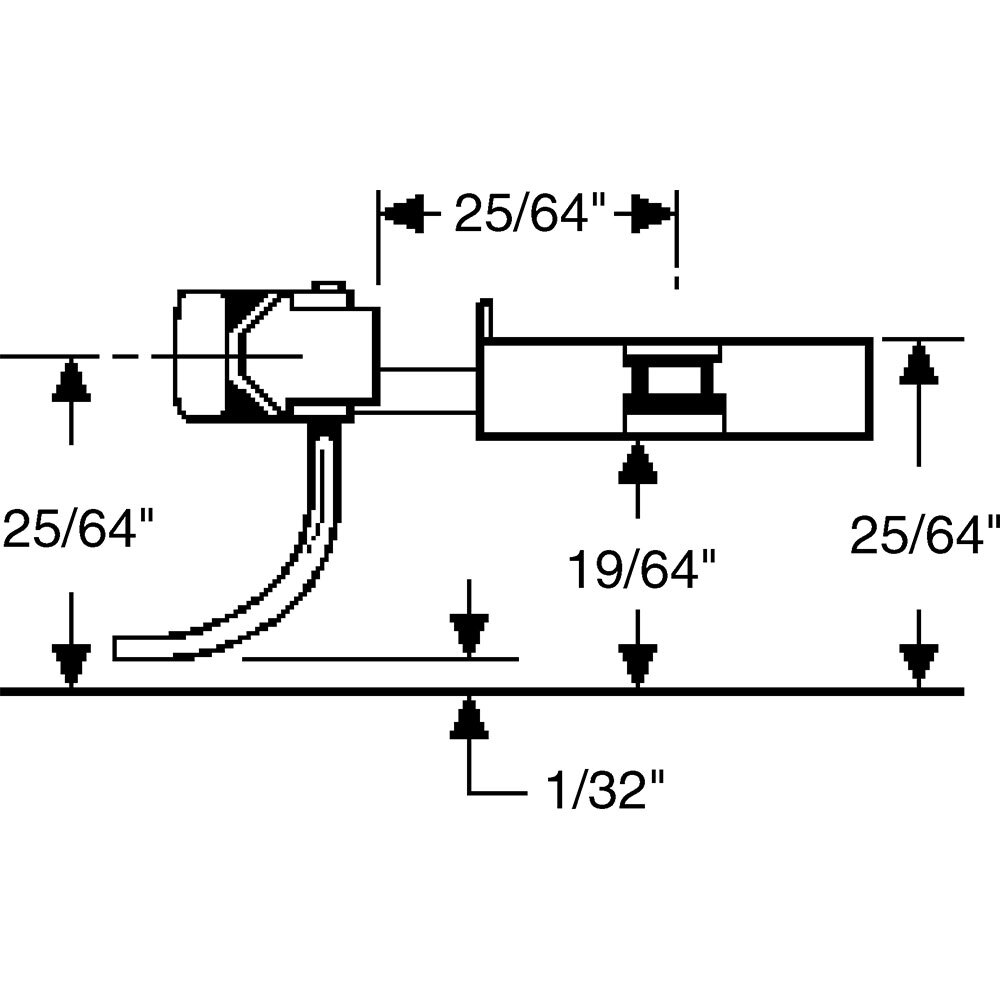

#21 in a #232 Mounting Specifications:

Mounting Height - 25/64"
Centerline - 25/64"
Trip Pin Height - 1/32"
Center Hole - 2-56 Insulated Screwsare the most commonly used. (Screw length will vary)
Side Holes - 0-48 Self-Tappingor0-80 Machine Screws. (Screw length will vary)

Specifications

Brand Kadee
