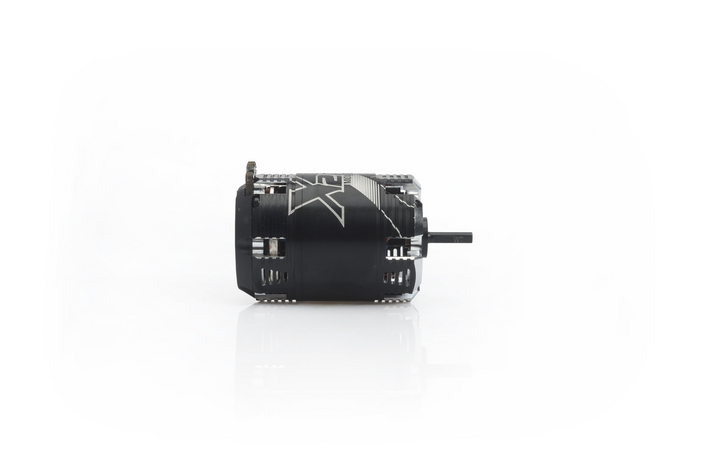

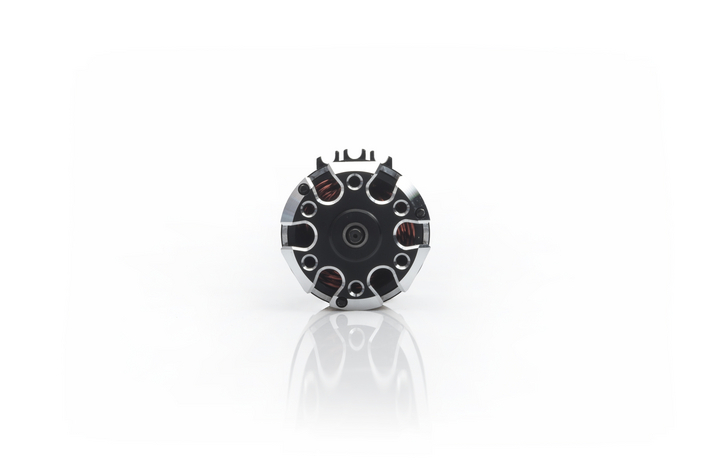

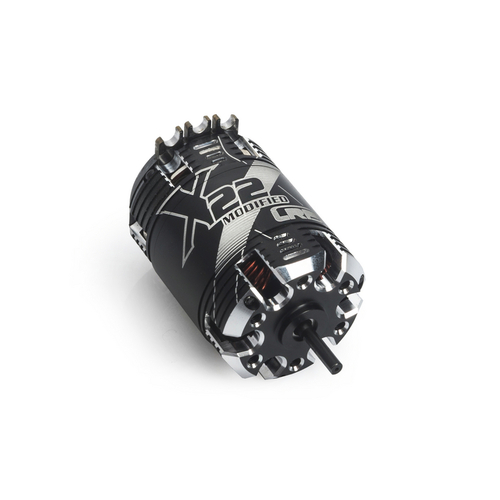

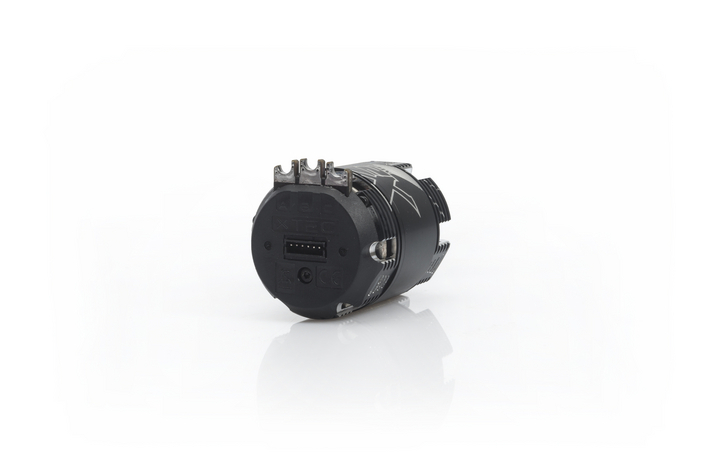

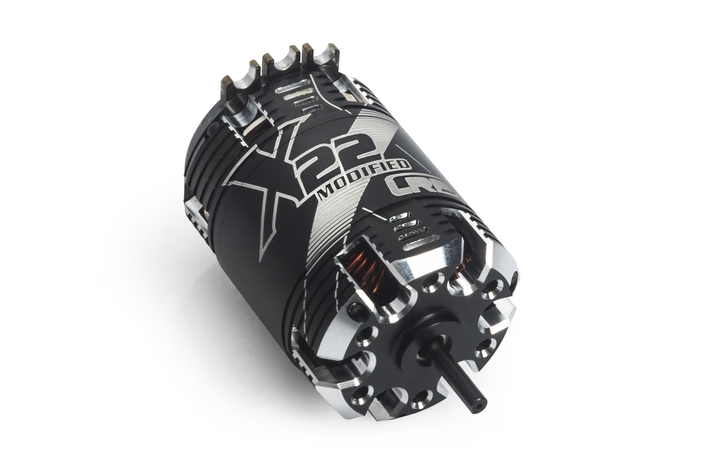

LRP X22 Modified 8.0T 540 Brushless Motor

LRP X22 Modified 8.0T 540 Brushless Motor

$159.00

Description

X22 MODIFIED 8.0T

The LRP X22 Modified brushless motor series is a new force in high-end motor line. Developed for hardest competition in 1:10 scale applications, its technology remains unique and is backed with tremendous racing success around the World. Its predecessor Vector X20 does not need special introduction by winning three IFMAR World championship titles and multiple European Championship,  ETS and National titles - both in On-road and Off-road racing.

When it comes to performance in terms of power, reliability and exceptional driving control, these motors are the best choice. With highest efficiency and maximum power in mind they are now furthermore improved and designed to stand out and meet every demanding expectations.

  • New Air Vent Design - Increased cooling surface and openings for maximum heat dissipation, air-flow and lightweight design
  • New modified specific timing range - 14.5°-34.5° timing range for smoother power delivery
  • Competition racing stack - Highest grade materials for most efficient current flux and improved driving feel
  • X22 rotor specification - Highest grade magnet material with new shaft preparation for maximum performance, strength and reliability
  • Military quality black anodizing
  • 2017 specification powerboard
  • IFMAR World Championship winning performance
  • New shaft with longer mounting surface
  • New optional aluminium endplate
  • Dual axis balanced rotor
  • Waterproof Precisensor System
  • Machined 7075-T6 housing
  • Optimised racing stack
  • Improved power delivery and efficiency

Specifications

  • Type: Brushless, sensored
  • Voltage input: 1S-2S LiPo
  • Winding: Star (Multistrand Copper Winding)
  • Motor diameter: 35.9mm
  • Motor length: 50.8mm
  • Weight: 159-164g
  • Rotor diameter: 12.5mm
Brand LRP
