NCE Decoder D13srp NCE-102

NCE Decoder D13srp NCE-102

$54.99

Description

Description

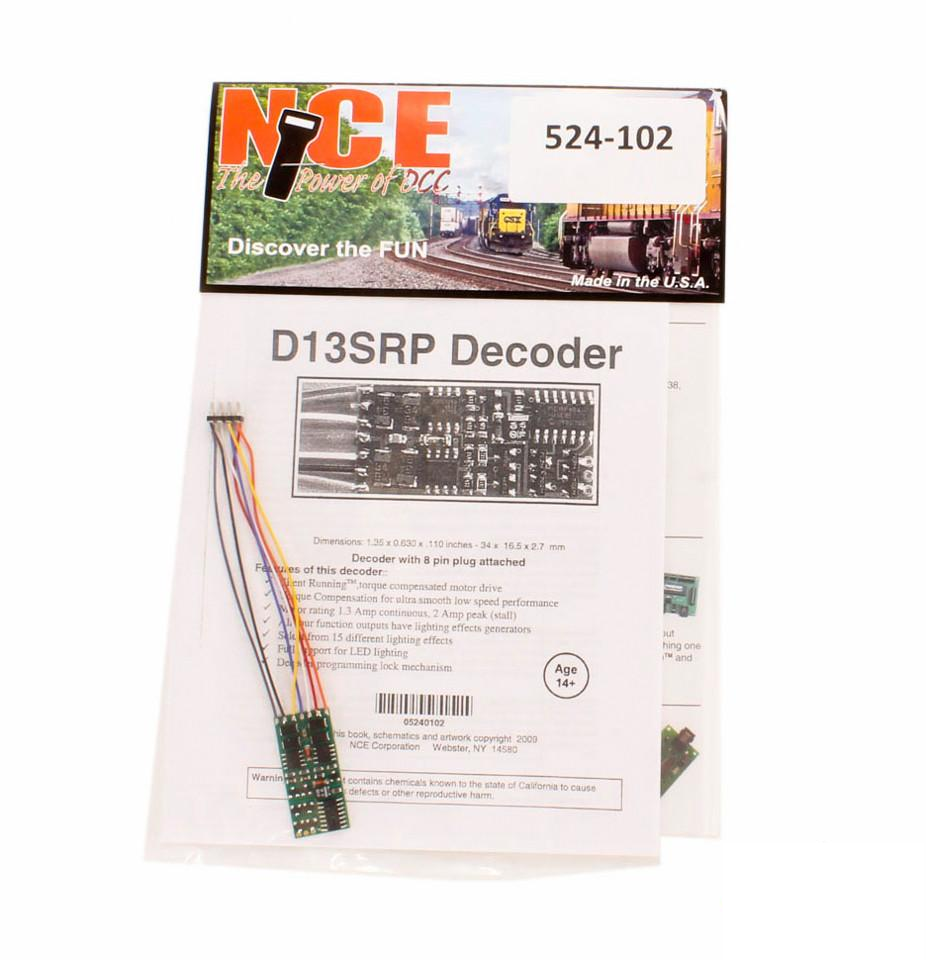

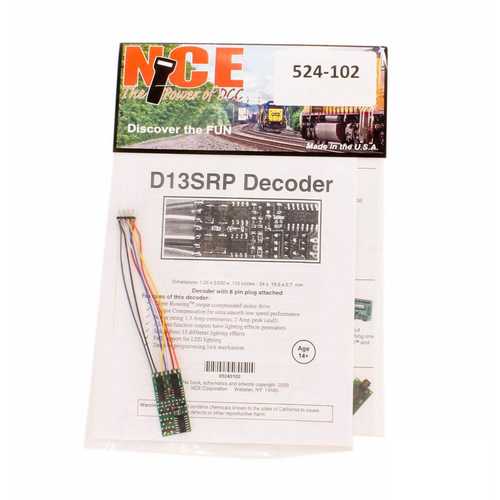

NCE HO scale EPF (extended packet format) plug-in decoder (version 3.5) with 8-pin plug and wiring harness. 4 functions and 15 different lighting effects. Easy to install. Instructions included. This decoder is designed for HO scale DCC Ready locomotives equipped with an NMRA 8-pin DCC socket

Features:

  • Silent Running motor drive
  • Torque Compensation for ultra smooth low speed performance
  • Programmable Start, Mid and Maximum speed works for all speed modes
  • Motor rating 1.3 Amp continuous, 2.0 Amp peak (stall)
  • All 4 function outputs have lighting effects generators
  • Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)
  • Function outputs can be mapped to different functions
  • 2 or 4-digit addressing
  • Uploadable speed table interpolated to 128 speed steps
  • 28 and 128 speed mode operation
  • Support for all forms of DCC programming
  • Decoder programming lock mechanism
  • Brake on DC feature assists automatic train control
  • Dimensions: 34.0mm x 16.5mm x 2.7mm (1.35 x .63" x .11")
"

Specifications

Brand NCE DCC
