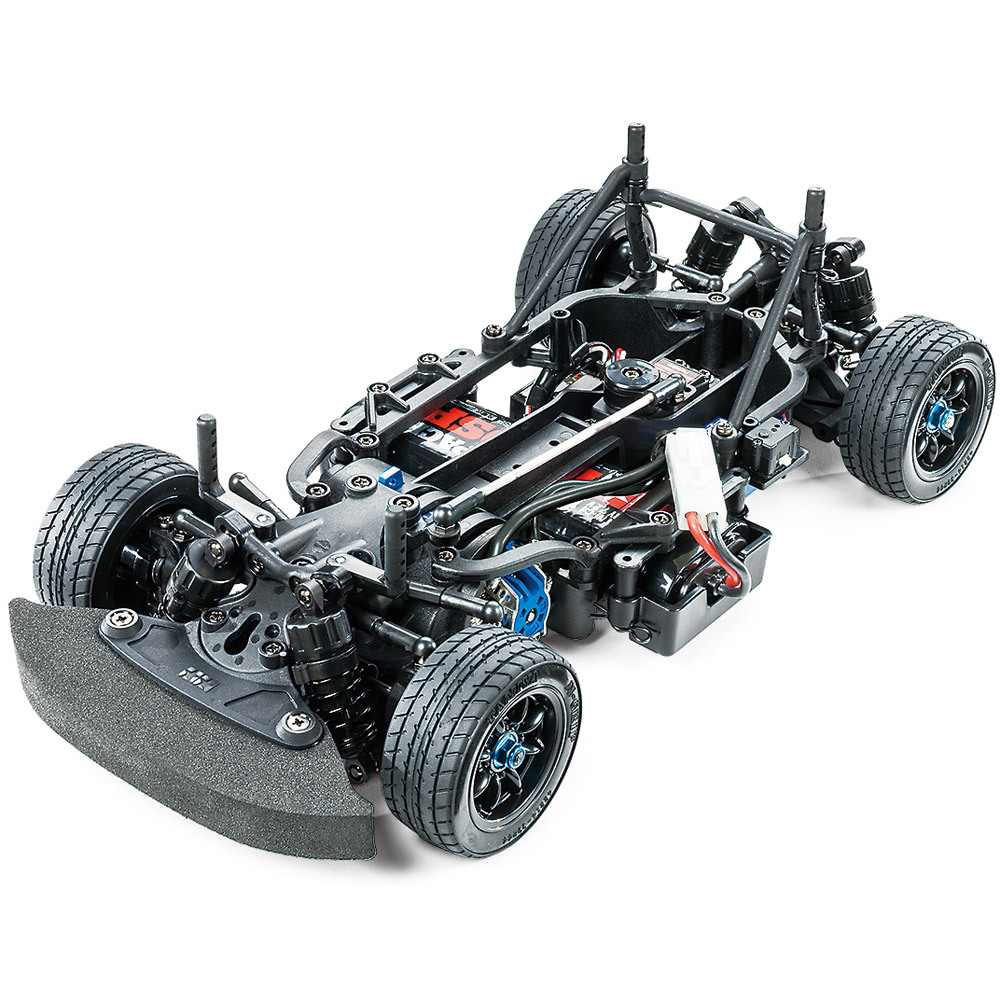

Tamiya 1/10 M-07 Concept Chassis Kit 58647

Tamiya 1/10 M-07 Concept Chassis Kit 58647

$269.99

Description

An M Revolution!
This high-performance front-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with lower deck and upper frame sections. It offers a responsive drive and fuss-free maintenance of parts such as the easy-access differential, which can be removed from the underside with minimal disassembly. CVA oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, gear differential unit and universal drive shafts. It can be assembled with a 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.

Featured Components
  • Monocoque frame chassis (with detachable lower section)
  • Long suspension arms
  • CVA oil dampers
  • Full ball bearings
  • Gear differential unit
  • Universal drive shafts
  • Hi-torque servo saver

Long arms and steering linkage components optimize damper leverage ratio. The chassis' camber can also be adjusted.

Adjust the M-07 Concept's rear toe angle via the insertion of spacers where the suspension mount parts are attached.

One of the key points is the easy-access differential unit, which can be removed and changed from the underside.

Enjoy silky-smooth power from your chassis thanks to full ball bearings, universal drive shafts and gear differential unit.

  • Length: 332mm (including bumper)
  • Width: 164mm
  • Wheelbase: 225mm or 239mm (Selectable)
  • Monocoque Frame
  • Front-Midship Motor, Front-Wheel Drive
  • Gear Differential
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Independent Double Wishbone Suspension
  • CVA Oil Dampers
  • Gear Ratio 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)

Specifications

Brand Tamiya
