Tamiya 1/10 Neo Fighter Buggy (DT-03) Kit (NO ESC)

A Fighter, and a Winner!

The 2WD buggy The Frog will be a model familiar to many who joined in the first R/C boom of the 1980s. Now, it serves as the inspiration for this new model, the Neo Fighter Buggy. At home both on- and off-road, this 2WD buggy features a lightweight yet tough monocoque frame that protects vital equipment such as the servo and battery from damage; its long form also offers great stability. Coupled with friction dampers and 4-wheel double wishbone suspension, it means the Neo Fighter Buggy performs well even on difficult off-road surfaces. Such a combination of hassle-free assembly and high-performance, light-on-its-feet handling is sure to recommend this model not only to fans of the past, but also to the next generation of R/C racers!

DT-03 Chassis: Great Fun, Minimum Fuss

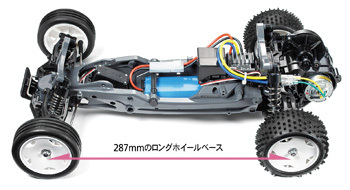

The stylish slimline form of this chassis stems from its lightweight yet durable monocoque frame, which features a longitudinally-positioned battery and the R/C equipment along the centerline for excellent balance. The combination of a long 287mm wheelbase and 4-wheel double wishbone suspension married to friction dampers with long arms, allows the model to handle with stability on poor surfaces. Ribbed front and square spike rear tires provide ample grip, and the rear-positioned gearbox is sealed to protect from dust and dirt, with the built-in differential gear offering smooth cornering.

Specifications

• Length: 400mm, Width: 248mm, Height: 132mm
• Wheelbase: 287mm
• Tread (Front/ Rear): 221mm/208mm
• Tire Width/Diameter: 27/80mm (Front), 41/86mm (Rear)
• Monocoque Frame
• Rear Wheel 2WD
• 3-Bevel Differentials
• 2-Piece Steering Tie-Rod
• Front & Rear Double Wishbone Suspension
• Gear Ratio = 9.28:1
• Type 540 Motor
• Requires electronic speed controller (sold separately)

Separately Required Items

• 2-Channel R/C Unit with ESC
• Battery Pack & Charger
• R6/AA/UM3 batteries for transmitter

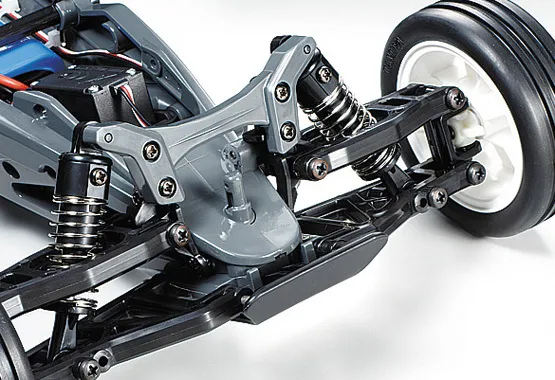

Front suspension arms are attached at a 25-degree angle to improve off-road ability.

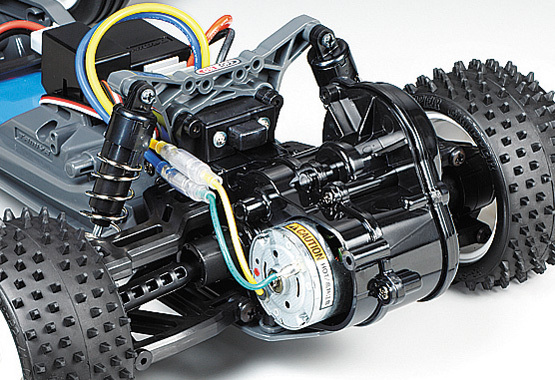

Rear gearbox is sealed to protect from dust and dirt, and the built-in differential provides smooth cornering.

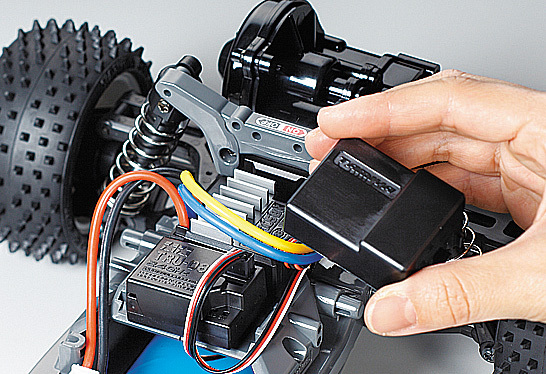

Dust cover protects the model's R/C equipment from sand and dust, helping prevent running trouble.

Paint the tough polycarbonate body and apply markings as you like to create your own cool racer!
