Tamiya 1/10 RC 4WD Toyota GR Supra (TT02 Chassis)

A Real Beauty

Upon its global debut in January 2019, the TOYOTA GR Supra created a worldwide buzz. Now, it appears as an R/C model assembly kit. The sensuous long nose, short deck form with striking double-bubble roof is recreated in lightweight and durable polycarbonate, with separate polycarbonate front and rear light cases, plus molded plastic side mirrors. Stickers are included in the kit to depict details such as wipers and emblems, and the car is based upon the reliable and beginner-friendly TT-02 chasssis.

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. 10-spoke wheels feature rim stickers and are paired with tread-patterned racing radial tires.

Specifications

• Length: 457mm, Width: 188mm, Height: 133mm
• Wheelbase: 257mm
• Tire Width/Diameter: 26/66mm (Front & Rear)
• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 Motor
• Electronic Speed Controller (ESC) is sold separately.

Separately Required Items

• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

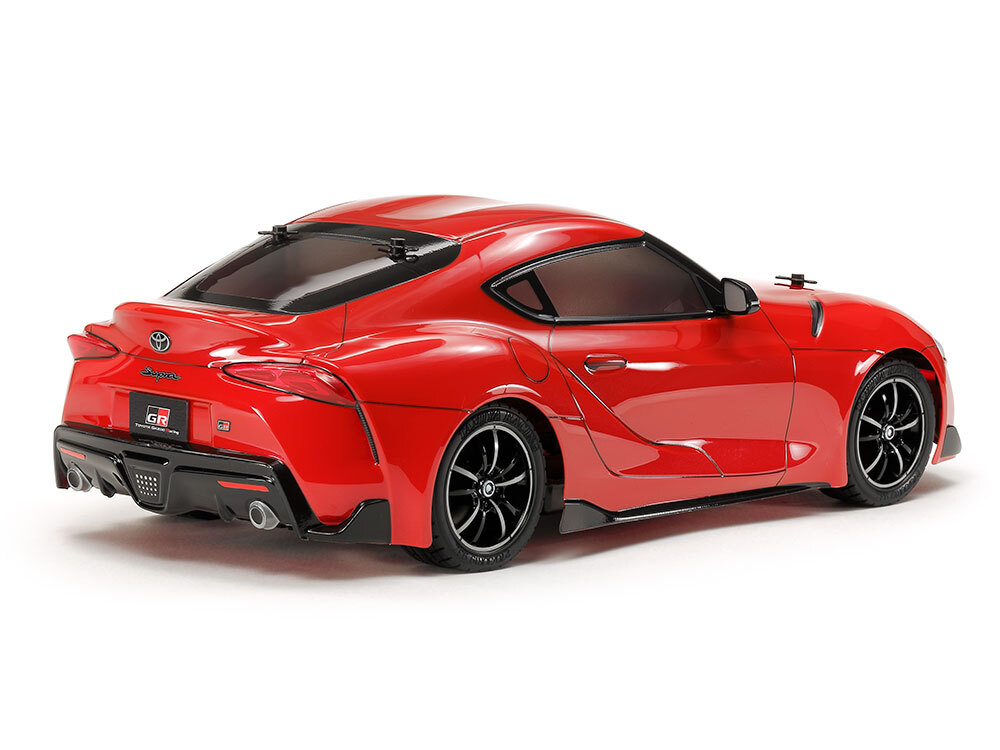

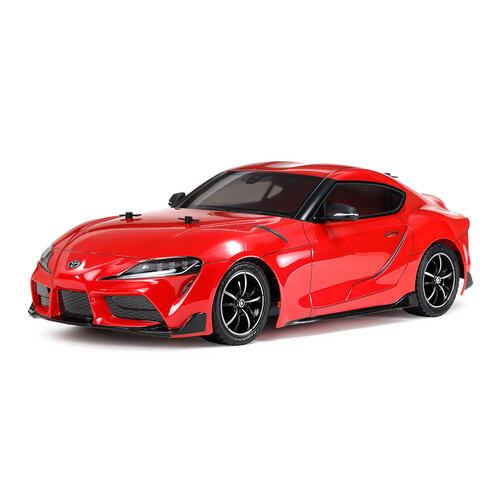

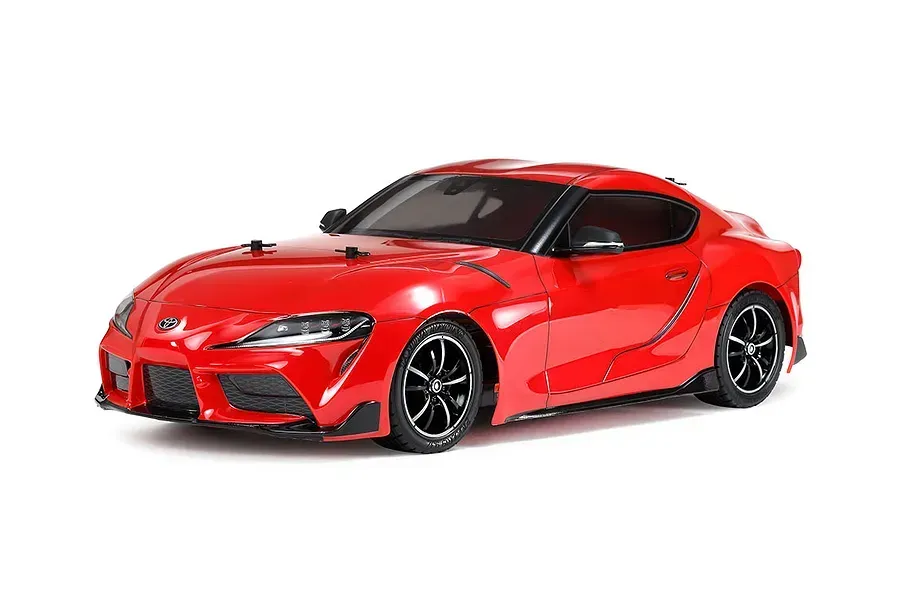

★The dynamic, sensuous lines of this stunning car are captured realistically by the model's polycarbonate body.

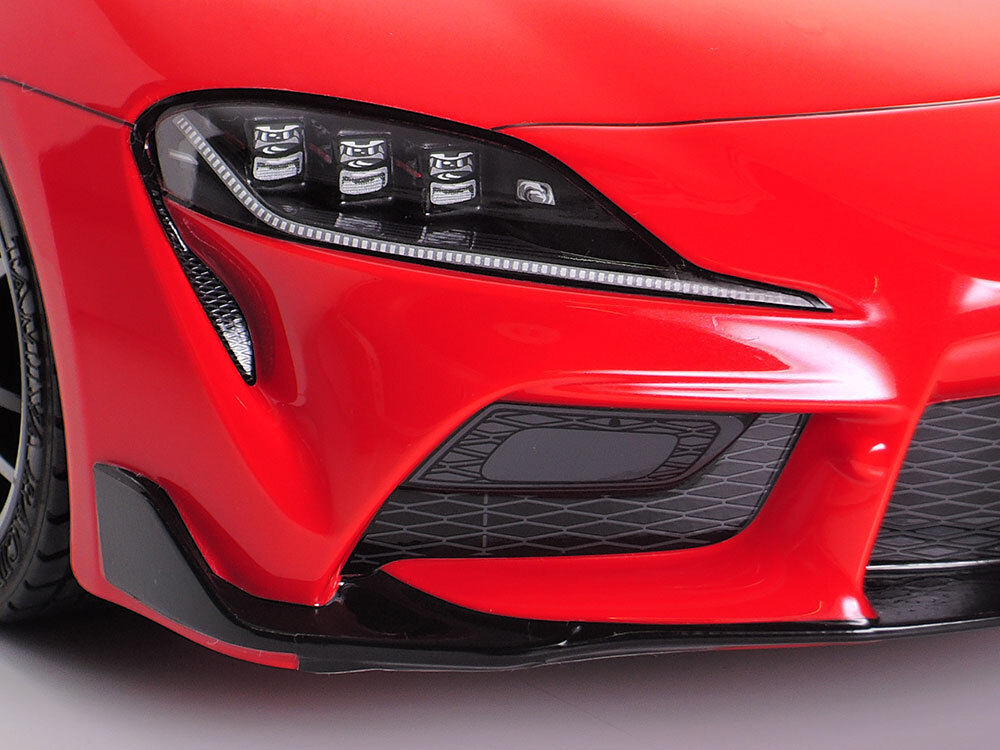

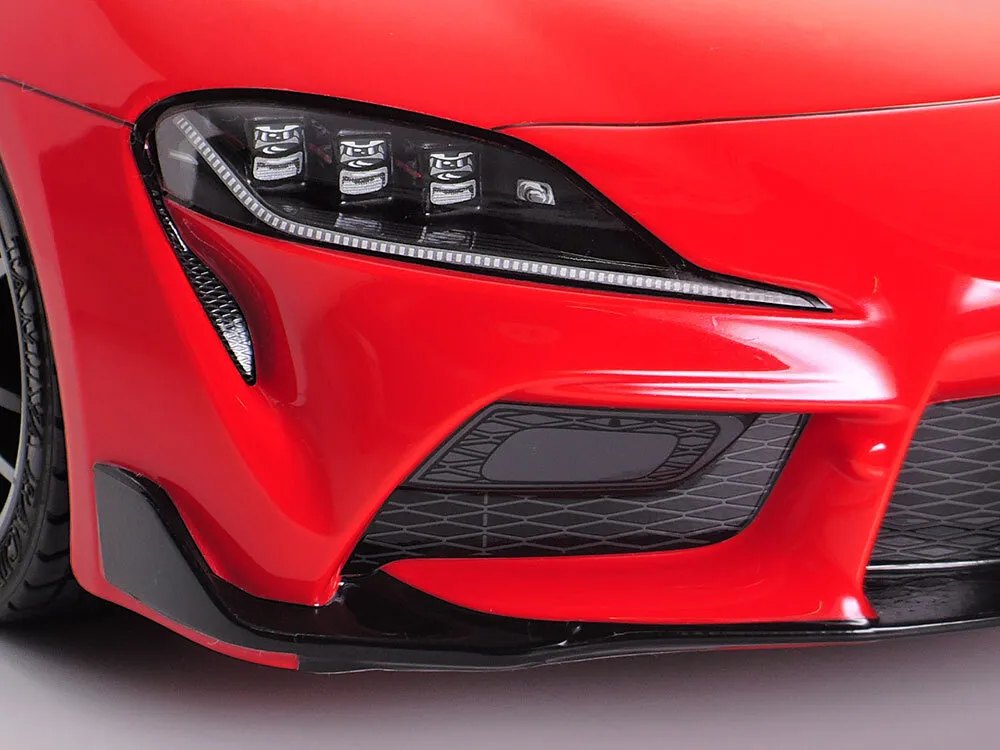

★Separate polycarbonate light cases are combined with stickers to give the headlights a truly authentic look.

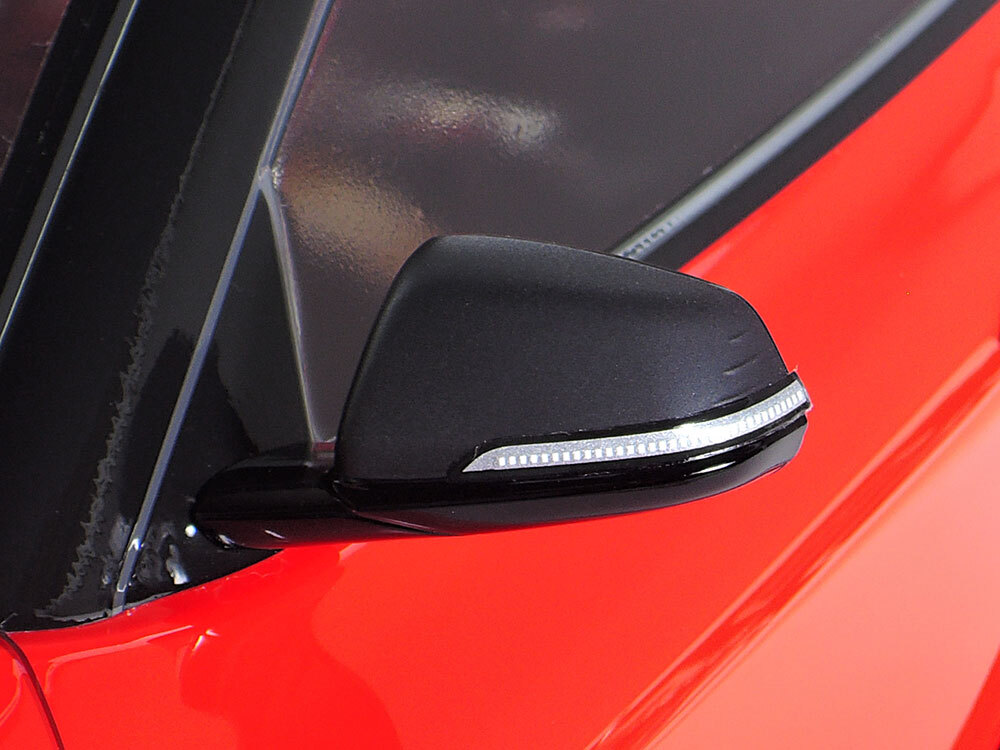

★Side mirrors are painted in Black and Semi-Gloss Black, with sticker applied. Even the triple ridges are depicted!

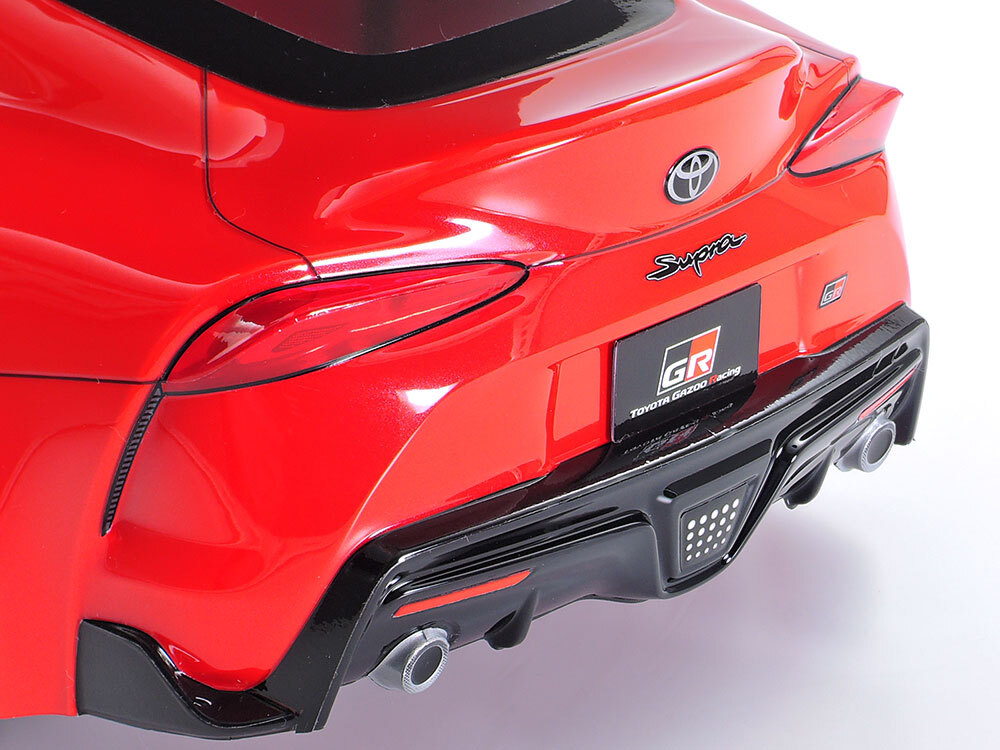

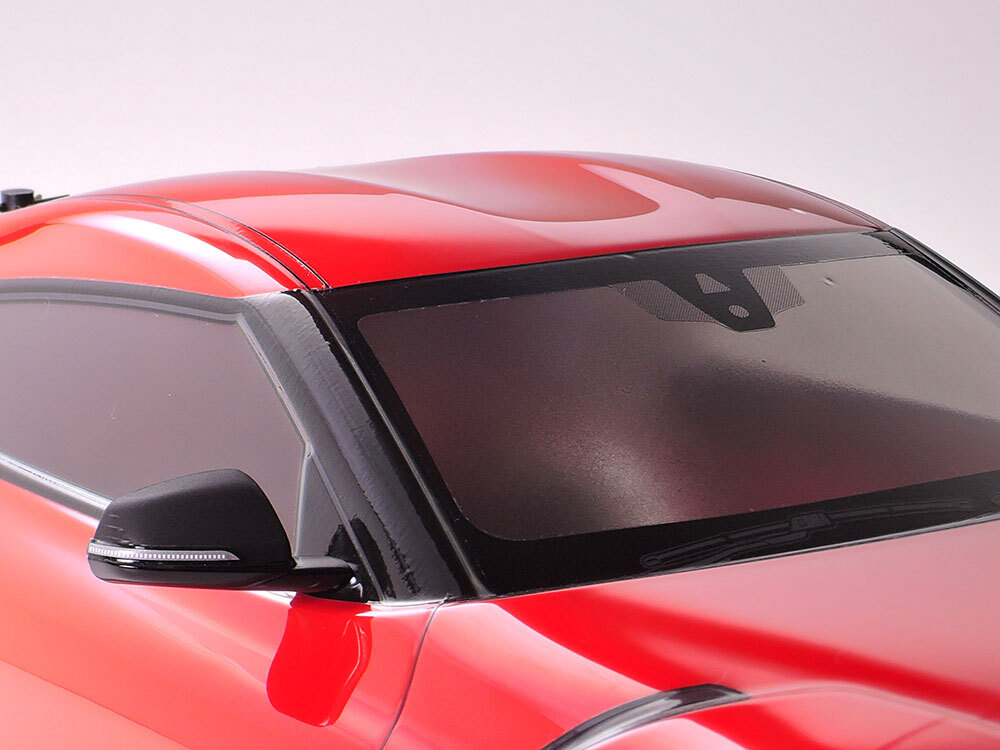

★Left: The "double bubble" roof is perhaps the most striking design feature, and is of course depicted in style. ★Right: Clear red sections allow inspection of taillight detail. The rear duck tail, diffuser and more are captured.

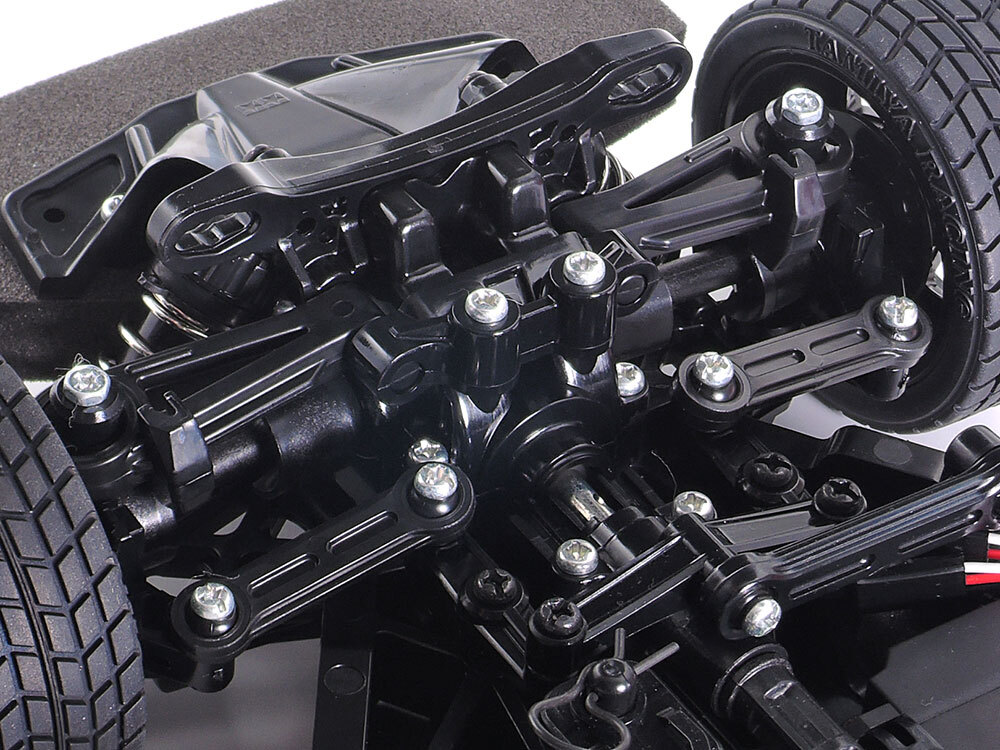

★Resin ball links in the steering linkage joints make for smooth, comfortable motion.

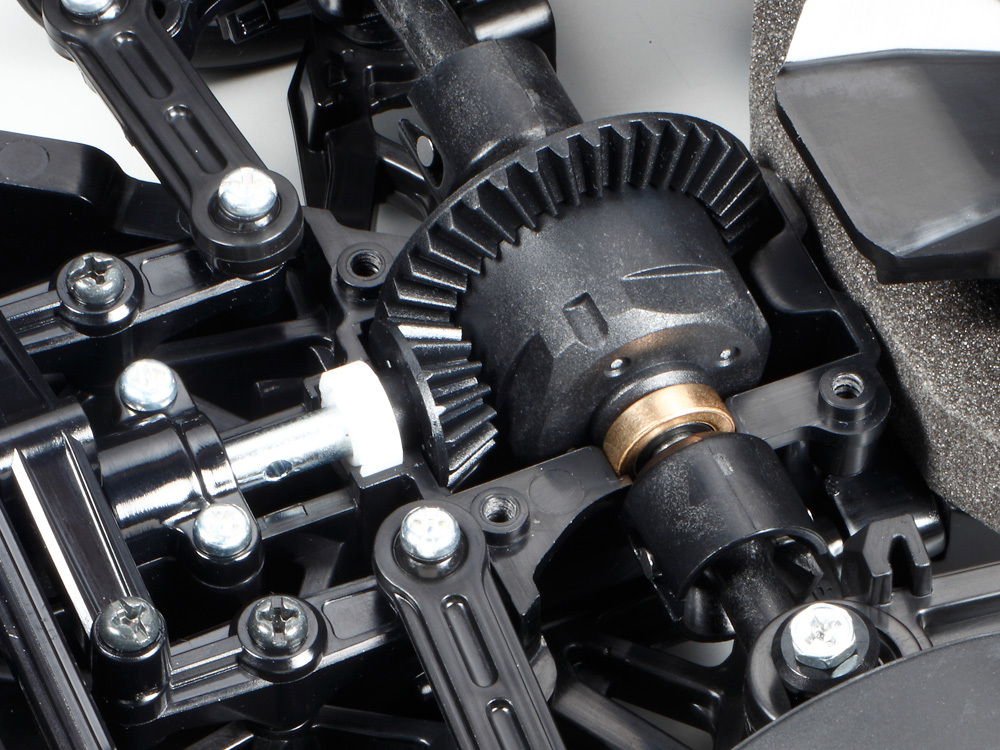

★Gearbox covers can be removed simply with the loosening of screws on the frame.

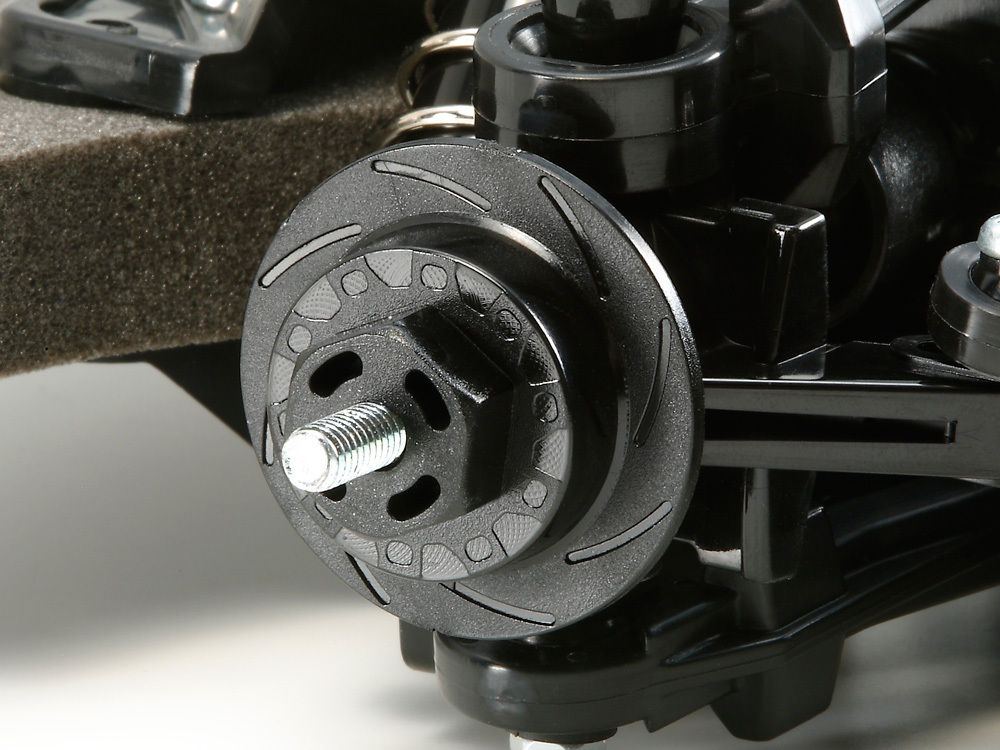

★Stylish wheel hubs are designed to look like brake discs, giving your car another layer of realism.

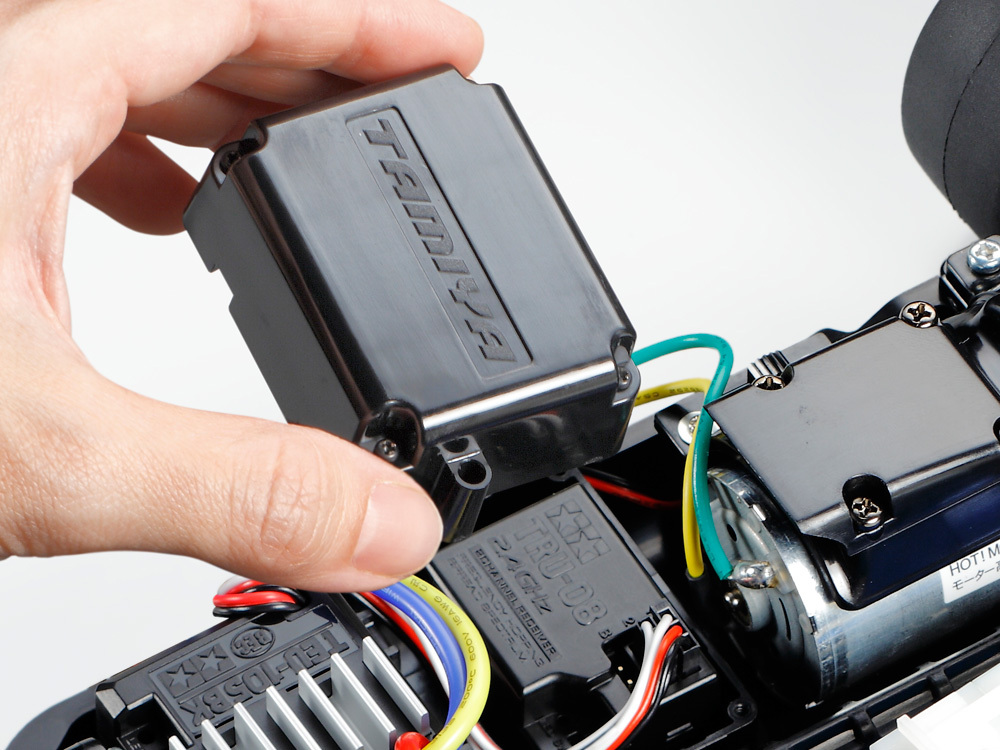

★Left: A case is included to keep the all-important receiver protected from dust and dirt. ★Right: The motor cover includes removable cooling duct (not attached in above image).
