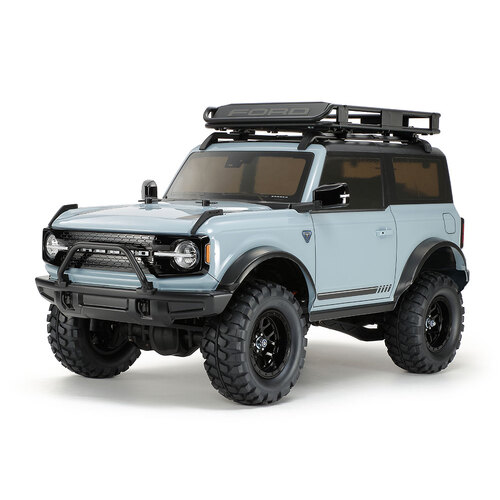

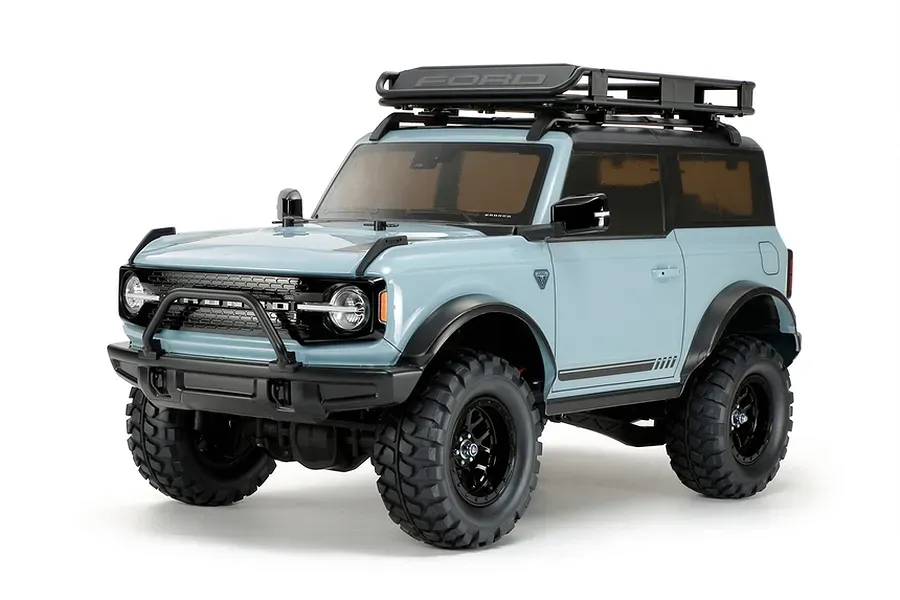

Tamiya 1/10 RC Ford Bronco 2021 (Blue-Gray Painted Body) (CC-02 Chassis)

Mine's a Bronco!

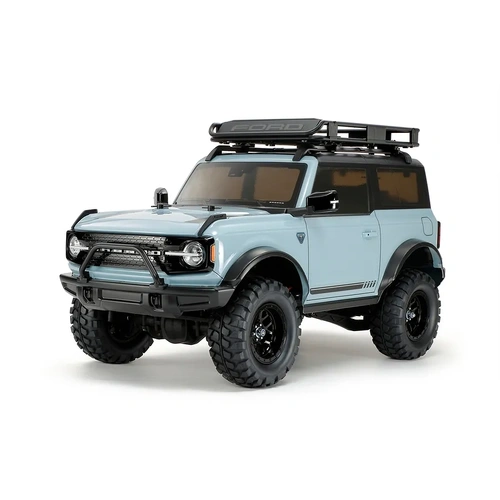

This R/C model assembly kit depicts a 2-door model of the Ford Bronco 2021, and features a realistic polycarbonate body that artfully depicts the car, with classic Bronco features such as the rounded headlights, oblong taillights and front fender-top indentations. It is pre-painted for convenience, and also pre-cut, with body mount holes already made. Also included are separate parts for recreating a roof rack, the front grille, mirrors, spare tire covers and more. Front and rear light cases are plated parts, and can be fitted with separately sold LEDs.

CC-02 Chassis - Off Road, Evolved

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with black twelve-spoke wheels and grippy block pattern tires.

Specifications

• Length: 447mm, width: 204mm, height: 233mm
• Wheelbase: 252mm
• Tread: 164mm (front), 167mm (rear)
• Tire width/diameter: 36/94mm (front & rear)
• Ladder frame
• Longitudinal motor, shaft-driven 4WD
• 3-bevel differential gears
• 4-link rigid suspension (front & rear)
• Gear ratio = 17.33:1 (using kit-standard 16T pinion)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately.

Separately Required Items

• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

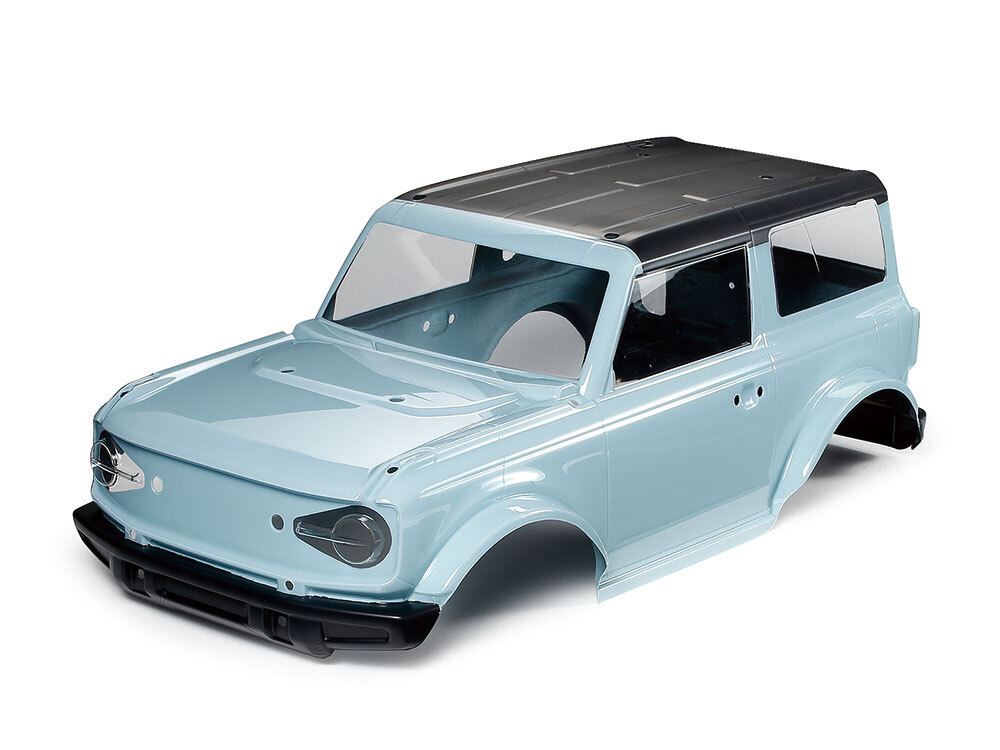

★The body comes pre-painted in blue-gray and flat black, pre-cut and with body mount holes already made.

★The stylish form with firm Bronco roots is accurately captured in polycarbonate.

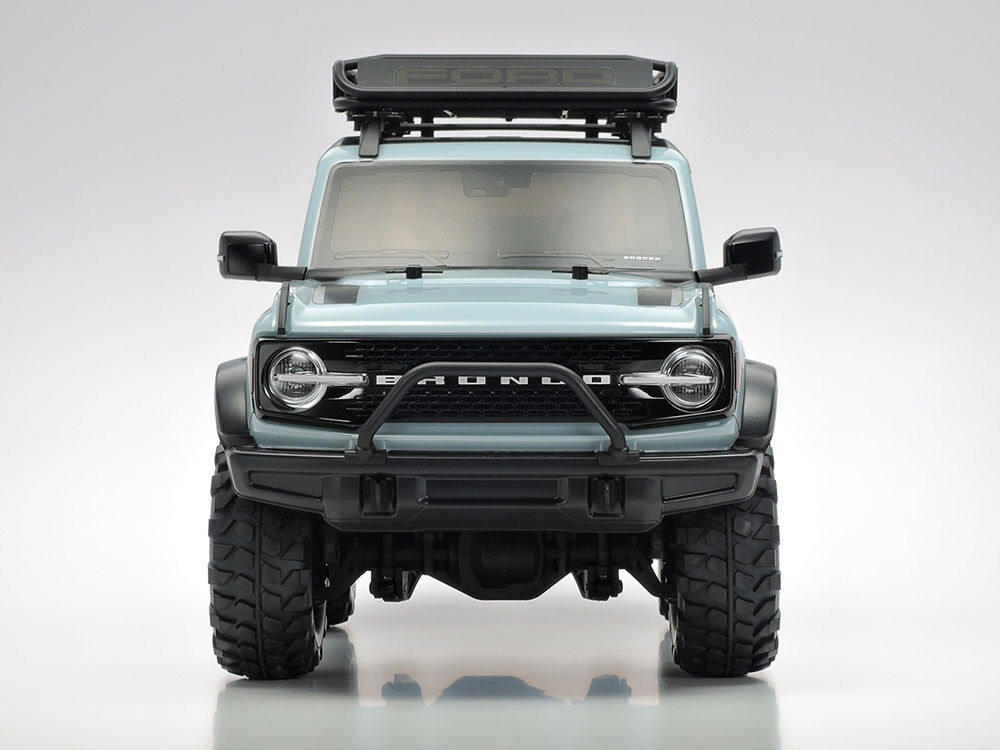

★The front grille is a separately molded part and features accurate renderings of the rounded headlights.

★Dedicated, separately molded plastic parts are used to depict the Bronco's boxy side mirror designs.

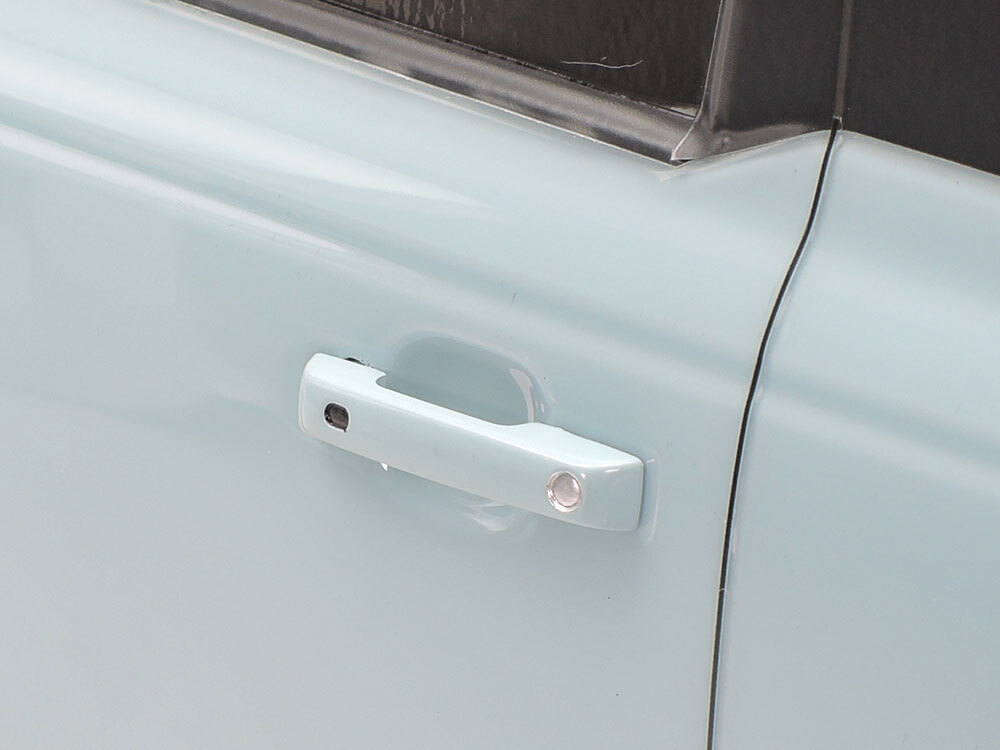

★Separately molded components to recreate door handles give the model another layer of realism.

★The molded plastic roof rack will make sure that your Bronco looks the part off-road!

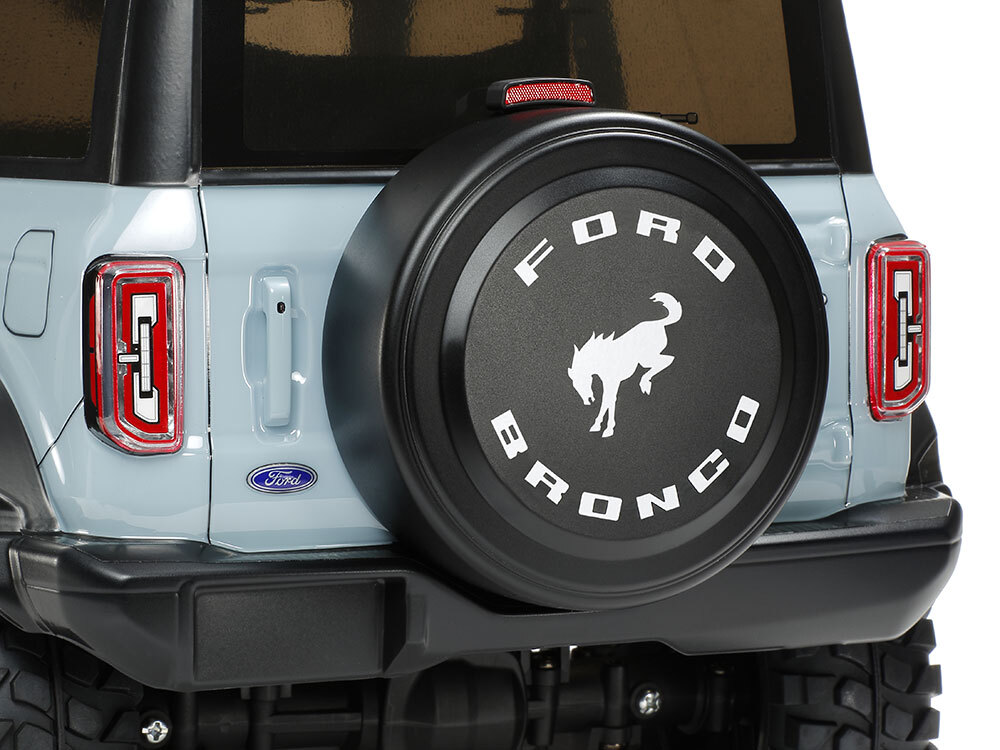

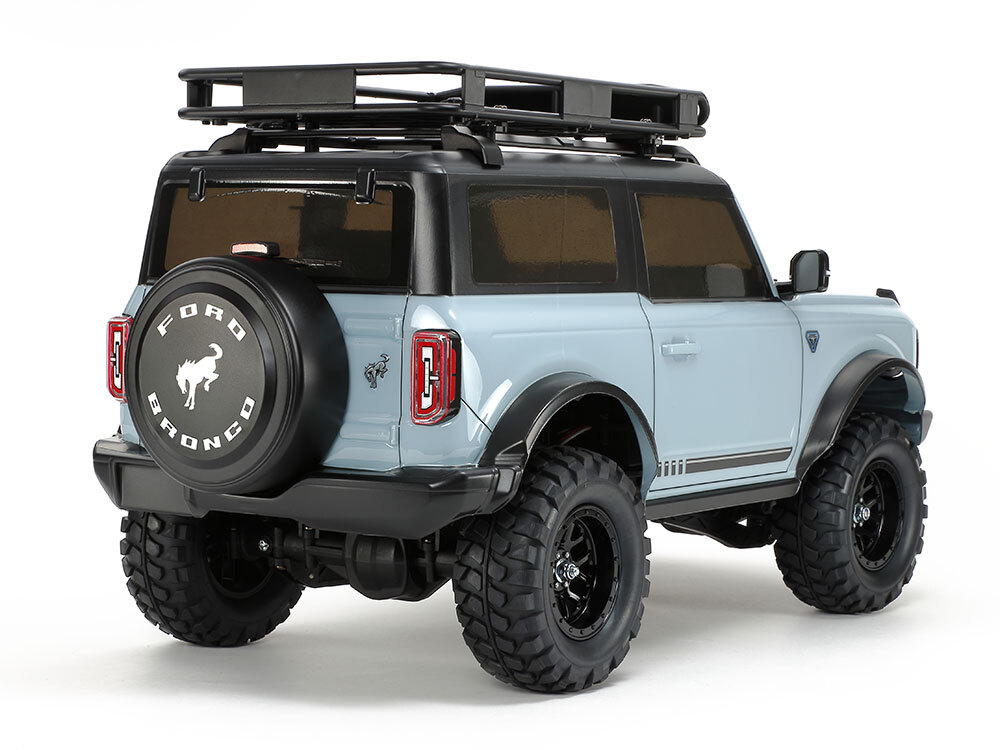

★The tire cover can be decorated with the included stickers. Taillight shapes also catch the eye.

★Twelve-spoke wheels are molded in black for an authentic look, and are paired in this kit with block pattern tires.

★This image shows off the model's plentiful ground clearance, which helps it take on tough off-road obstacles.

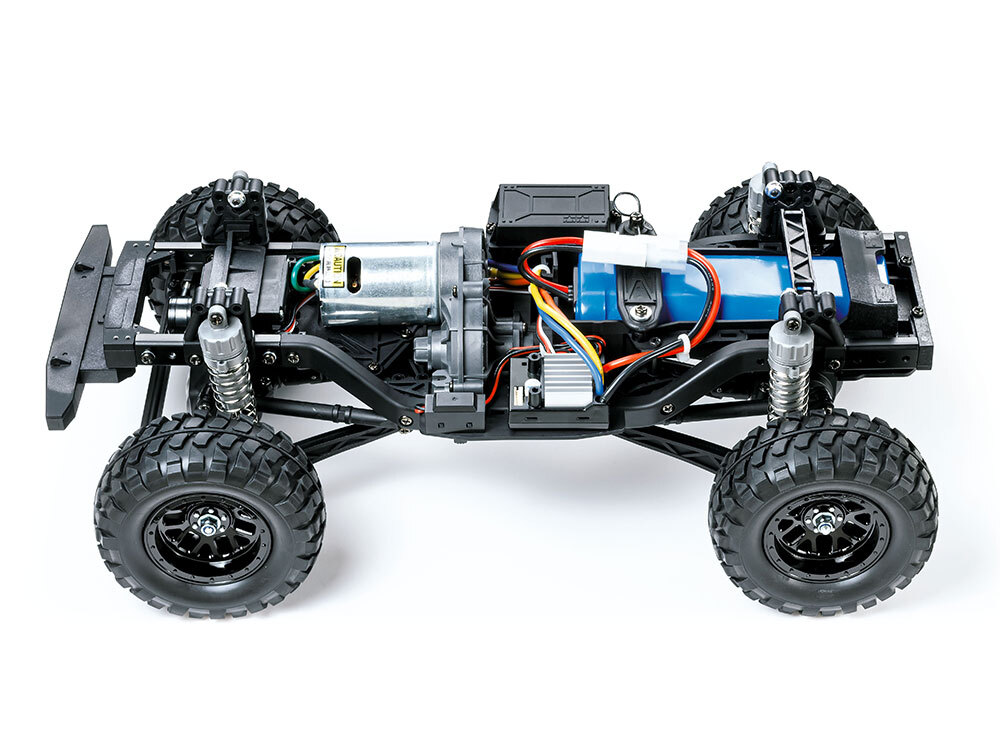

★Left: The ladder frame is modeled upon those employed by full-size cars, and offers excellent rigidity on this 1/10 scale vehicle. ★Right: The motor is mounted in the chassis front-middle; power goes via gearbox and propeller shafts to front and rear axles.

★Left: Both front and rear ends of the CC-02 chassis utilize 4-link rigid setups with shock absorption provided by CVA oil dampers. ★Right: Axle housings are molded in reinforced plastic, and house 3-bevel differentials. They can be locked when running on lower-grip surfaces.
