Tamiya 1/10 RC McLaren Senna (TT-02 Chassis)

Exclusive Super Car

Unleashed on the world at the 2018 Geneva International Motor Show, this super car bears the name of legendary racer Ayrton Senna. Its body features extensive carbon fiber sections, and is designed for impeccable aerodynamics and cooling. Power is provided by an 800ps 4-liter V8 twin turbo engine. With only 500 produced, the McLaren Senna was - and still is - hot property indeed. This assembly kit creates a model depicting the car, with a polycarbonate body capturing its enticing lines in style.

TT-02: Adaptable, balanced shaft driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Dark gun metal color 10-spoke wheels use tread patterned semi-pneumatic tires.

Specifications

• Length: 466mm, width: 195mm, height: 118mm
• Wheelbase: 257mm
• Tire width/diameter: 27/66mm (front & rear)
• Bathtub-type frame
• Shaft-driven 4WD
• Front/rear 4-bevel plastic differentials
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• Front/rear friction dampers
• Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
• Type 540 motor
• Electronic Speed Controller (ESC) is sold separately.

Separately Required Items

• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

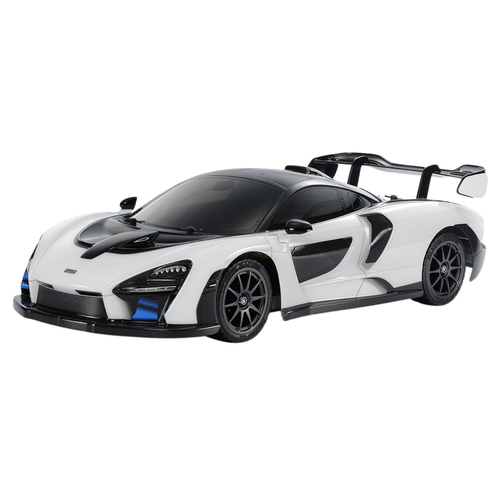

★The sleek, powerful silhouette is captured artfully by the kit's polycarbonate body.

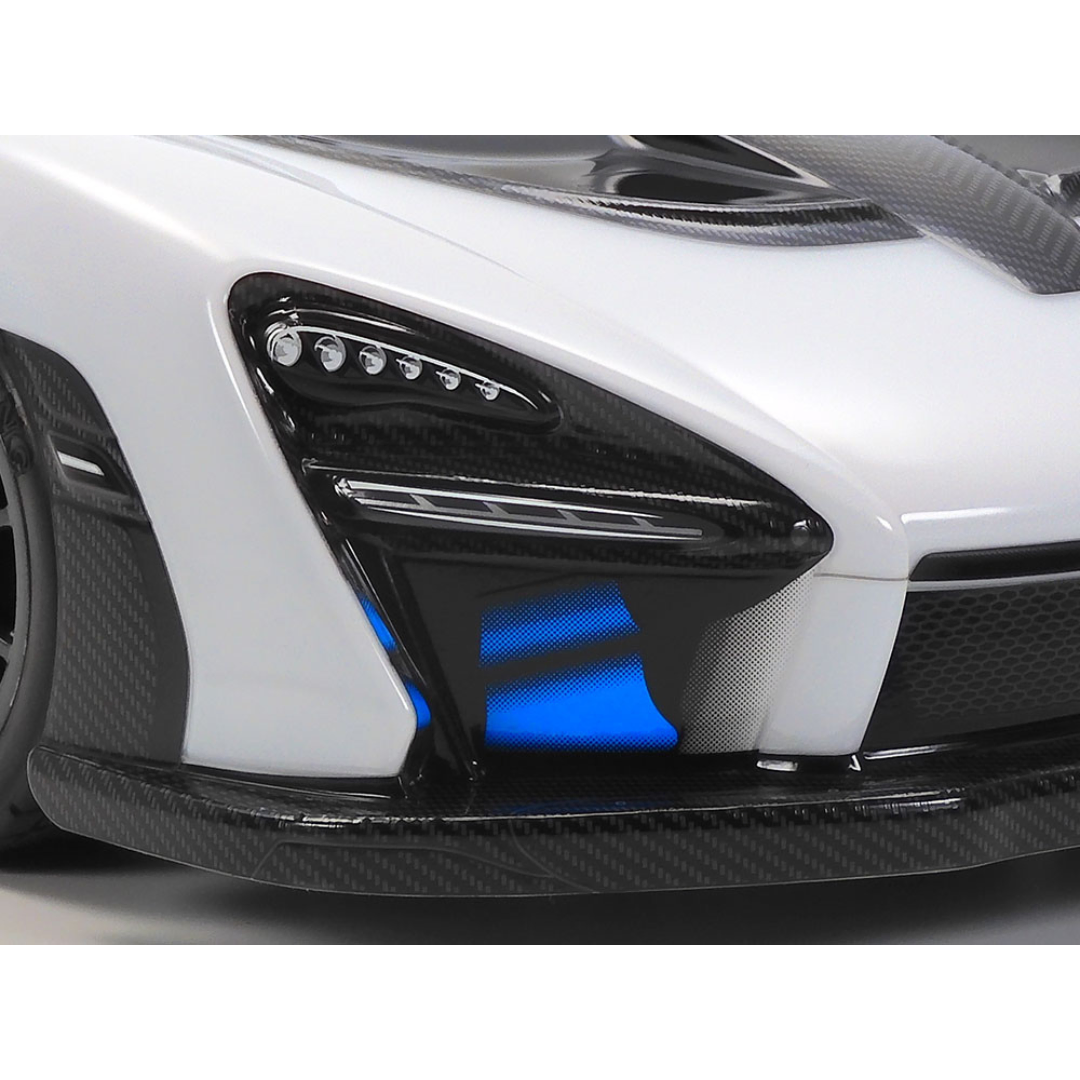

★Complex headlight designs and splitters (blue and red included) are recreated by stickers.

★Separately molded parts capture the distinctive side mirrors.

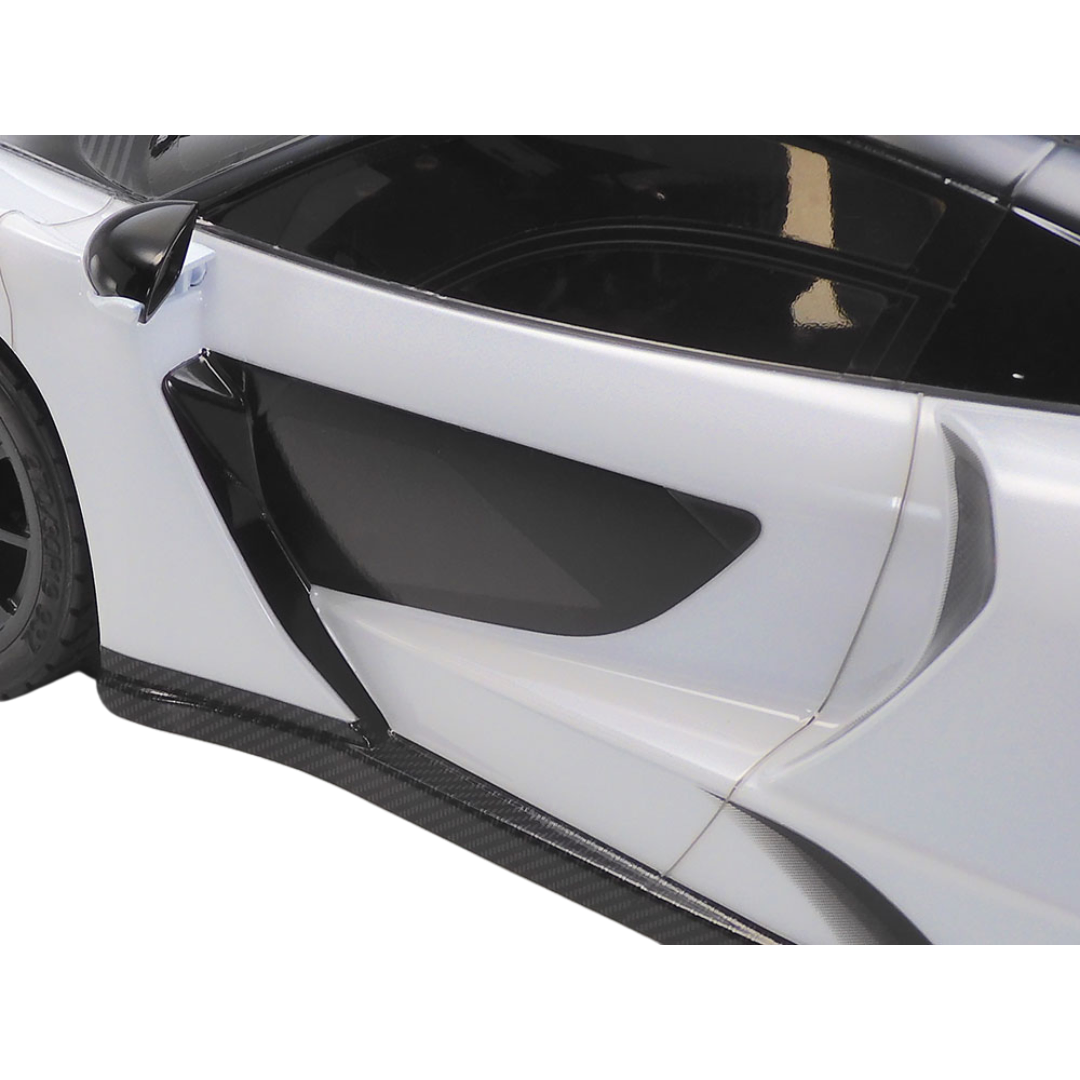

★Body sides feature great 3D detailing, with a black sticker included to depict the glass section in the door.

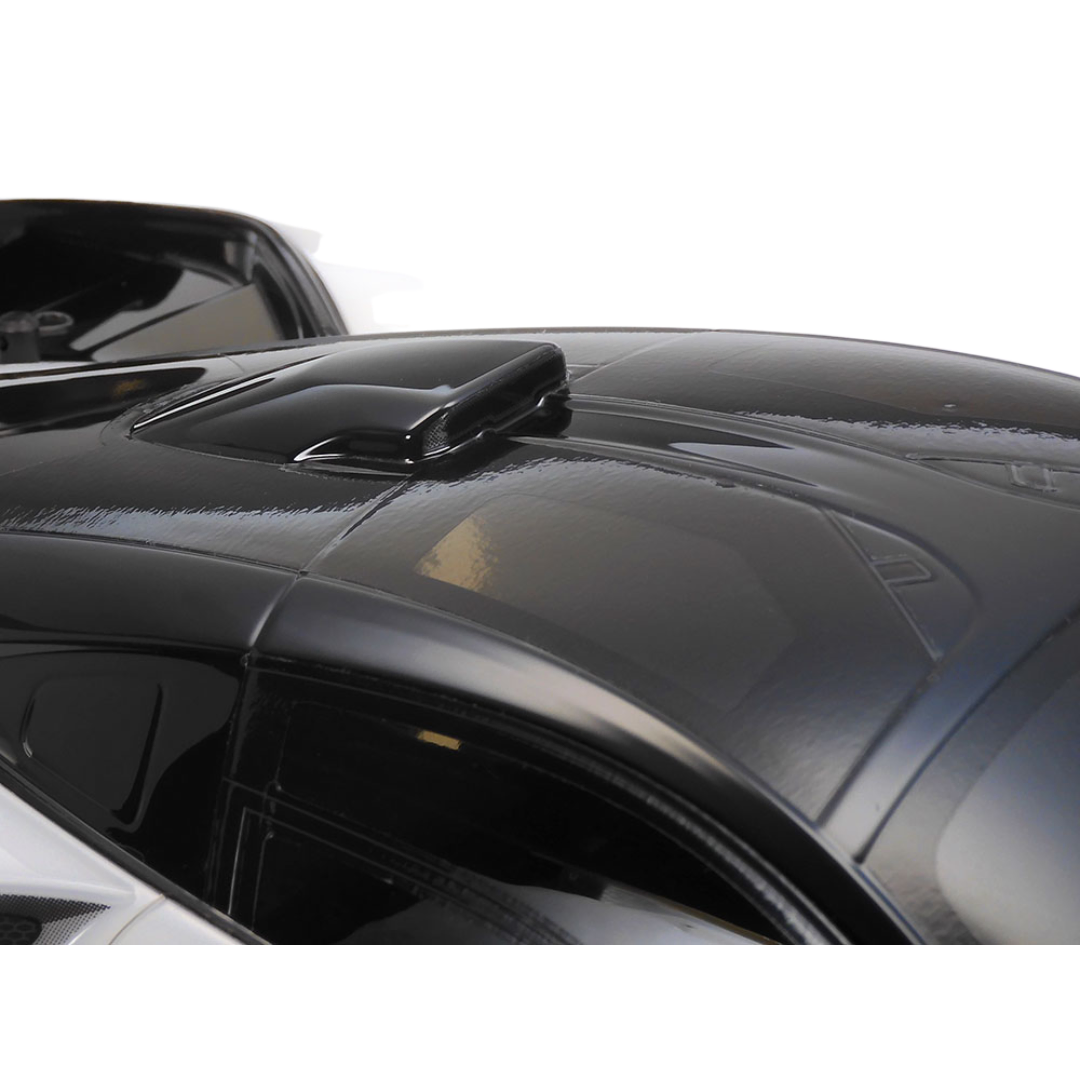

★The snorkel shaped air intake is an integrated part of the molded body.

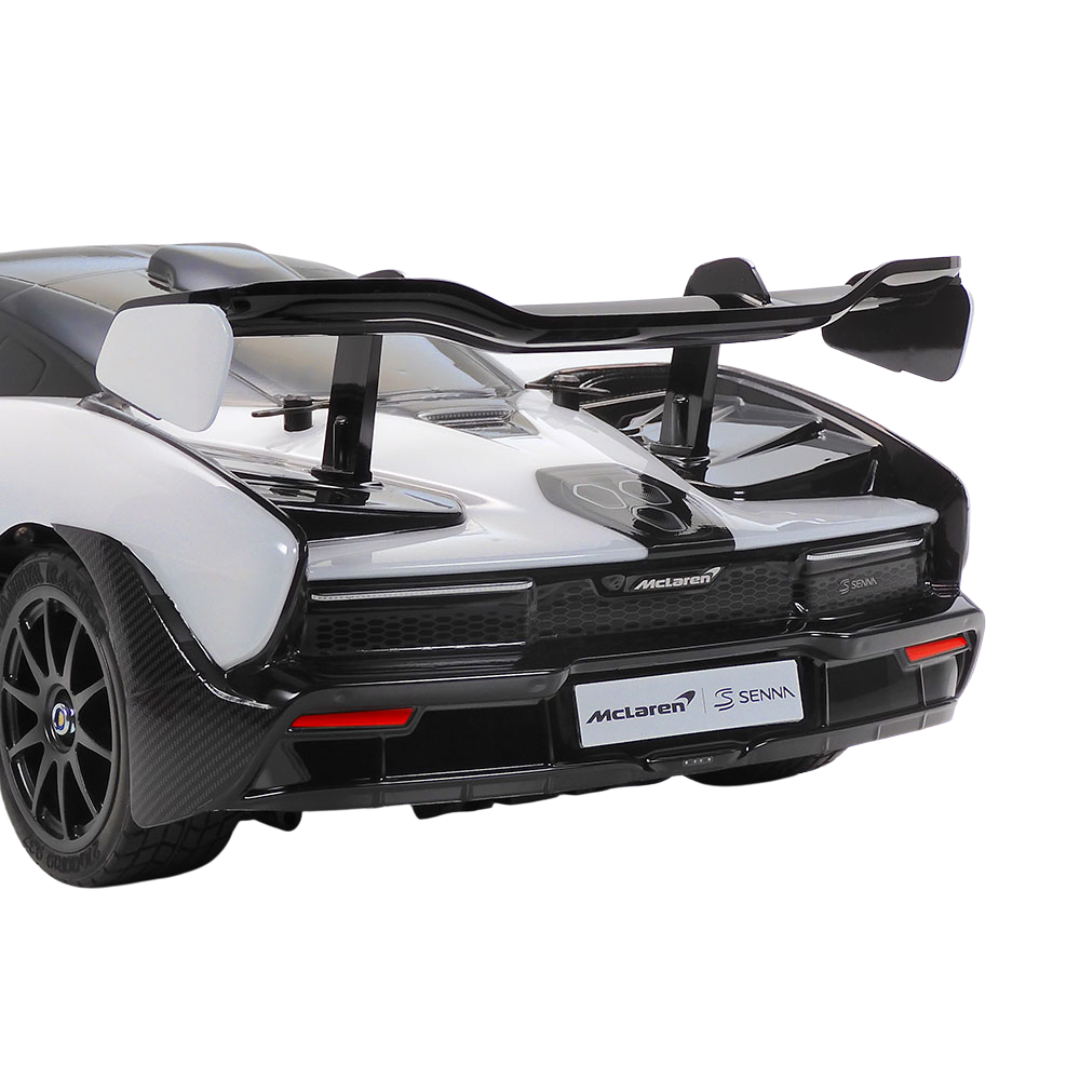

★The rear features depictions of the engine louvers and 2-level diffuser.

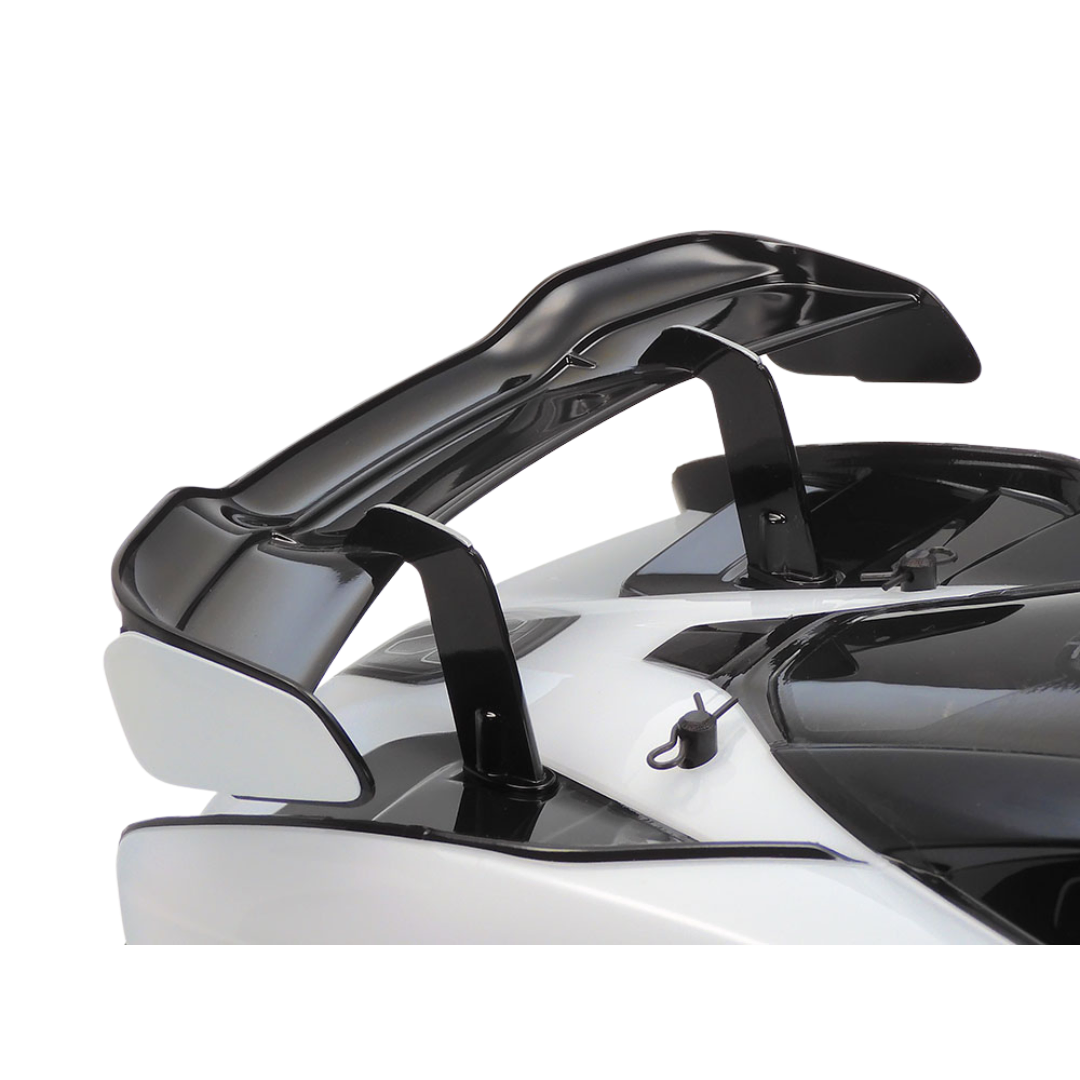

★Left: A one-piece ABS plastic recreation of the complex rear wing is a particular highlight. ★Right: 10-spoke wheels are molded in gun metal color plastic and paired with treaded tires.

★Left: Resin ball links in the steering linkage joints make for smooth, comfortable motion. ★Right: Wheel hubs are shaped to look like brake discs.

★Left: Motor cover includes removable cooling duct (not attached in image). ★Right: This image gives a closer look at the rear double-wishbone suspension with friction dampers.
