Tamiya 1/10 RC Toyota Land Cruiser 300 Kit

Toyota's finest SUV that is the envy of the world

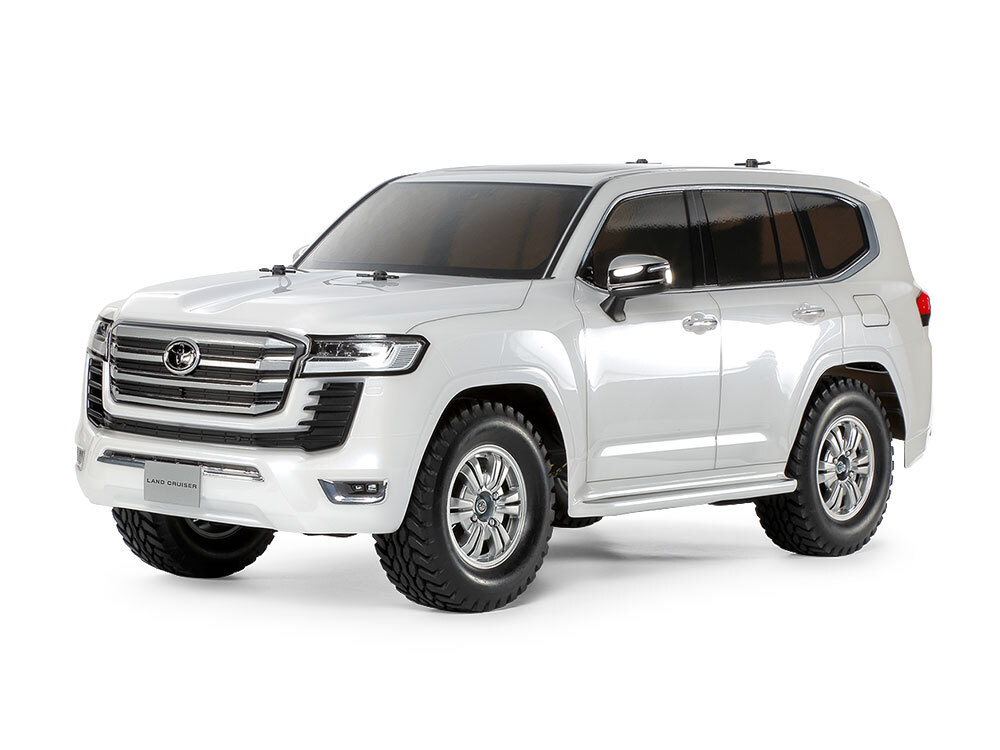

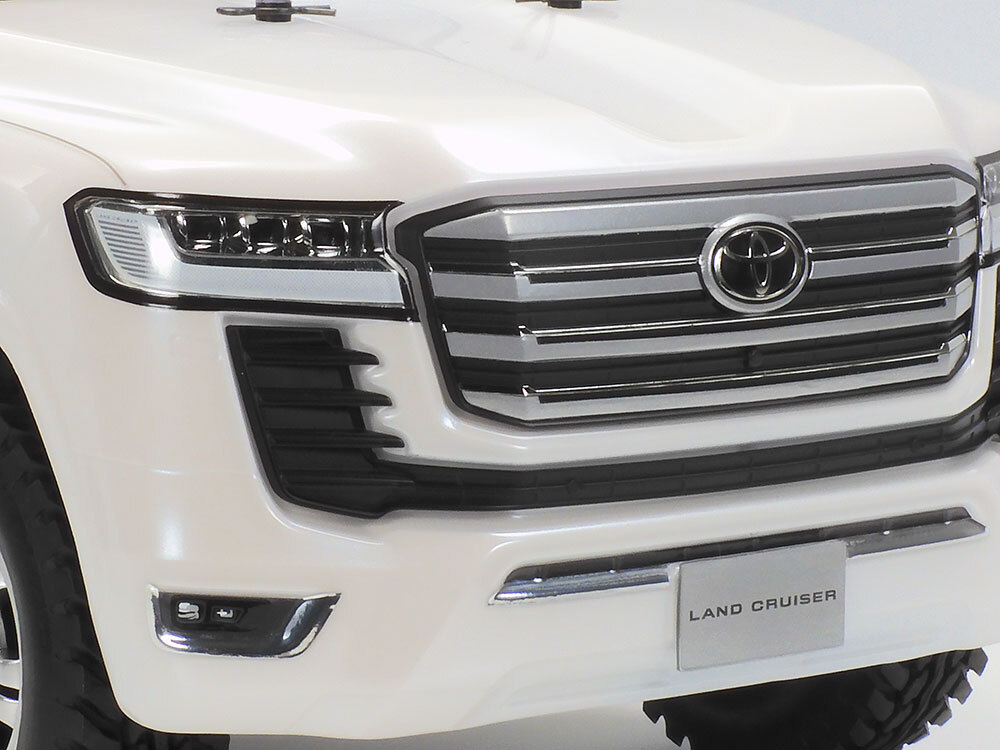

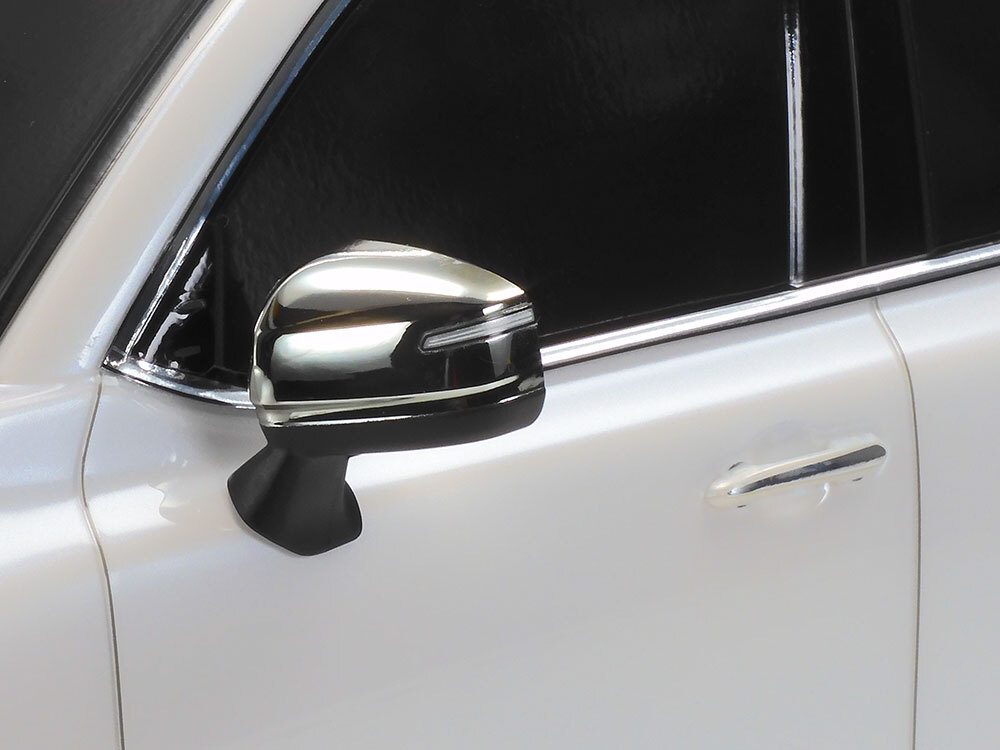

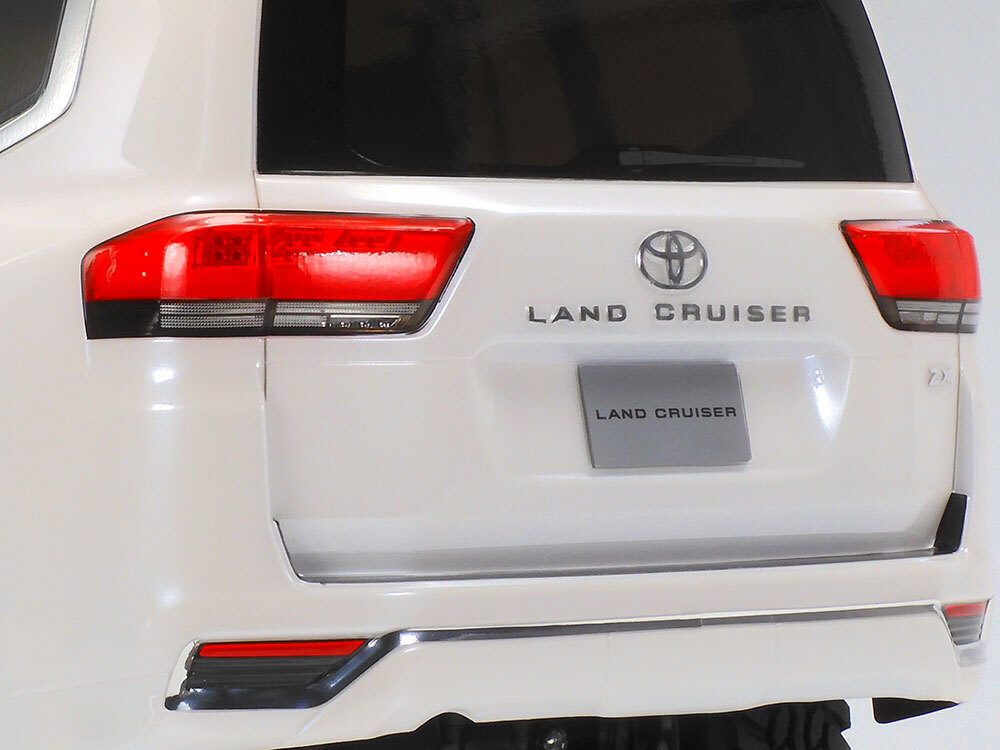

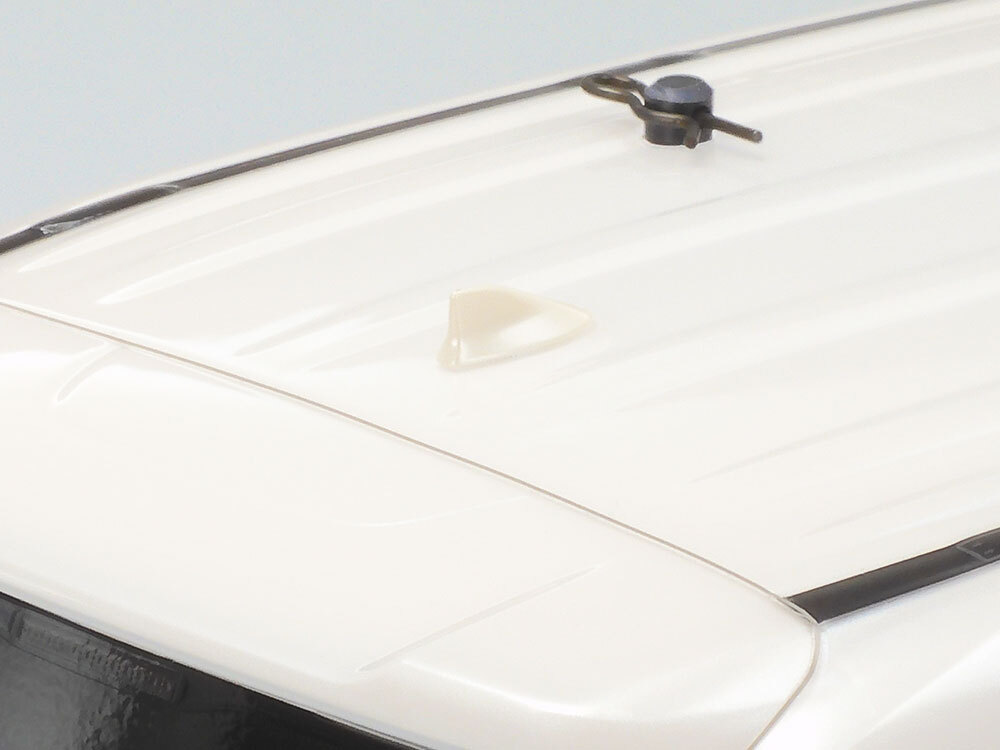

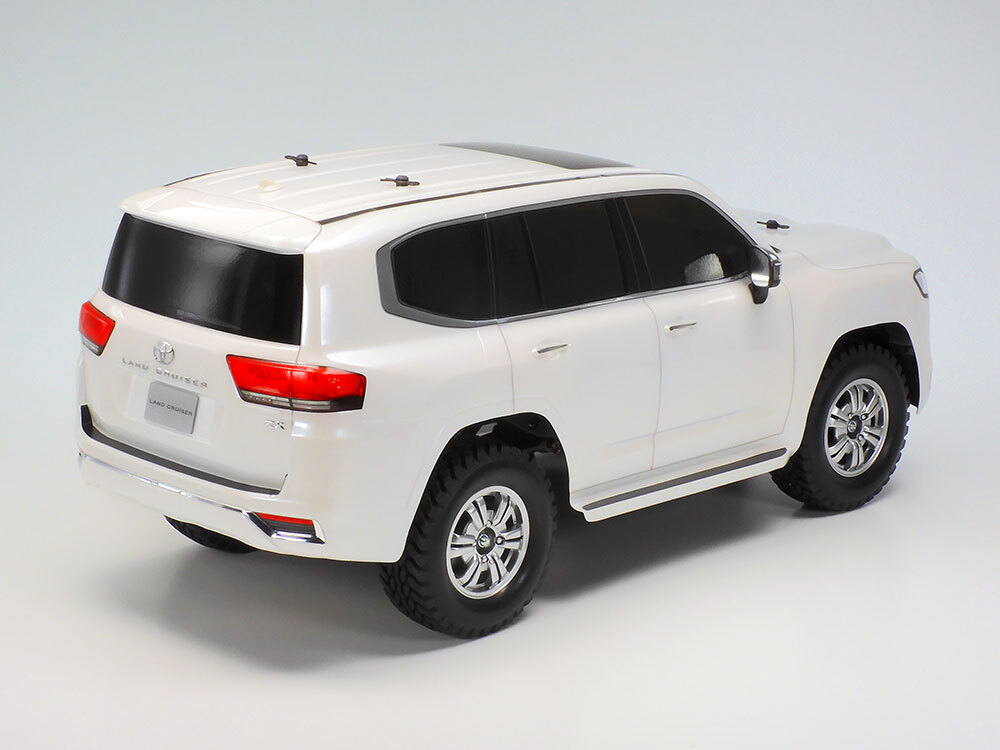

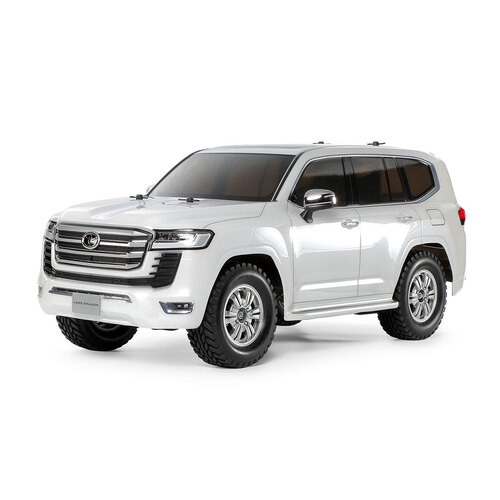

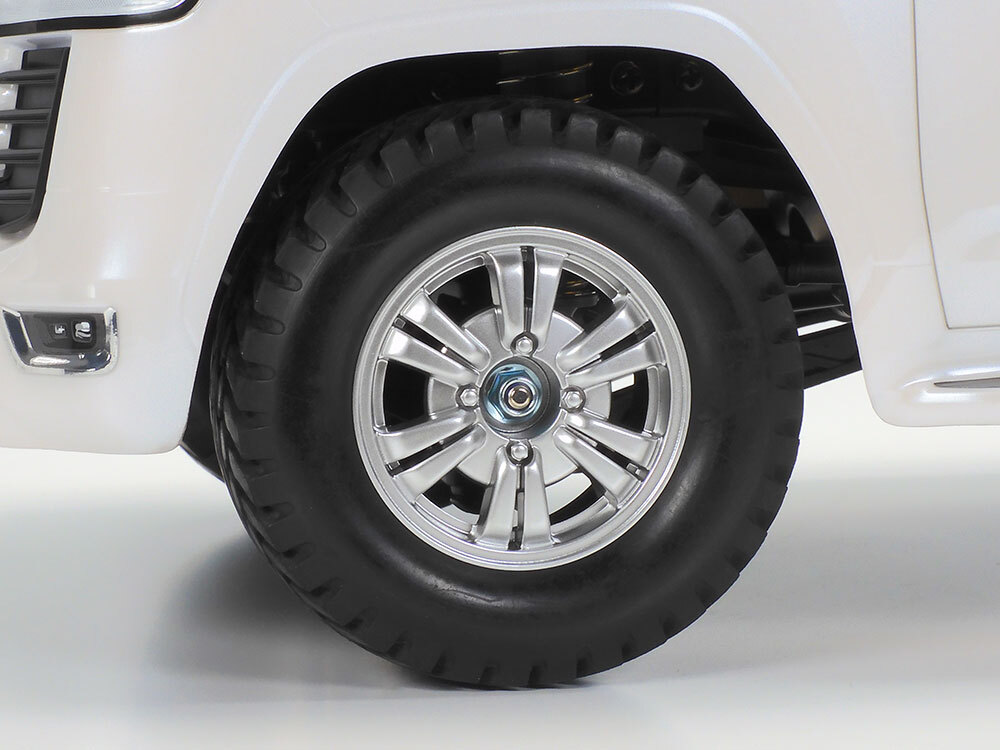

Since the first generation model release in 1951, the Toyota Land Cruiser has been one of the most famous 4WD vehicles in the world. This R/C model assembly kit recreates the Land Cruiser 300 series announced in 2021. The polycarbonate body realistically depicts the eye-catching, dignified form with separate parts to capture the distinctive large front grille's horizontal fins and metal-plated sections. Light case and door mirror components are metal-plated, and door handles and shark fin antenna on roof are rendered by separate parts for more realism. Silver color 12-spoke wheels are paired with block pattern tires.

Long wheelbase shaft 4WD, CC-02 chassis adopted

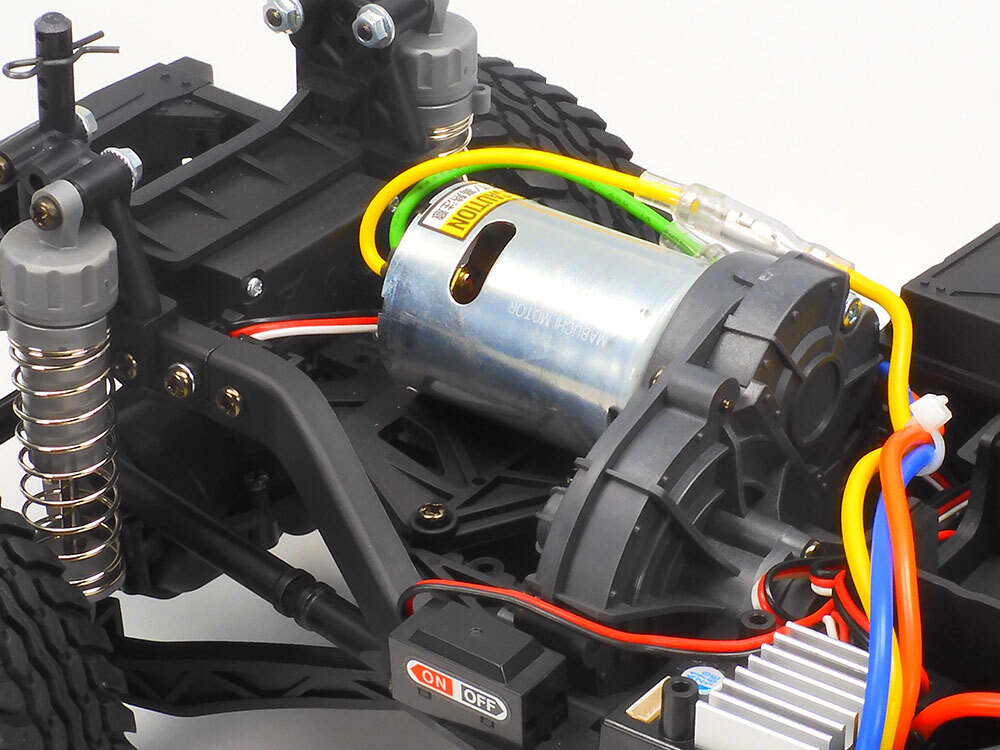

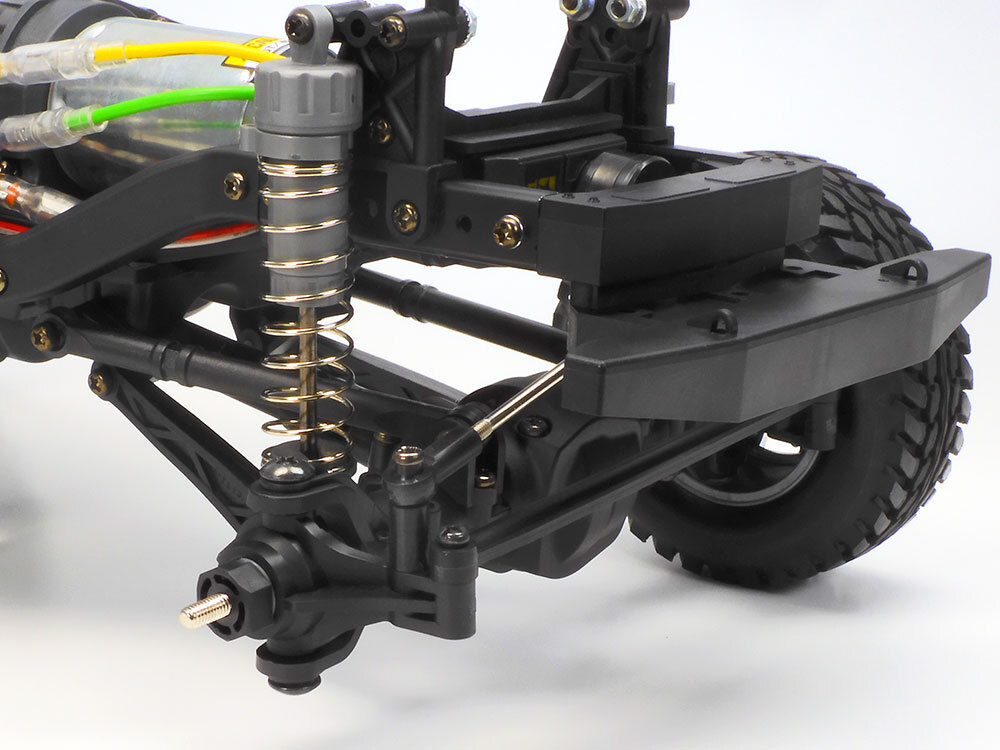

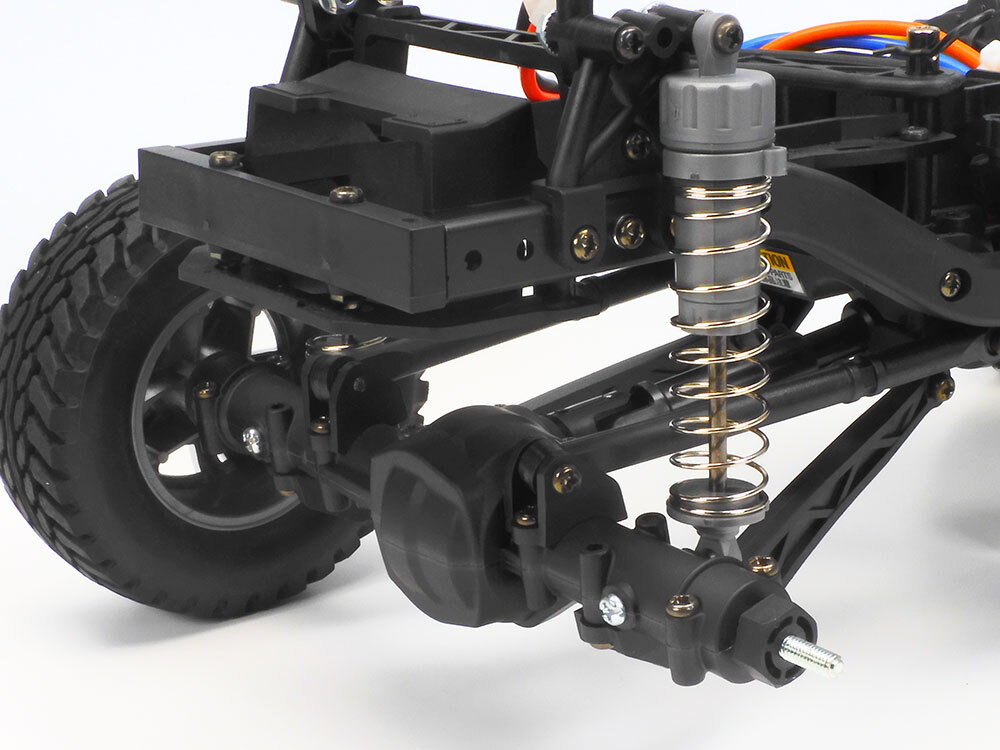

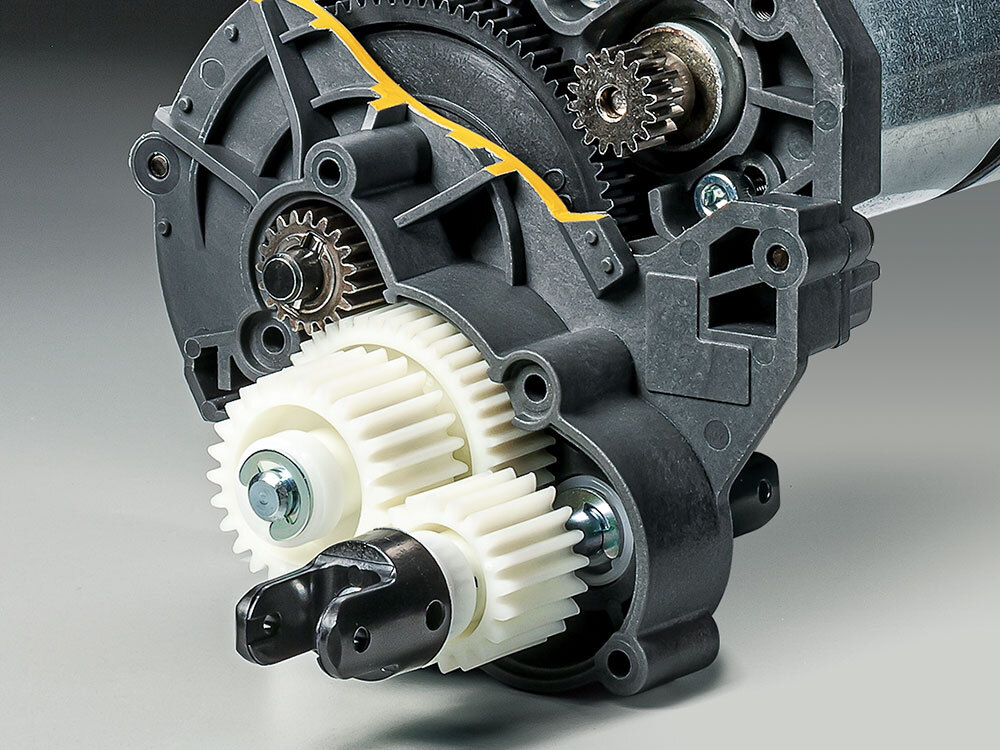

The CC-02 chassis has a ladder frame shape that looks like a real car. Equipped with a metal sub-frame on the front and rear of the frame to achieve both high rigidity and realism. The motor is installed vertically behind the front axle, and the gearbox and transfer case are separate types, and the propeller shaft transmits driving force back and forth. A wide range of gear ratios can be selected, and in addition to smooth power transmission, the shape also pursues the feeling of a real car. Suspension is a 4-link rigid front and rear that positions a high-strength resin axle housing with CVA oil dampers and 4 links. It has a simple structure and high strength, and the minimum ground clearance does not change easily, so it is suitable for off-road driving, and you can enjoy rock sections that require delicate control. In addition, the silver-colored 12-spoke wheels are equipped with block pattern tires that provide sufficient grip even on off-road. The wheelbase is a long specification (267mm) that matches the body of the Land Cruiser 300.

Specifications

• Length: 472mm, Width: 200mm, Height: 192mm
• Wheelbase: 267mm
• Tread: Front: 160mm, Rear: 163mm
• Tire Width/Diameter: Front and rear: 33/90mm
• Frame: Ladder frame type
• Drive system: Vertical motor・Shaft drive 4WD
• Differential gear system = 3 bevel differentials
• Suspension = 4-link rigid + CVA oil dampers for both front and rear
• Gear ratio = 17.33:1 (kit standard 16T pinion used)
• Speed ​​controller = ESC specification (sold separately)
• Motor = RS540 type

Separately Required Items

• 2-channel R/C system w/ESC
• 4 AA batteries for transmitter
