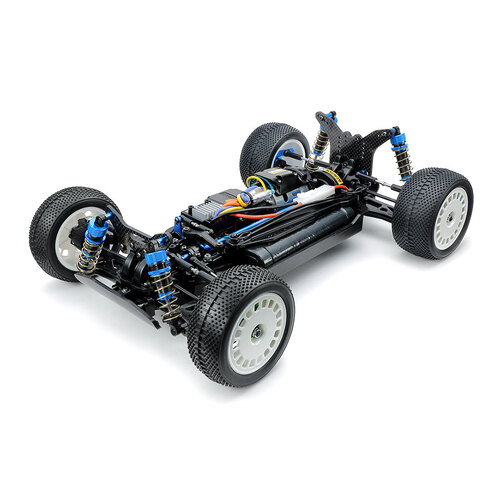

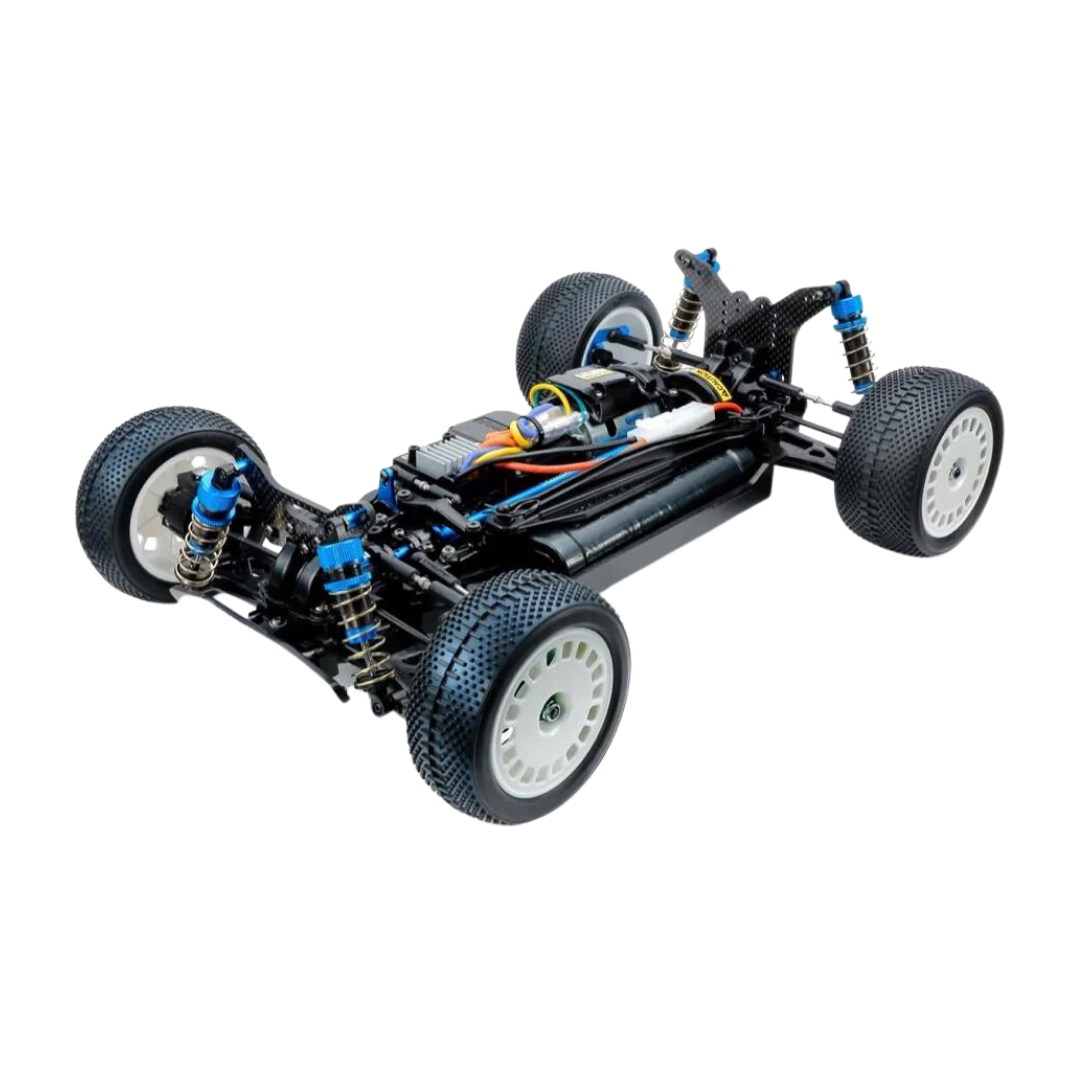

Tamiya 1/10 RC TT-02BR Racing Off-Road 4WD Chassis Kit

Race-Oriented Buggy Chassis

This chassis assembly kit is an upgraded version of the 4WD off-road TT-02B chassis kit with a wealth of extra parts. The drivetrain uses XV-02 oil gear differential units to adjust the effectiveness of gear differential, propeller joints with internal plastic parts to limit wear, front and rear universal drive shafts, and full ball bearings. Its suspension features new 3mm thickness carbon fiber damper stays to give more setup options, while the angle of rear wing high downforce is adjustable. Longer turnbuckle shafts help prevent plastic adjuster sections from deforming.

Specifications

• Length: 388mm, width: 183mm, height: 258mm
• Wheelbase: 258mm
• Bathtub type frame
• Shaft driven 4WD
• Front/rear oil gear differentials (with dedicated diff joints)
• 3-piece steering tie-rod
• 4-wheel independent double wishbone suspension
• Oil dampers with aluminum cylinders
• Gear ratio = 10.71:1 (with kit standard pinion)
• Motor and electronic speed controller (ESC) sold separately.

Separately Required Items

• Motor
• Tires
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

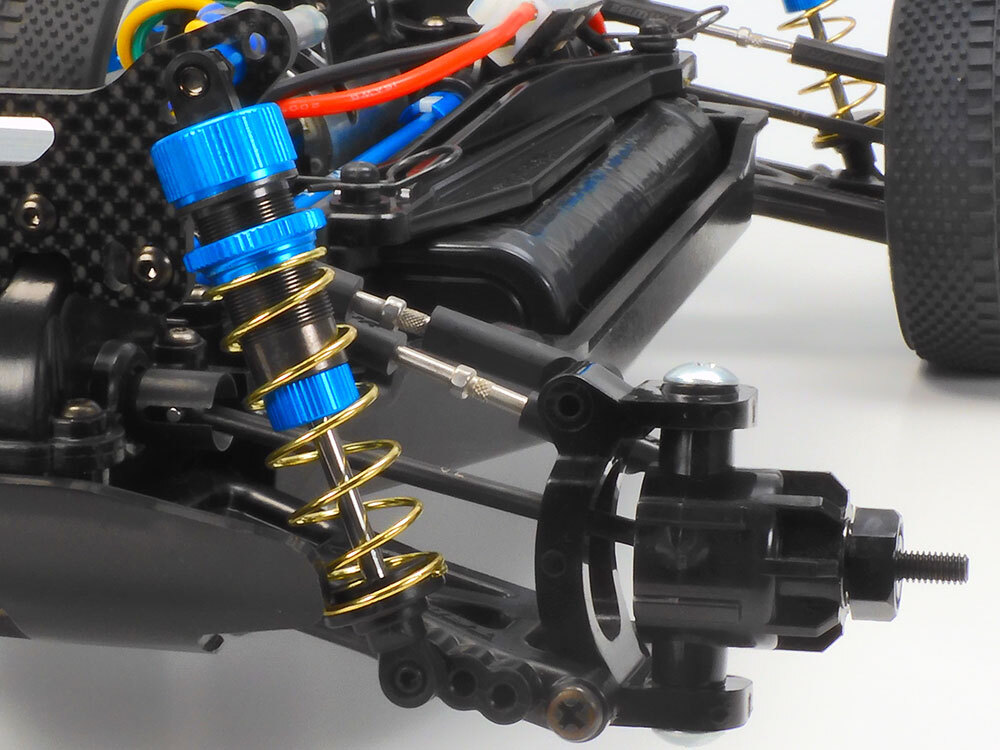

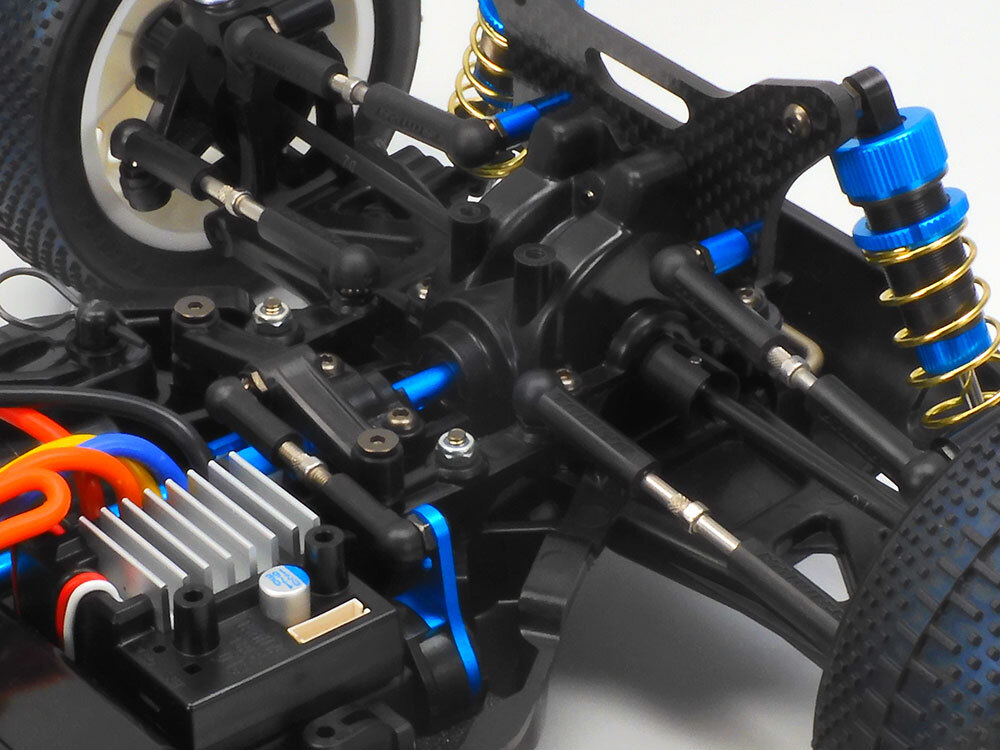

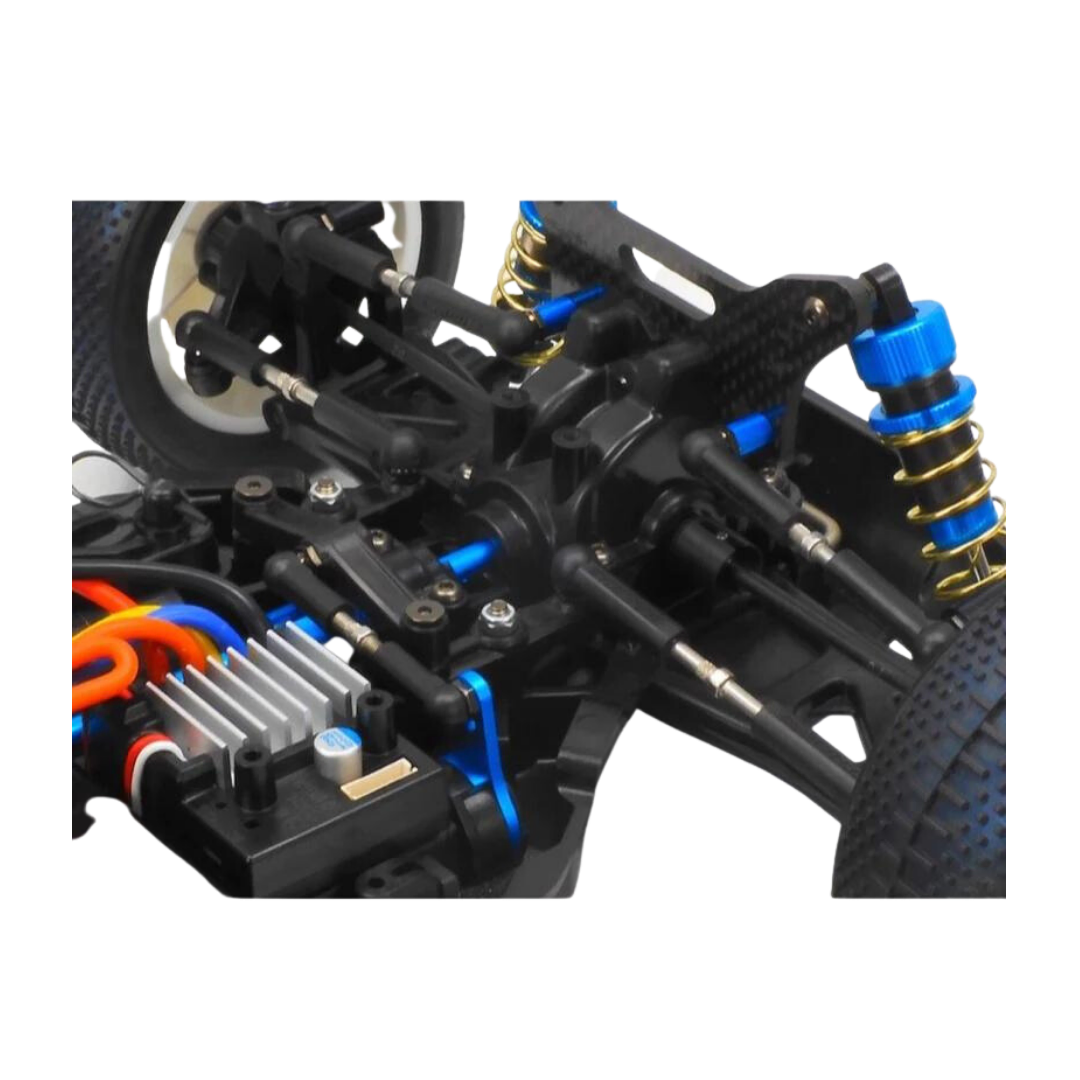

★Turnbuckle steering and suspension arms can be adjusted quickly to fine-tune your setup.

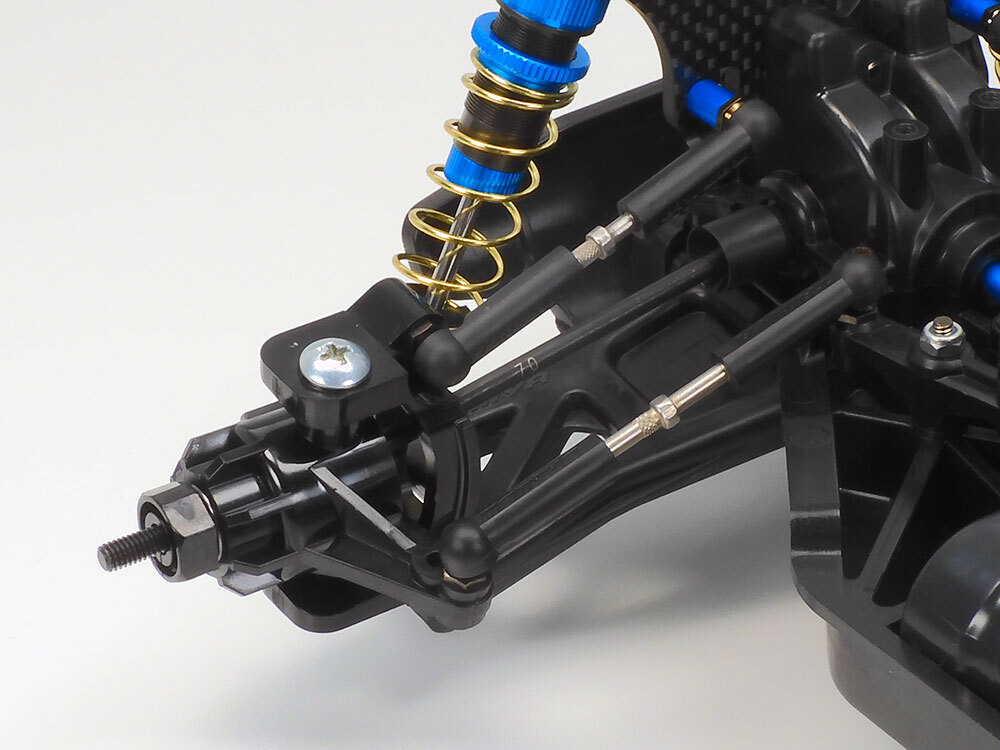

★Assembly universal shafts help maintain speed when steering, for smoother cornering.

★High spec oil dampers have precision aluminum cylinders with a low-friction interior coating.

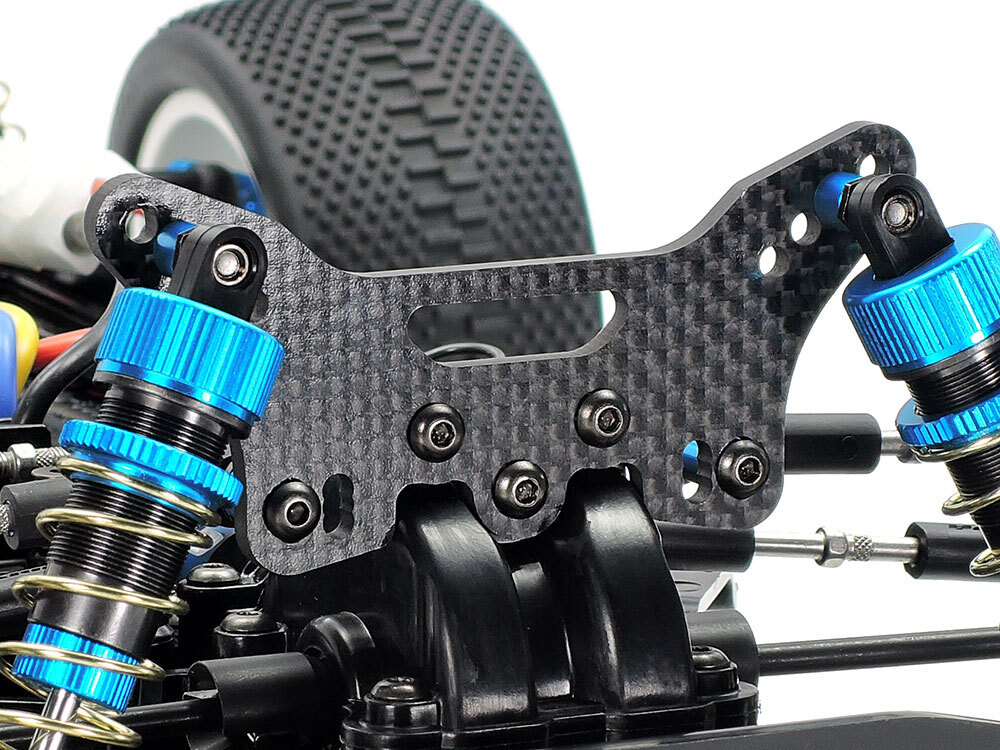

★This is the 3mm thickness front damper stay, which gives plenty of setup options.

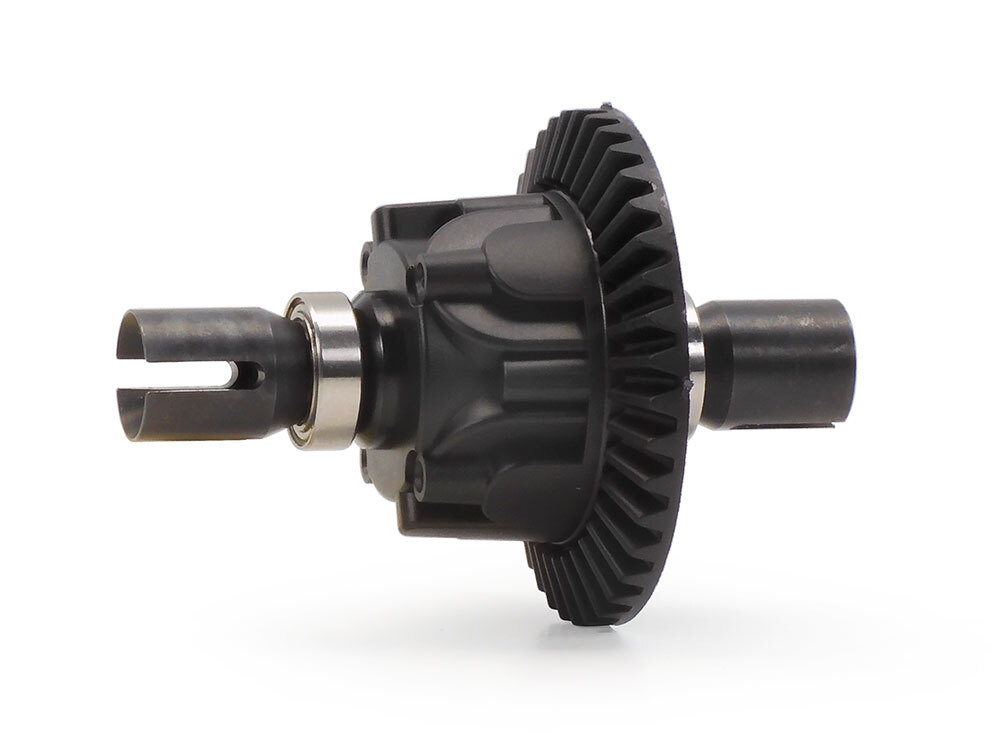

★Oil filled gear differentials let you fine-tune performance with oil viscosity. This kit has dedicated differential joints.

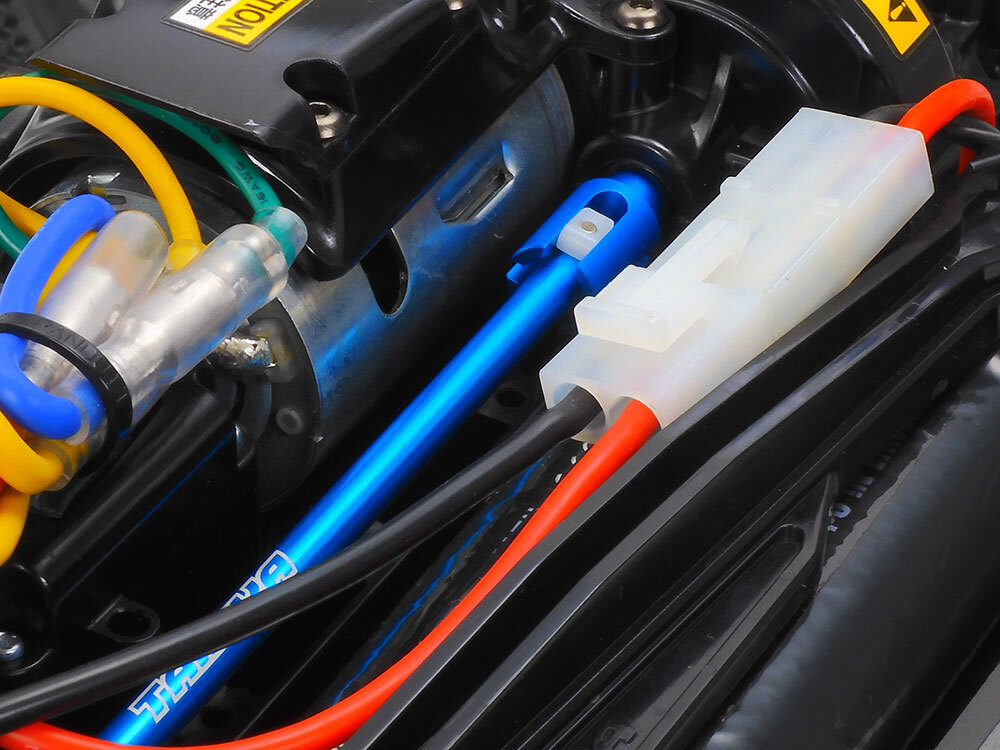

★The kit features an aluminum propeller shaft with plastic inserts in the propeller joints to minimize wear.

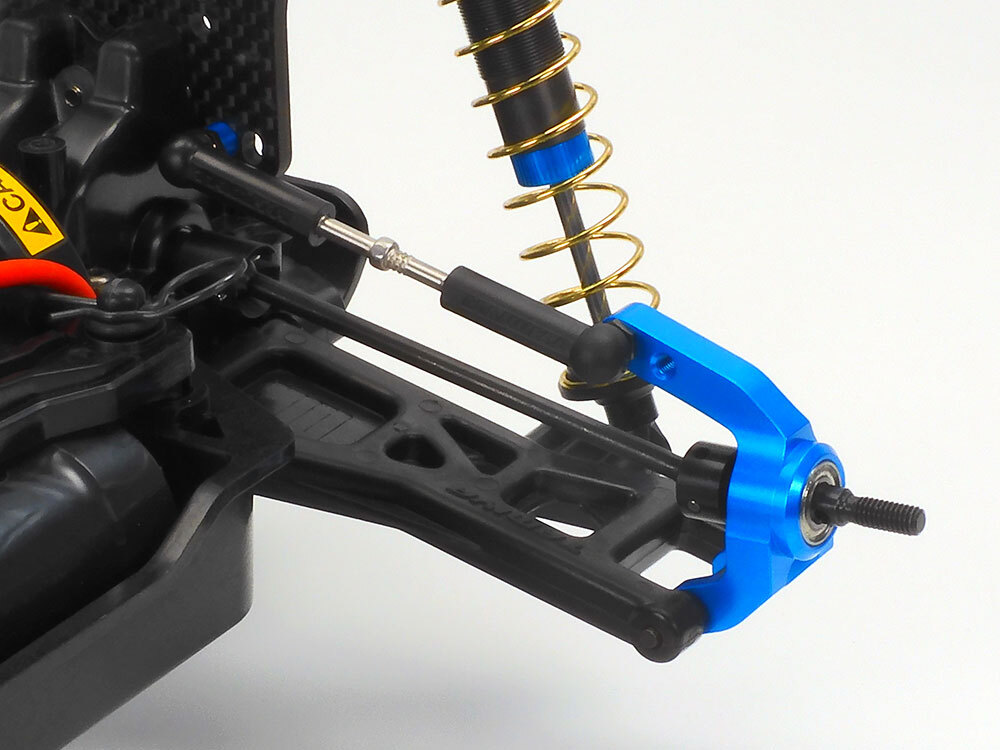

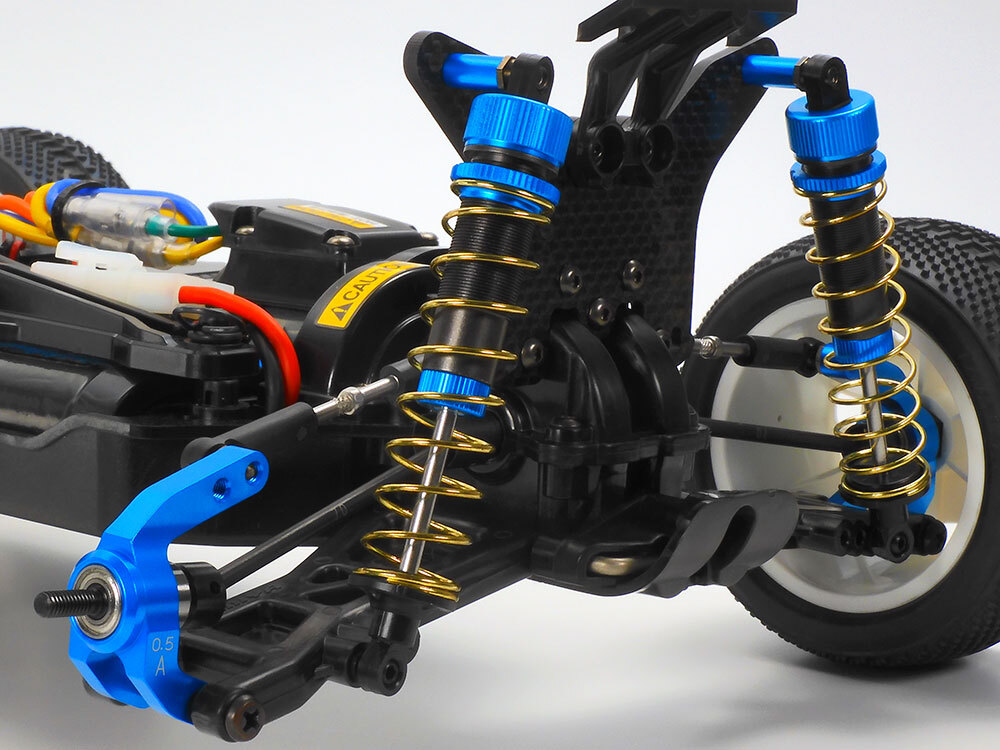

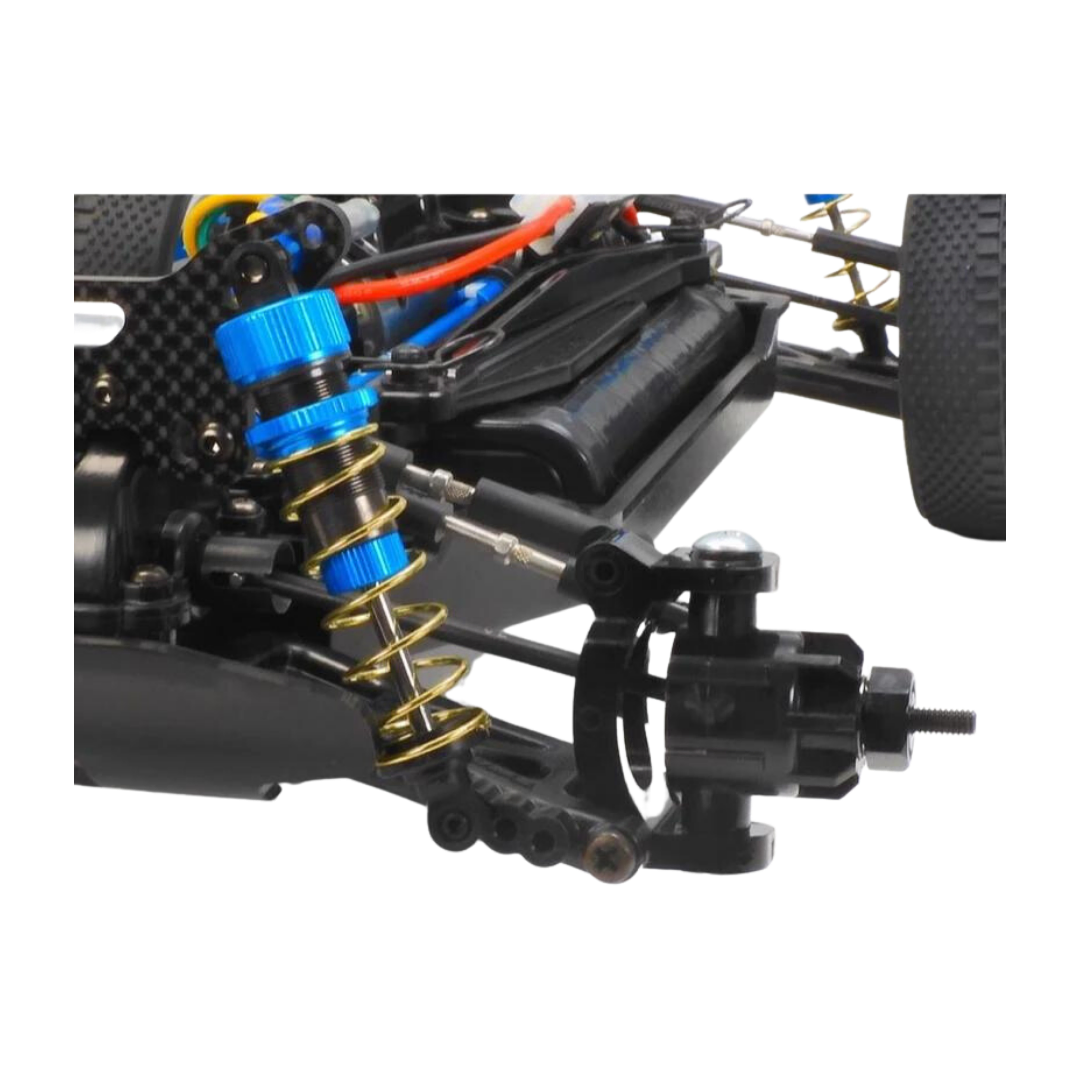

★Left: Aluminum rear uprights offer great rigidity to the benefit of your car's cornering. Switch left and right to alter toe. ★Right: Assembly universal shafts also alleviate loss of efficiency when suspension is compressed.

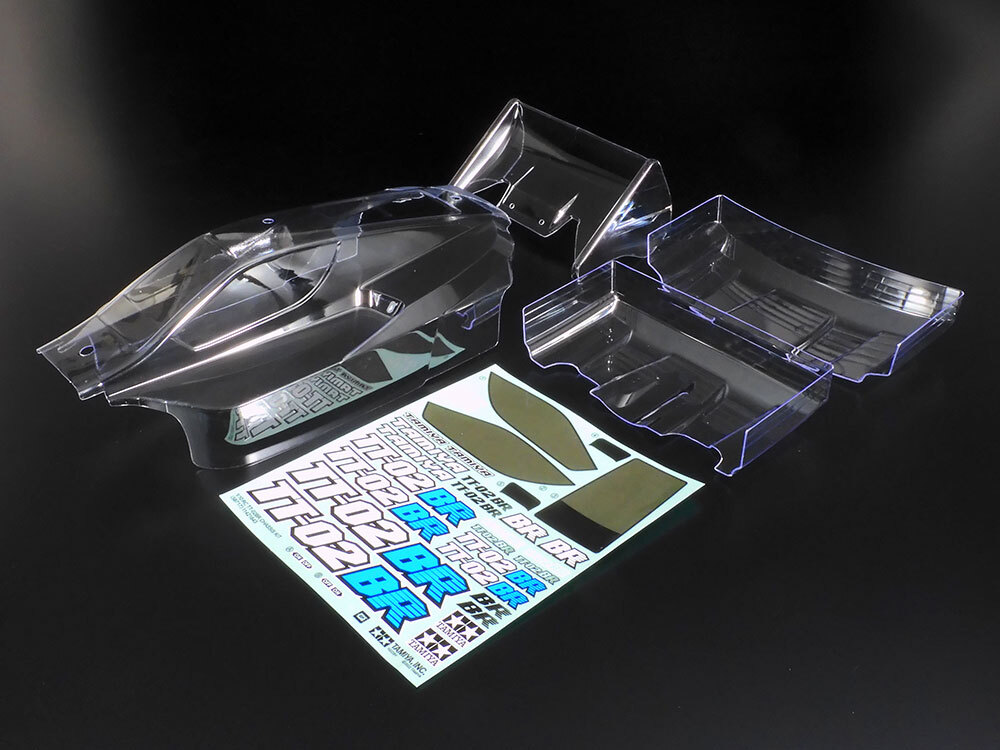

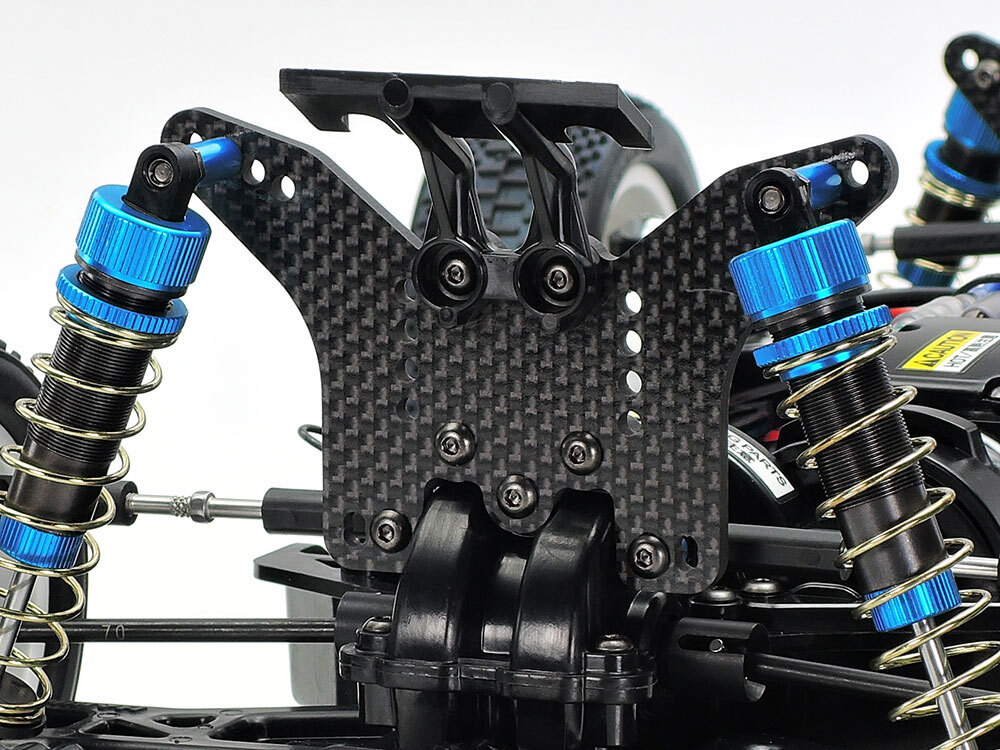

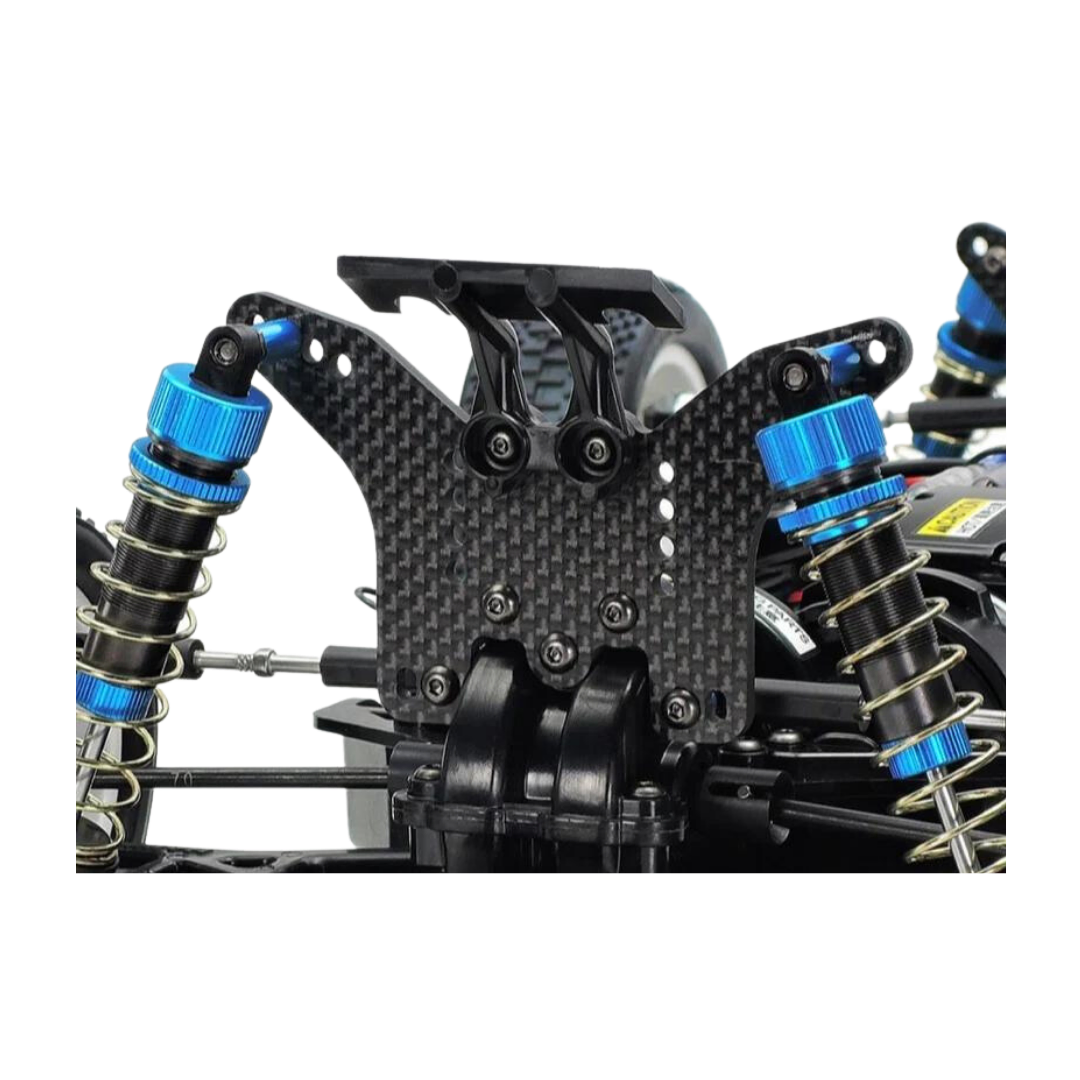

★Left: This image shows the 3mm carbon fiber rear damper stay, with adjustable wing stay. ★Right: The kit includes the Neo Scorcher body and wing, plus the wing set Item 54211.
