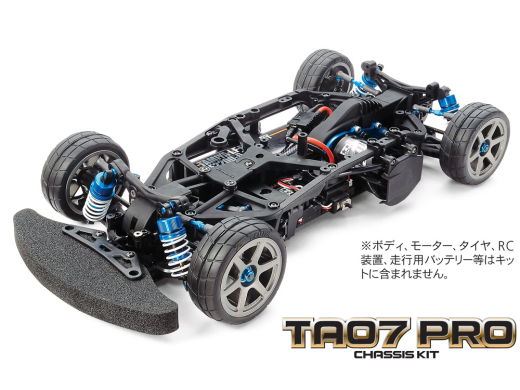

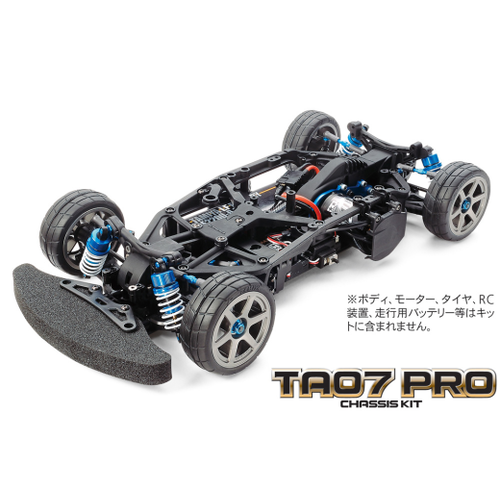

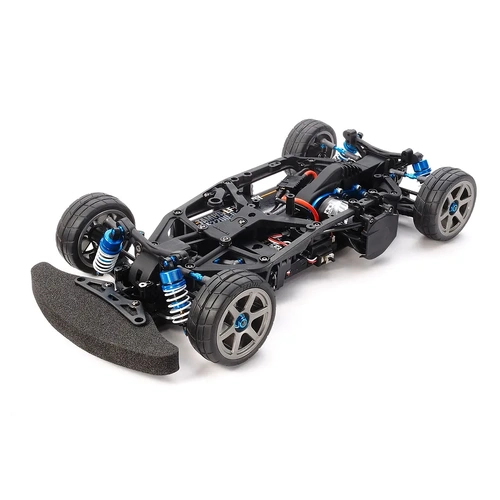

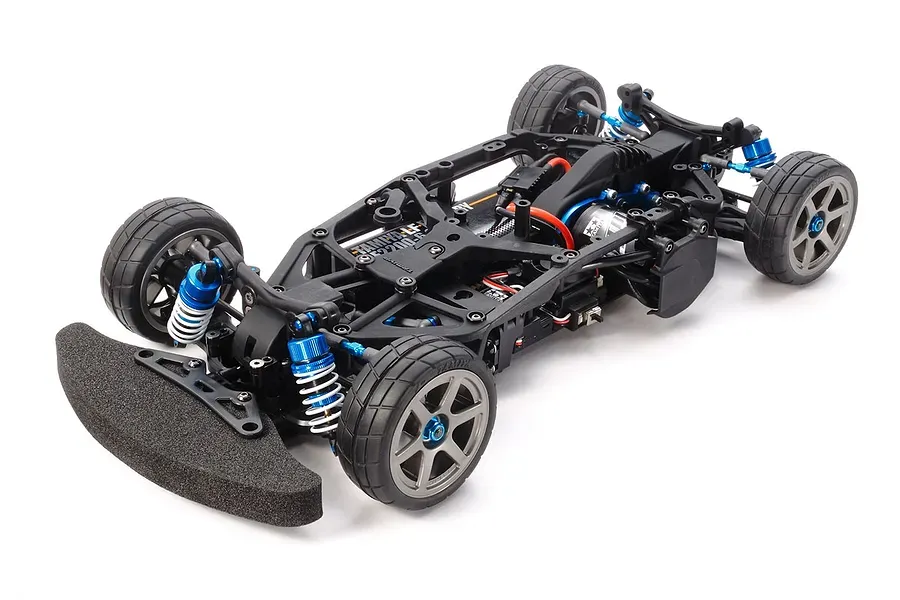

Tamiya 1/10 TA07 PRO Chassis Kit 58636

Striking & Effective Composite Chassis, Single-Belt 4WD
This 4WD R/C touring car chassis assembly kit is endowed with a design influenced by data from the TRF (Tamiya Racing Factory) team's top level racing activities. It is based around a composite structure that consists of a narrow lower deck and an upper frame, and gives optimal torsional rigidity which can be further adjusted by removing the frame center section. The highly efficient single belt drivetrain offers 3 motor positions, each with its own performance characteristics suited to different tracks and setups. Proven TRF419 suspension, gear differential units and steering components are joined by TRF dampers and universal shafts to make this chassis a hi-spec racer!

• Composite Resin Lower Deck & Upper Frame
• Aluminum Motor Mount
• Front & Rear Gear Differentials
• TRF419 design Suspension Arms
• TRF419 design Uprights
• Front & Rear Assembly Type Universal Shafts
• TRF Special Dampers
• Hi-Torque Servo Saver
• Aluminum Turnbuckle Shafts
• Full Ball Bearings
• Tried and trusted TRF419 design gear differentials front and rear.
• Suspension arms and uprights also utilize race-proven TRF419 designs.
• The TA07 PRO employs an efficient single belt-driven 4WD drivetrain.
• Removing two motor mount screws on the lower deck allows switching between 3 motor positions.
• The included motor guard also has 3 different attachment positions to match that of the motor.
• Battery mount attachment height can be adjusted between 24mm and 26mm as needed.
• Countersunk heads on the screws ensure that the lower deck underside maintains a smooth profile.
• The composite chassis frame optimizes the TA07 PRO's torsional rigidity, and gives a fresh look.
• A choice of three motor positions is on offer to suit driving and circuit style. No belt change is necessary when switching between the positions, and the chassis allows any necessary adjustments to belt tension.

• Length: 370mm, Width: 187mm, Wheelbase: 257mm
• Composite Resin Lower Deck & Upper Frame
• Single Belt-Driven 4WD
• Front/Rear Gear Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• TRF Dampers
