Tamiya 1/12 RC Toyota Land Cruiser 40 QUADTRACK– No ESC

Tracked Classic

Toyota’s Land Cruiser is one of the most recognizable 4WD vehicles in the world, especially the 40, a series which was sold from 1960 to 1984. This R/C model assembly kit recreates the Land Cruiser 40 Pick-Up equipped with 3-sided track units in place of tires. The model is based upon the gear-driven 4WD GF-01FT chassis which features a monocoque frame with power provided by the centrally-positioned motor via front/rear differential gears. The track units not only offer superlative traction compared to tires but also enable the model to run even on snow, sand, mud and other testing conditions with stable grip. A lightweight, polycarbonate body, and driver figure are also included.

GF-01FT Chassis

The GF-01FT is a variant of the GF-01. In place of the original tires are four swinging track units, which are attached with the uprights and are powered via drive sprockets. Each features eight rollers, and the third roller's vertical motion ensures that the GF-01FT enjoys excellent traction. Ground clearance is also significant. The tracks themselves are assembly type, with metal link pins and two types of link (standard, grouser) for running in different conditions.

Specifications

• Length: 337mm, width: 250mm, height: 236mm
• Wheelbase: 174mm
• Track surface contact area: 60mm x4
• Track width: 39mm
• Monocoque type frame
• Central motor, gear-driven 4WD
• Front & rear 3-bevel differentials
• 2-piece steering tie-rod
• 4-wheel double wishbone suspension
• Friction dampers
• Gear ratio = 18.03:1
• Motor included
• Electronic speed controller (ESC) is sold separately.

Separately Required Items

• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

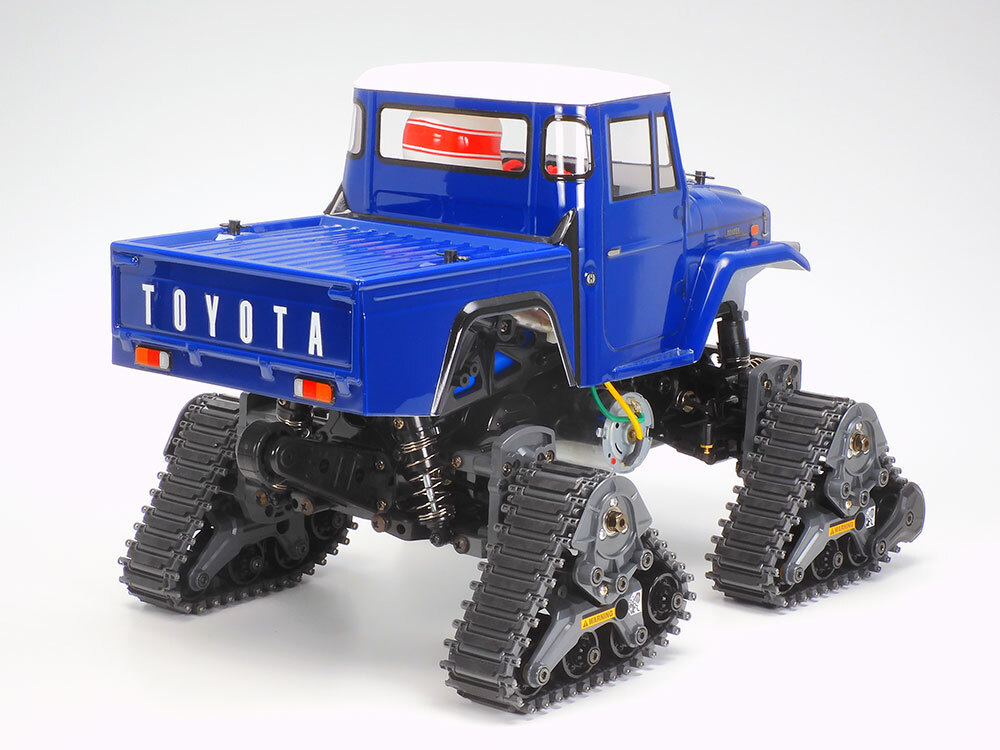

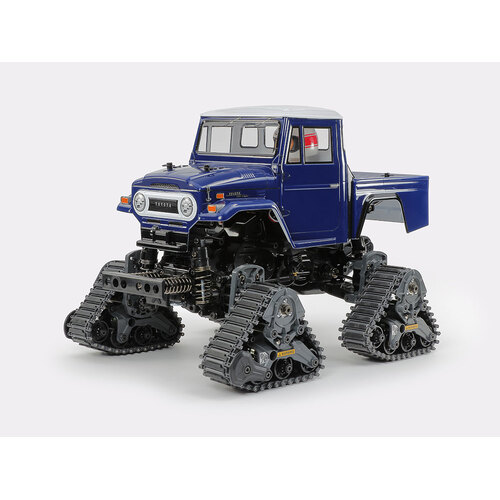

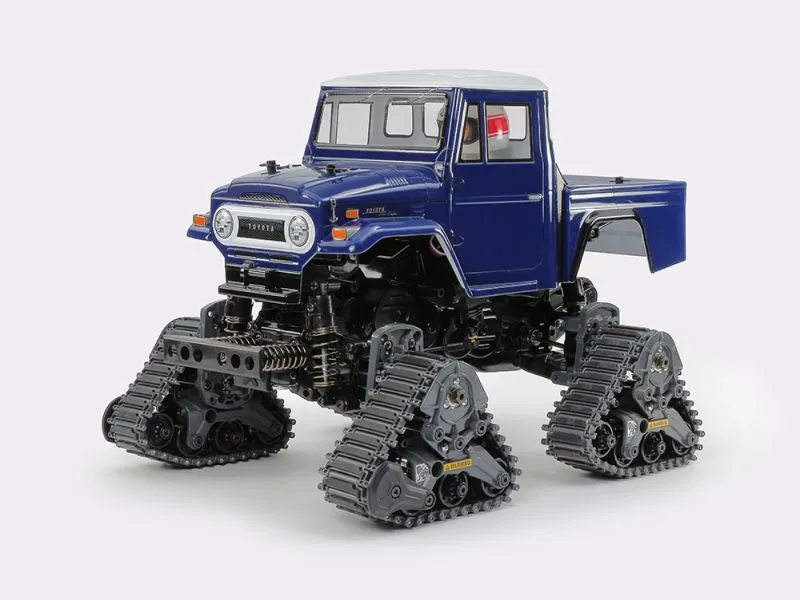

★The combination of classic Land Cruiser 40 body in polycarbonate, and four tracks is an impressive sight indeed!

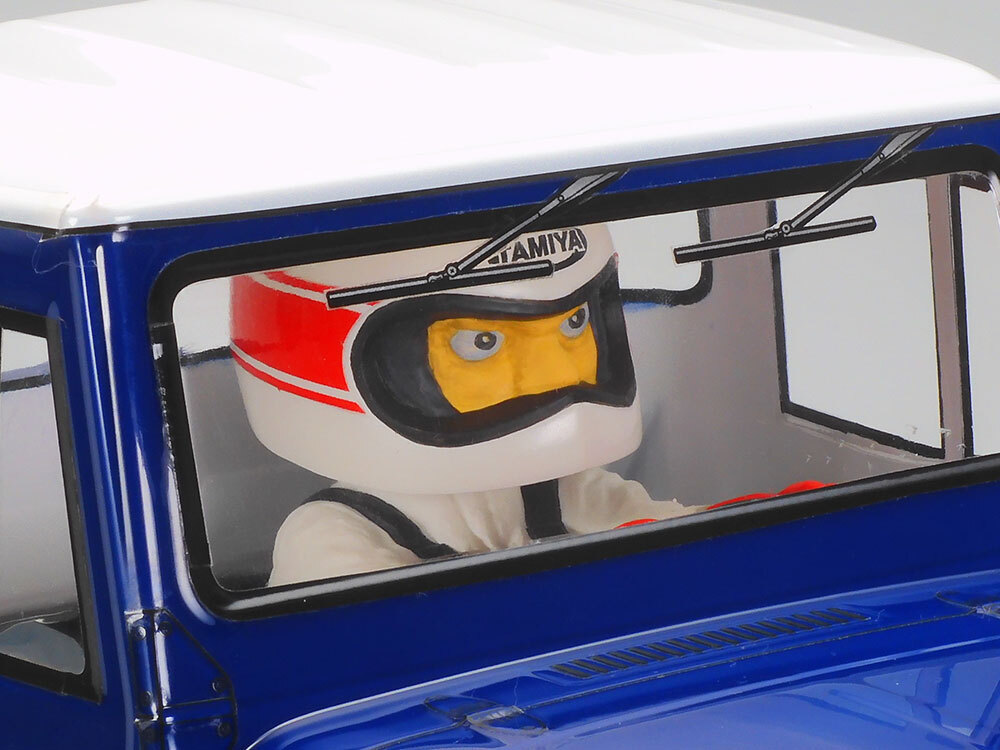

★The included driver figure will add that extra something to your model, perched inside the cabin.

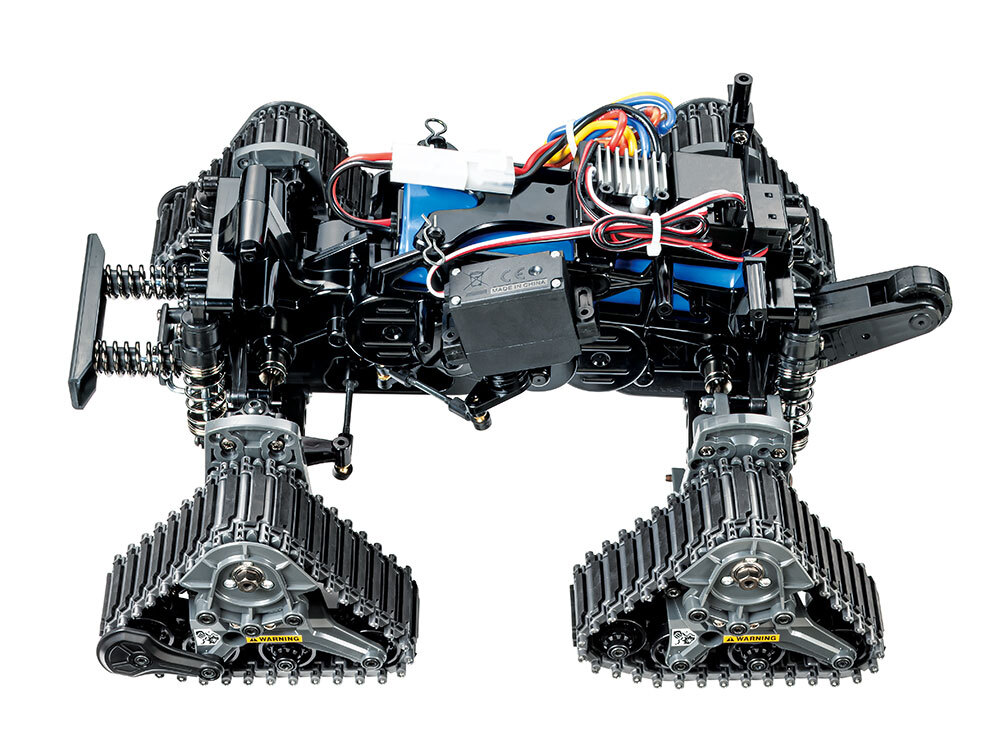

★This image shows the gear-driven 4WD chassis GF-01FT, with a track unit on each upright for super off-roading.

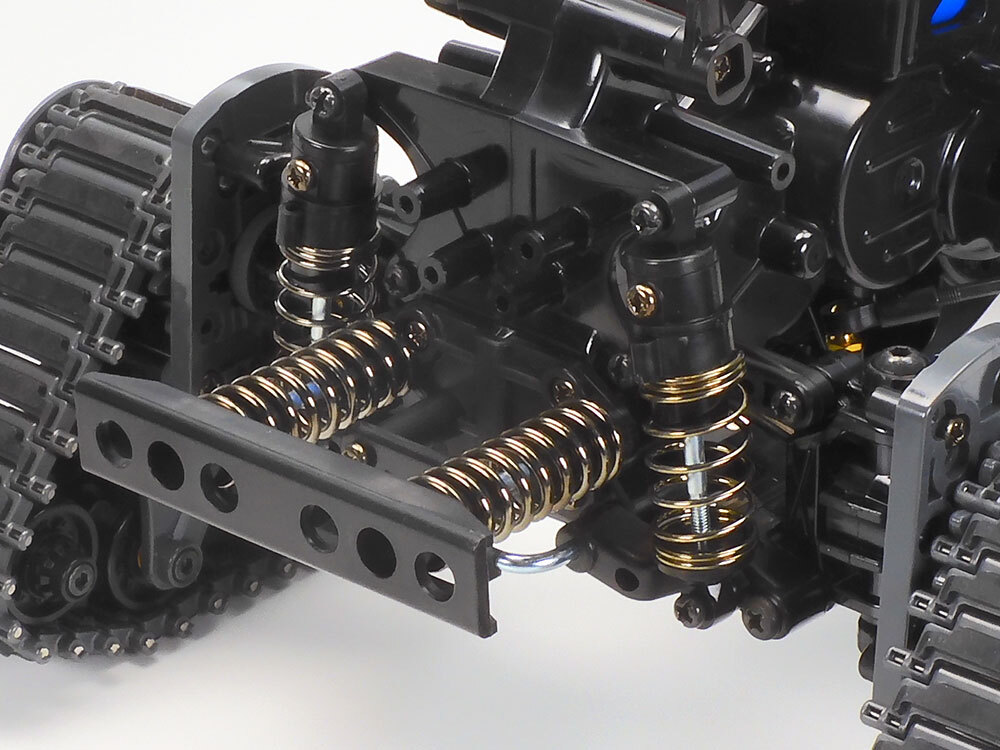

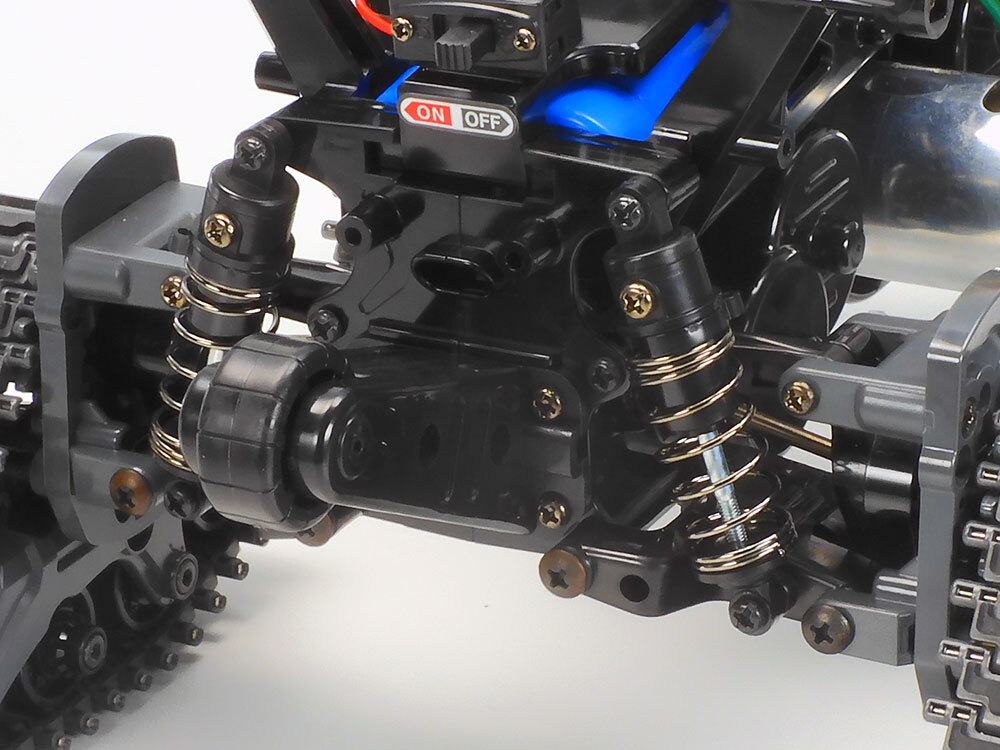

★Take a closer look at the front of the model, which features double wishbone suspension with friction dampers.

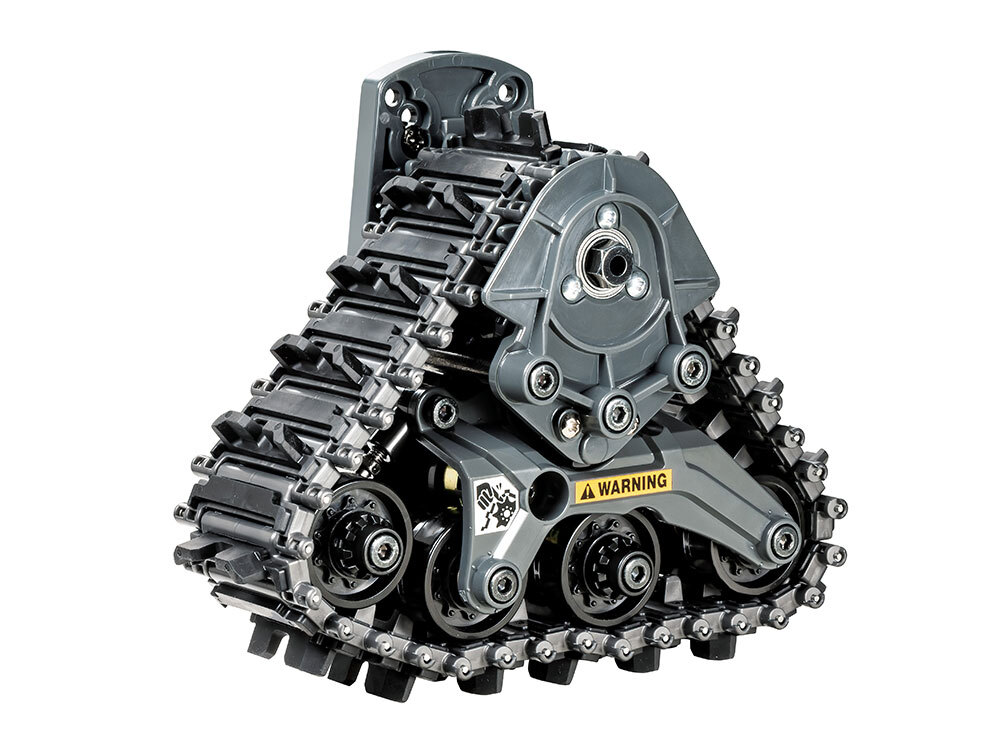

★Track units are connected to the drive shaft and powered by a drive sprocket. Each has eight rollers.

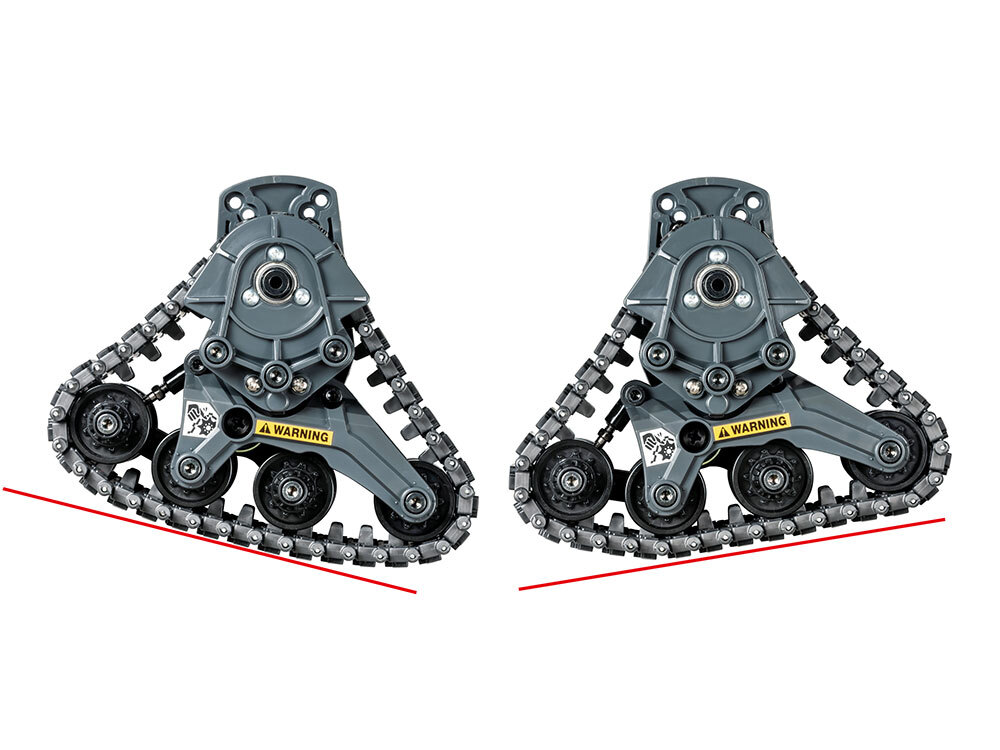

★This image illustrates the swing of the track units, which ensures that the model enjoys great traction.

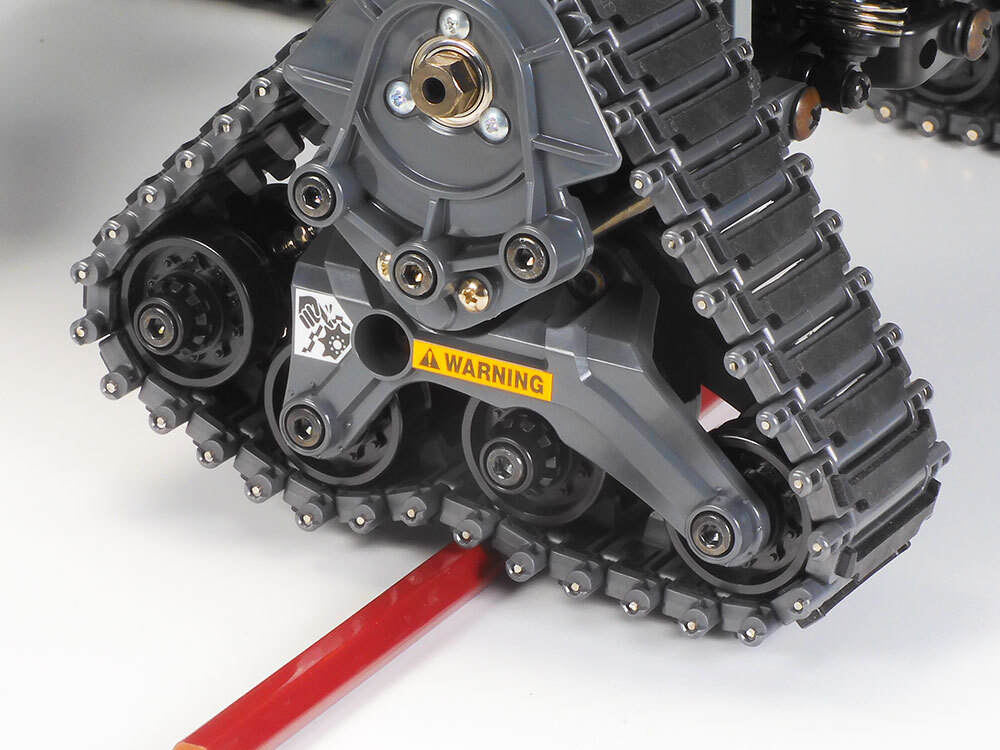

★Take a look at the vertical motion of the third roller, and how it contributes to the model's traction.

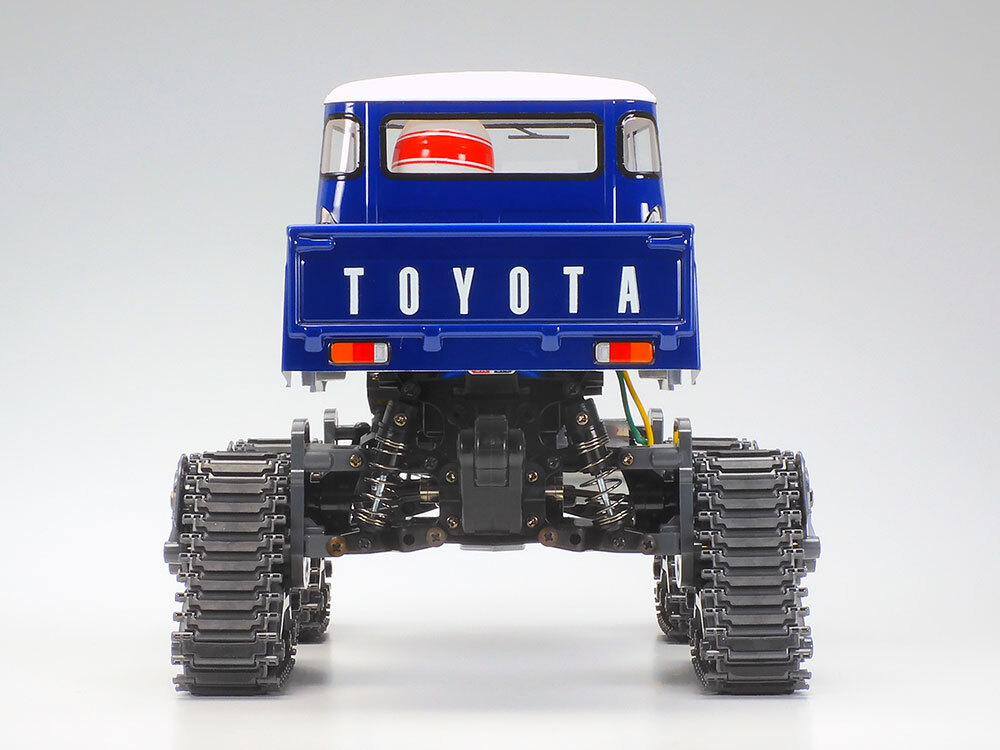

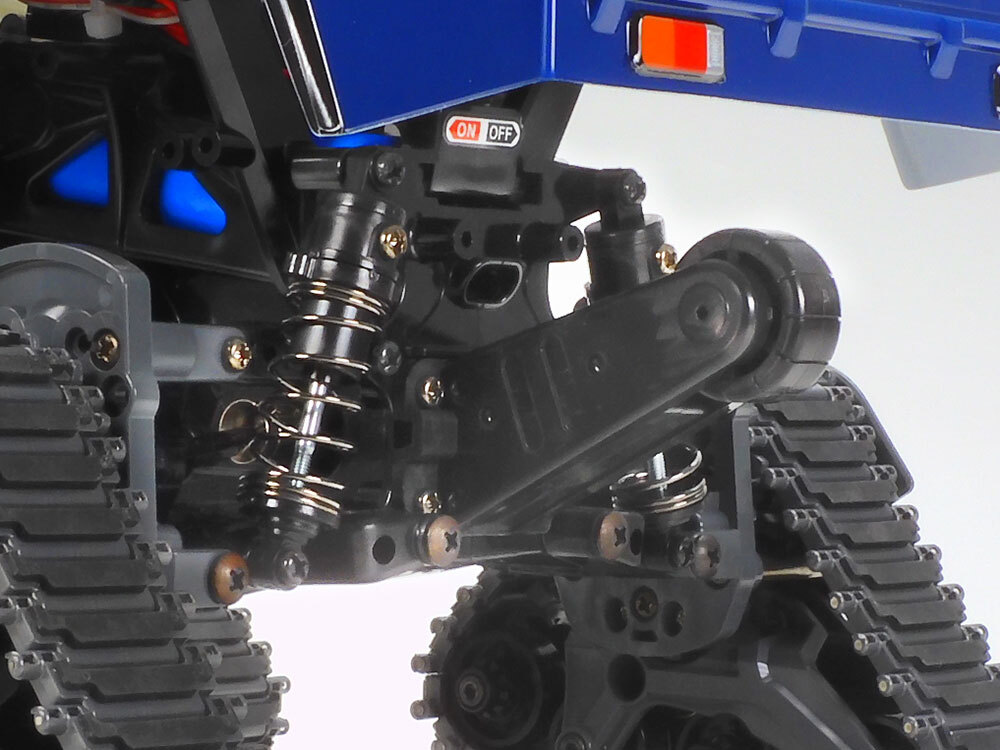

★This image shows the rear, which is also fitted with friction-damped double-wishbone supension.

★A support bar with plastic roller at the back of the model helps prevent tumbles when on the move.

★The model offers significant ground clearance as shown here, helping on irregular surfaces.

★Two types of track link type are included, and can be employed as shown, depending on the driving surface.
