Tamiya 1/14 Mercedes Benz Actros 3363 Full Operation set Truck 23801

Tamiya 1/14 Mercedes Benz Actros 3363 Full Operation set Truck 23801

$1,999.00

Description

A Customized 3-Axle Beauty! - Finished Model

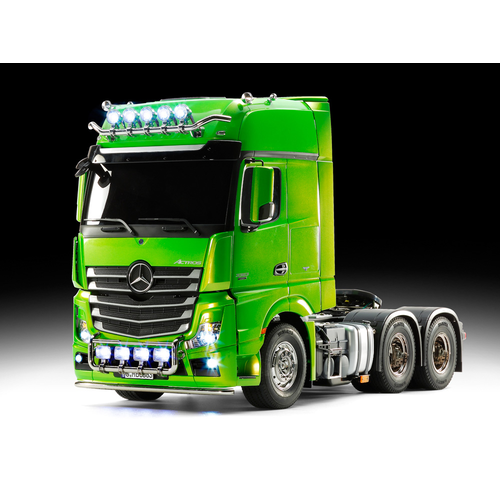

This is a factory finished RC model of the 1/14 scale Mercedes Benz Actros 3363 3-axle truck. It is hand built and finished by Tamiya's craftsman. It includes a Tamiya 4-channel radio and MFC-01 unit.

The Actros series debuted in 2011 and was named 2012 Truck of the Year. Powered by a 15.6-liter inline-6 turbocharged diesel putting out a max of 630hp, the actual 3363 can haul up to 250 tons!

The Tamiya rendition faithfully captures the truck's modern form with the use of ABS plastic body parts and a number of metal chassis components. One look at the detailed interior and auxiliary equipment, such as air tanks, will confirm that the body features replica-quality realism, which is further enhanced with metal transfers depicting emblems and numerous metal-plated parts. The chassis is built for durability as it uses aluminum side channels with resin cross members. Drivability is accomplished by power from the front-mounted motor and is transmitted via a propeller shaft to the rear axle; built-in differential gears guarantee smooth cornering. Gear changes can be made via a separately-sold 4-channel transmitter.

The Actros' realism can be further heightened with separately-available trailers that can be attached to its coupler and make the model over a meter in length!

  • Length: 538mm, Width: 195mm, Height: 305mm, Weight: Approx. 3.9kg
  • Wheelbase: 237+103mm
  • Tread: 155mm (Front), 138mm (Rear, Double Tire)
  • Chassis: Aluminum & Polycarbonate Resin Ladder Frame
  • Suspension: Front/Rear Leaf Springs
  • Caster Angle (Front/Rear): 0°/0°
  • Camber Angle (Front/Rear): 0° Toe Angle: 0°(Front & Rear)
  • Dampers: Aluminum Dummy Dampers (Front & Rear)
  • Drivetrain: Rear Double Axle Drive
  • Transmission: 3-gear transmission (gear shifting operated via transmitter)
  • Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
  • Diff. Gear: 3-bevel diff
  • Motor: Type 540
  • Tire Width/Diameter: 30mm/85mm (Front), 22mm/83mm (Rear)

Specifications

Brand Tamiya
