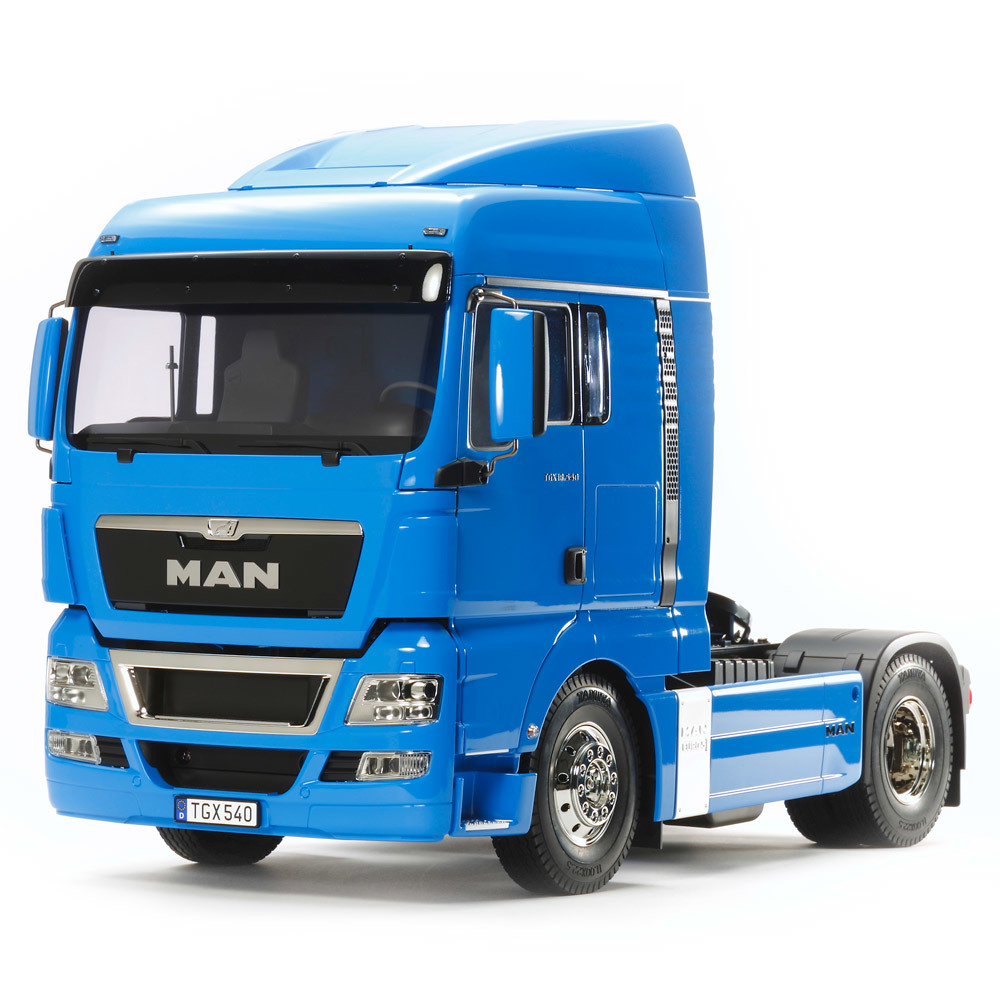

Tamiya RC 1/14 MAN TGX 18.540 4x2 XLX - French Blue Truck Kit T56350

DESCRIPTION
This is a special edition of the 1/14 R/C MAN TGX 18.540 4x2 XLX assembly kit. It comes with body components, which are beautifully pre-painted in Tamiya TS-10 French Blue (clear topcoat applied), with a durable coating applied to protect the paintwork from damage.

The Tamiya rendition of the MAN TGX 18.540 4x2 XLX faithfully captures the truck's modern form with the use of ABS plastic body parts and a number of metal chassis components. One look at the detailed interior and auxiliary equipment, such as air tanks, will confirm that the body features replica-quality realism, which is further enhanced with metal transfers depicting emblems and numerous metal-plated parts. The chassis is built for durability as it uses aluminum side channels with resin cross members. Drivability is accomplished by power from the front-mounted motor and is transmitted via a propeller shaft to the rear axle; built-in differential gears guarantee smooth cornering. Gear changes can be made via a separately sold 4-channel transmitter.

The model features a highly detailed body and a 2-axle chassis with durable ladder frame. When controlled with a separately available R/C system, the 3-speed transmission enables authentic gear changes while driving.

• Length 458mm, Width 193mm, Height 298mm.
• Wheelbase 272mm
• Tread 156mm (Front), 138mm (Rear, Double Tire)

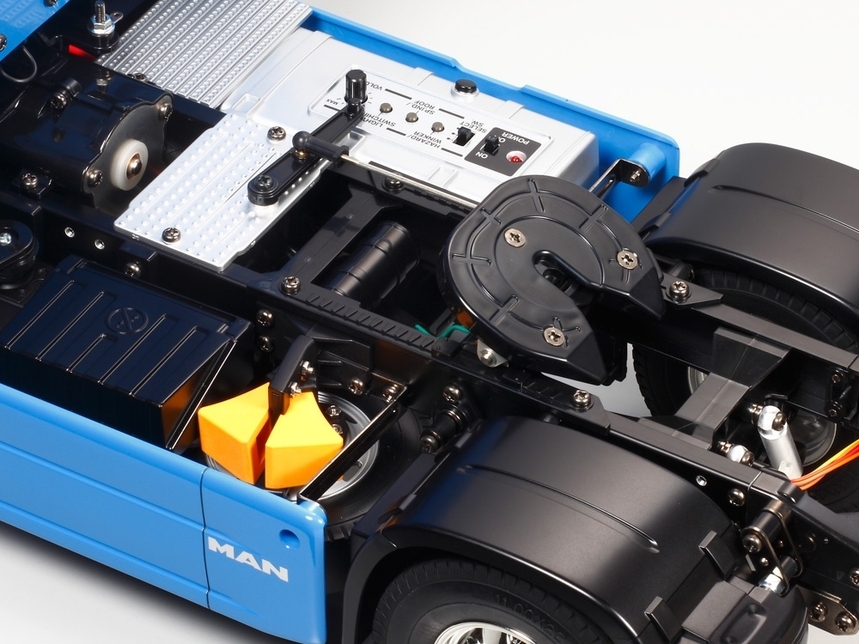

• Chassis: Aluminum & Polycarbonate Resin Ladder Frame
• Suspension: Front/Rear Leaf Springs
• Caster Angle (Front/Rear): 0°/ 0°
• Camber Angle (Front/Rear): 0°/ 0°
• Toe Angle (Front/Rear): 0°/ 0°
• Dampers: Front/Rear Aluminum Friction Dampers
• Drivetrain: Rear Single Axle Drive

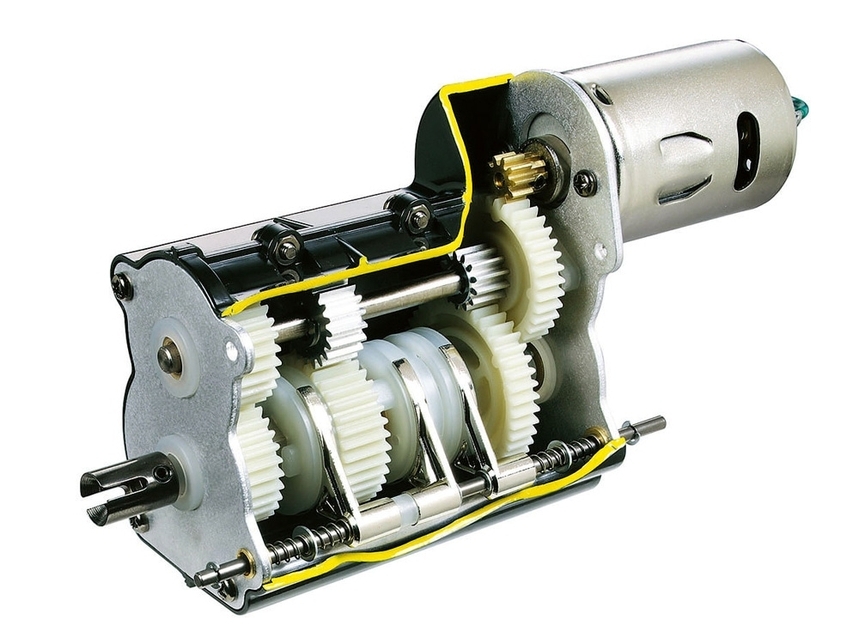

• Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
• Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
• Diff. Gear: 3-Bevel Diff.
• Motor: Type RS540
• Tire Width (Front & Rear) 22mm
• Tire Diameter (Front & Rear) 83mm

REQUIRED TO RUN:
Futaba 4YWD or equivalent Transmitter and Receiver
Tamiya Multi-Function Unit or Brushed ESC
Minimum x2 Servos (Steering and 3-speed gearbox)
Battery: NIMH 6-cell flat with standard Tamiya connector
Charger: NIMH Compatible Charger
