TCS 2 Pin Micro Connector 2 Function TCS-1473

TCS 2 Pin Micro Connector 2 Function TCS-1473

$22.99

Description

Description

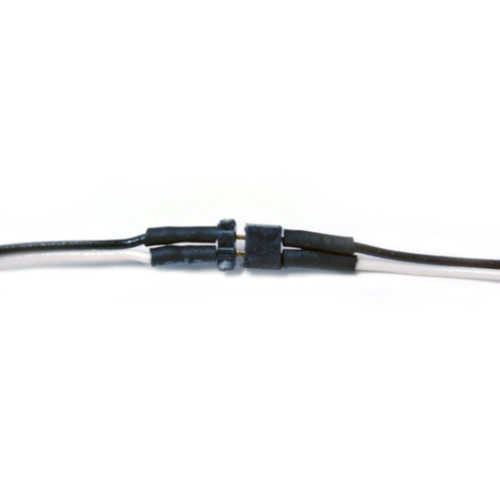

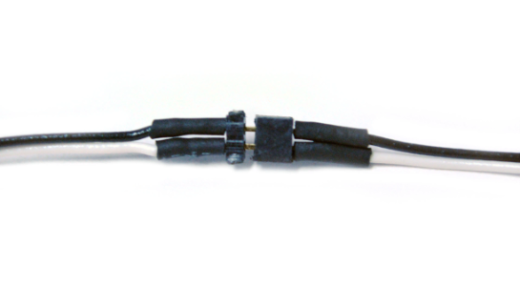

This is a simple, two pin, 1 mm (0.039) pitch, micro quick plug wired connector. These amazing new micro connectors are nearly half the size of our popular, super-small Mini Connectors that.. we have offered.. for.. years. When connected together it is .098 wide by .06 tall by .12 long, and it has 6 long wires on both ends. This mini, quick plug connecter is ideal for hardwire situations where you may have to remove or disconnect certain components from time to time. This quick plug connector is also ideal for Break Away applications where connections to need to be broken easily for safety or convenience. Each side of the connector has a white and a black (for polarity matching), 32 gauge, very flexible robotic wire soldered to it and insulated with heat shrink tubing.

The Pitch (distance from center to center of the pins) is 0.039 or 1 mm.

Dimensions: .098 x .06 x .12 or 2.48 mm x 1.52 mm x 3.05 mm


Specifications

Brand TCS
