Description

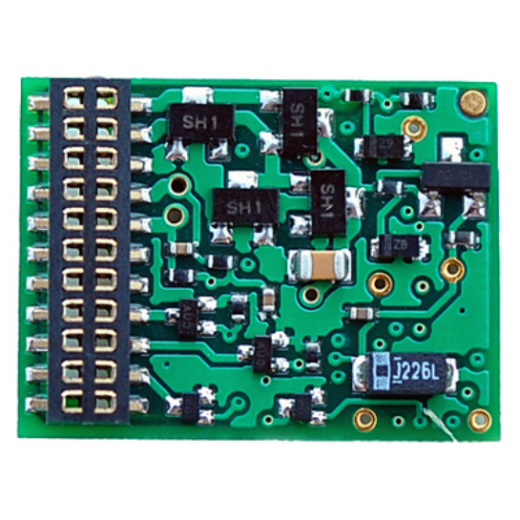

TCS EU621 21 Pin Decoder

The TCS EU621 decoder is a 21-Pin decoder for locomotives that are labelled as DCC Ready 21-Pin. It features RAILCOM detection for automation and provides 1 Amp continuous and 2 amp peak motor power, plus it features..new generation Back EMF for outstanding slow speed performance, quiet drive for super quiet engine performance, and auto adjusting motor control for hassle free set-up.

Features/Details

• 1 Amp continuous and 2 amp peak

• Autodetect for realistic throttle response when using DC power.

• Dimmed Brightness of bulbs or LEDs is adjustable.

• Variable Momentum lets you make custom acceleration curves.

• Factory Reset is faster and easier to reset to the default settings.

• Brake on DC stops the train with deceleration when in a DC block, maintains lighting, then accelerates when DCC returns.

• Mars, Gyra, Rotary Beacon and Blinking Ditch Lights are adjustable.

• Decoder Lock for programming same address decoders independently.

• Button Control of the Motor Circuit: allows for a smoke unit, high speed switching, or a variable brightness light up to 1.2 amps

• Function Remapping: 13 buttons for most lights, 7 buttons for operations.

• OPS Mode Programming (POM) allows on the main track programming.

• All Program Modes are supported allowing use with any controller.

• Basic and Advanced Consisting for use with any controller.

• 28 / 128 Speed Step Control operating at 256 speed steps.

• Additional lighting features not listed above include Random Flicker, Single & Double Strobe, and Constant Dim light.

Dimensions:20.24mm x 15.58mm x 4.73mm ..(0.797 x 0.614 x 0.185)
