TLR 8ight XT / XT-E 1/8 Truggy Race Kit, TLR04009

• Improved Suspension Geometry
• Suspension Arms
• Wide 3mm Chassis
• Larger Pinion Bearing
• Cab Forward Style Body
• Chassis Side Guards
• Large Footprint Engine Mount
• One Piece Motor Mount
• Adjustable Castor Blocks
• Bleeder Shock Caps
• Chassis Balance
• Steering Rack
• Shock Towers
• Better Diff Access
• Sway Bar System
• Equalized driveline
• Updated Radio Tray
• Optimized Shocks
• Ball Bearing Throttle and Brake Actuator
• Nitro and Electric parts included
• Large Bearing Spindles and Carriers
• Shorter Wheelbase
• Lipo/LiIon Compatible Battery Box

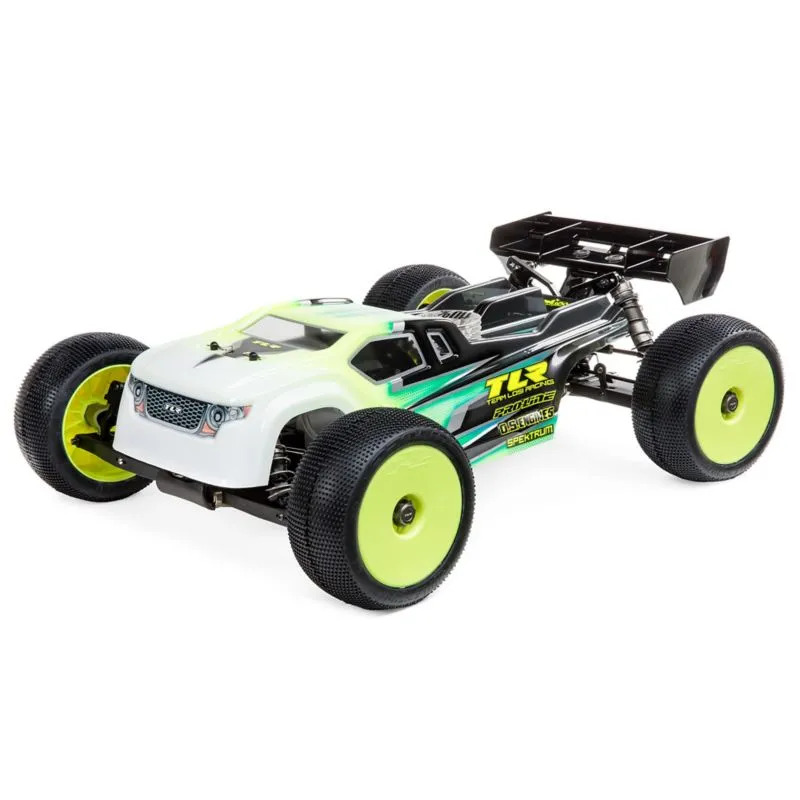

The new Team Losi Racing® 8IGHT-XT Next Generation Truggy builds on the championship-winning heritage of its predecessors with updates to the suspension geometry and drivetrain as well as the chassis layout that make it both easier to drive and tougher to beat. Plus, it includes Nitro and Electric in one box! The 8IGHT-XT has a combination of features second-to-none including large-footprint engine mount, 3mm chassis, cab-forward body, machined aluminium shock caps, and so much more. Designed to win straight out of the box, the 8IGHT-XT expands performance and is ready for the winner’s circle.

Improved Suspension Geometry

The 8IGHT-X Next Gen suspension geometry has been completely revamped making a car that is fast, nimble, and easy to drive. This includes a myriad of updates including longer front and rear arms, wider front pivot with less scrub radius, narrower rear pivot, and updated hub offset.

Suspension Arms

All new suspension arms have been designed to accept stiffener plates that will allow racers to tune the flex of the suspension. The kit will include moulded plates with optional carbon fibre plates available separately.

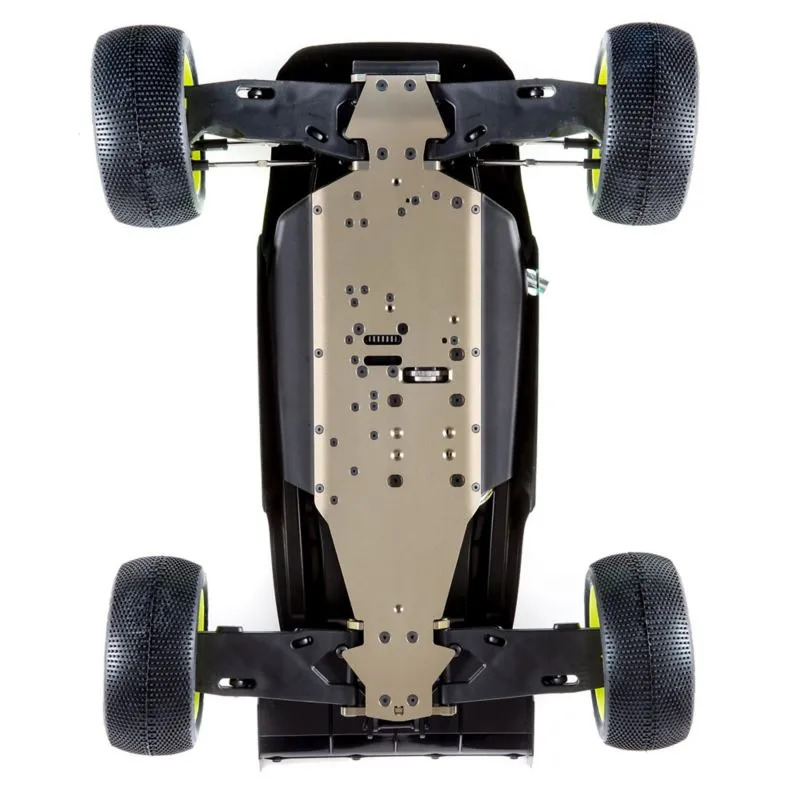

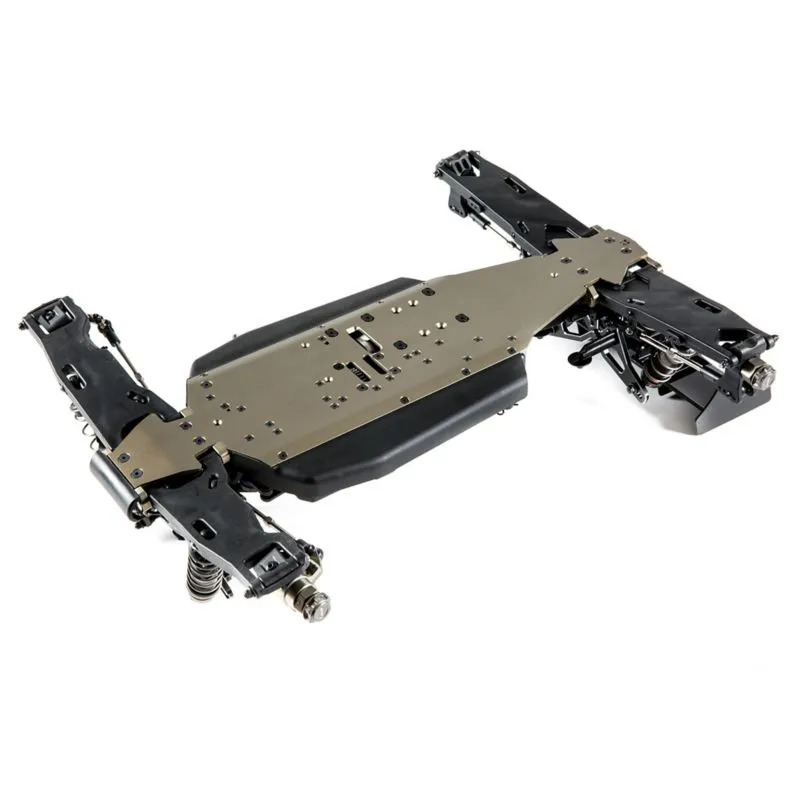

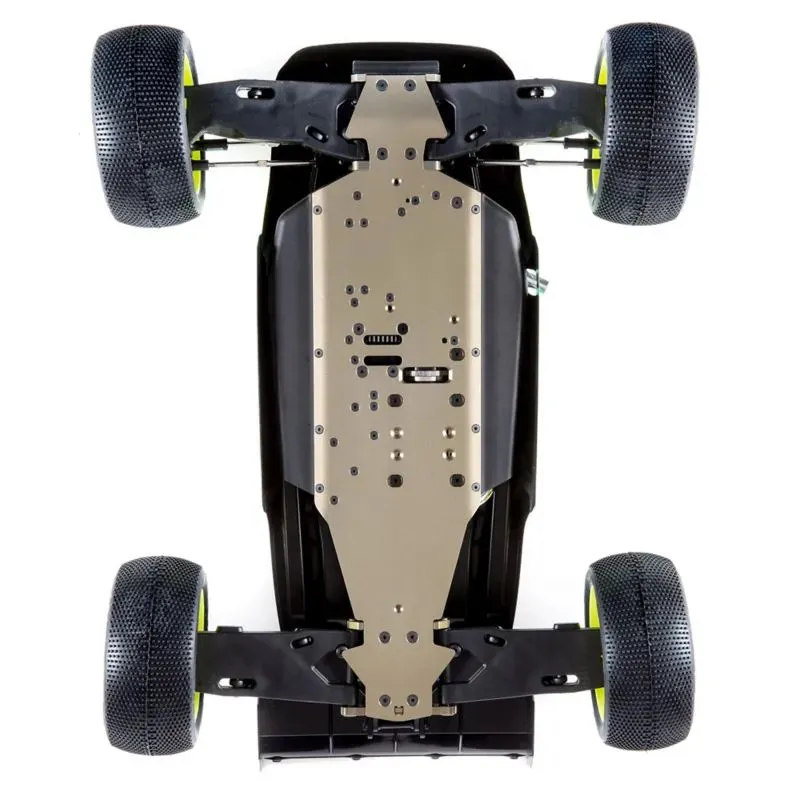

Wide 3mm Chassis

Chassis width has been increased to aid in stability and give the truggy a more neutral feel as well as equalized side to side for equal torsional flex and thinned down to 3mm for weight savings.

Larger Pinion Bearing

The internal pinion bearing size in the front and rear has been increased for added durability.

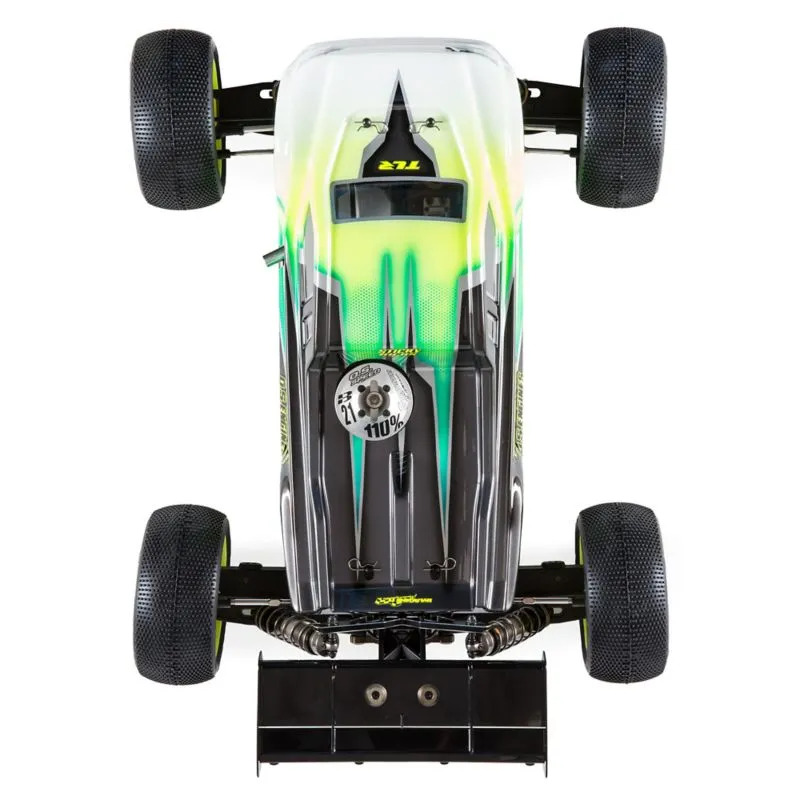

Cab Forward Style Body

Cab forward design helps with overall downforce, which improves steering and overall stability.

Chassis Side Guards

New chassis side guards that have an improved fit onto the chassis.

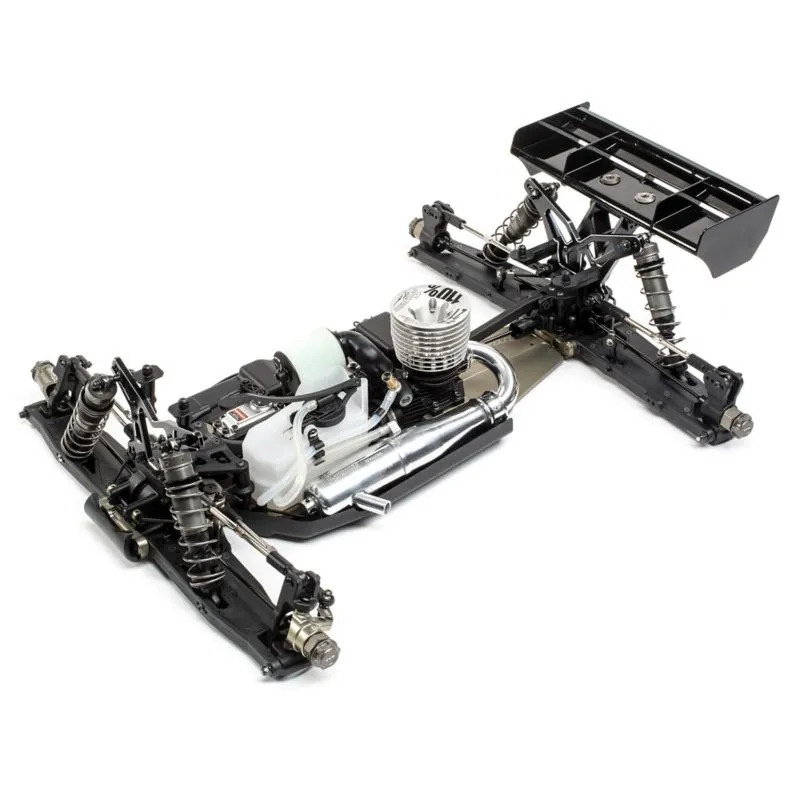

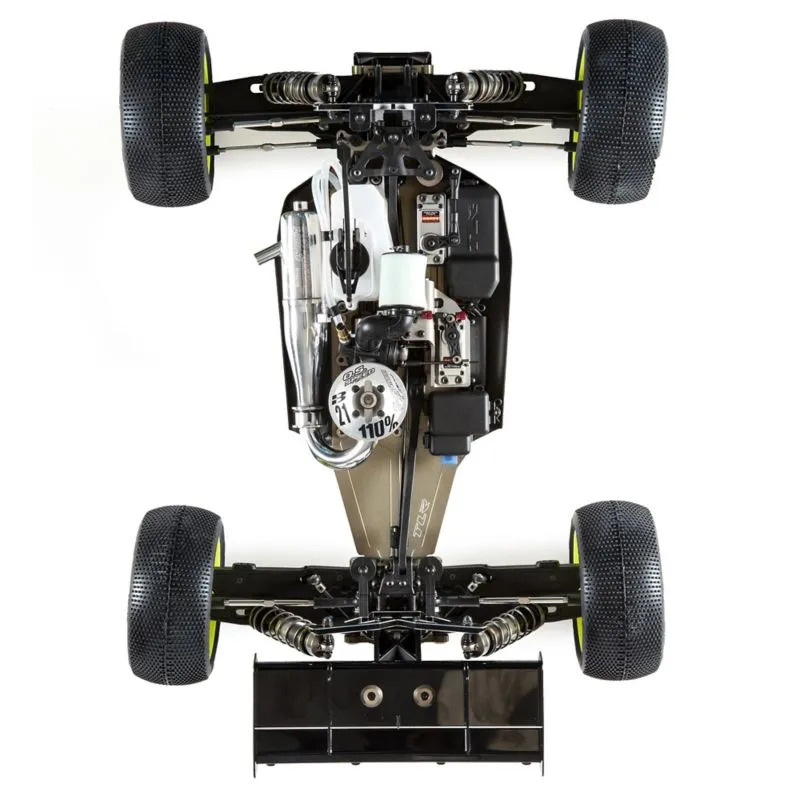

Large Footprint Engine Mount

Lightweight large-footprint engine mount that reduces flex underneath the engine to eliminate chassis fatigue on high traction race surfaces for nitro.

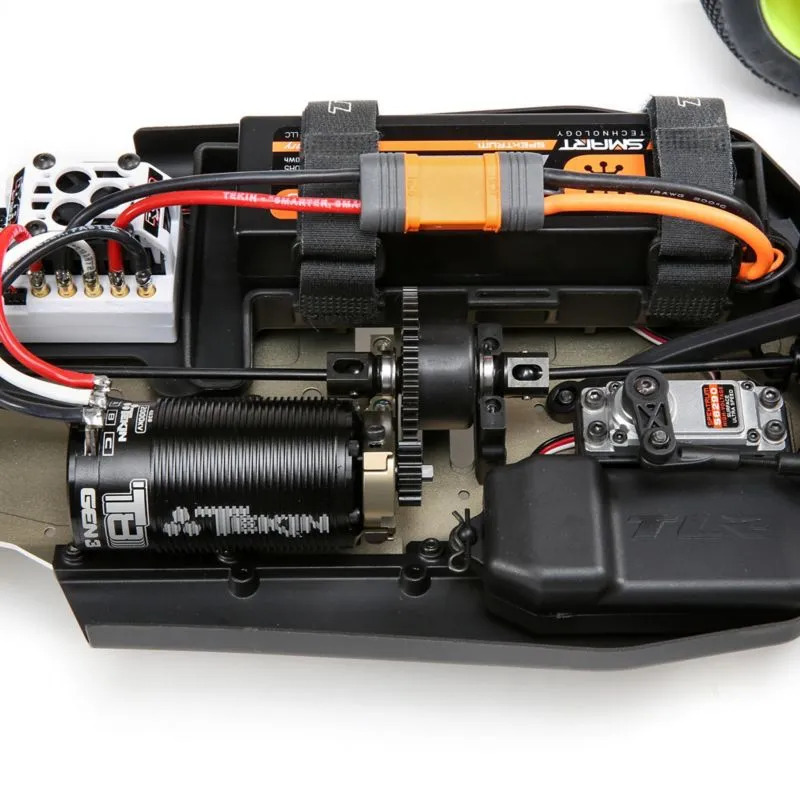

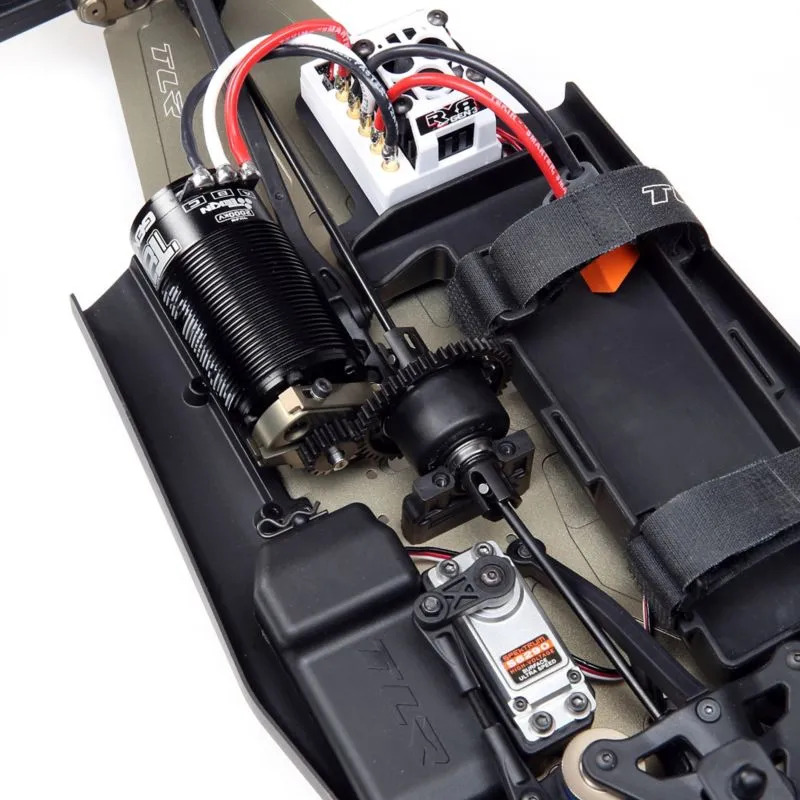

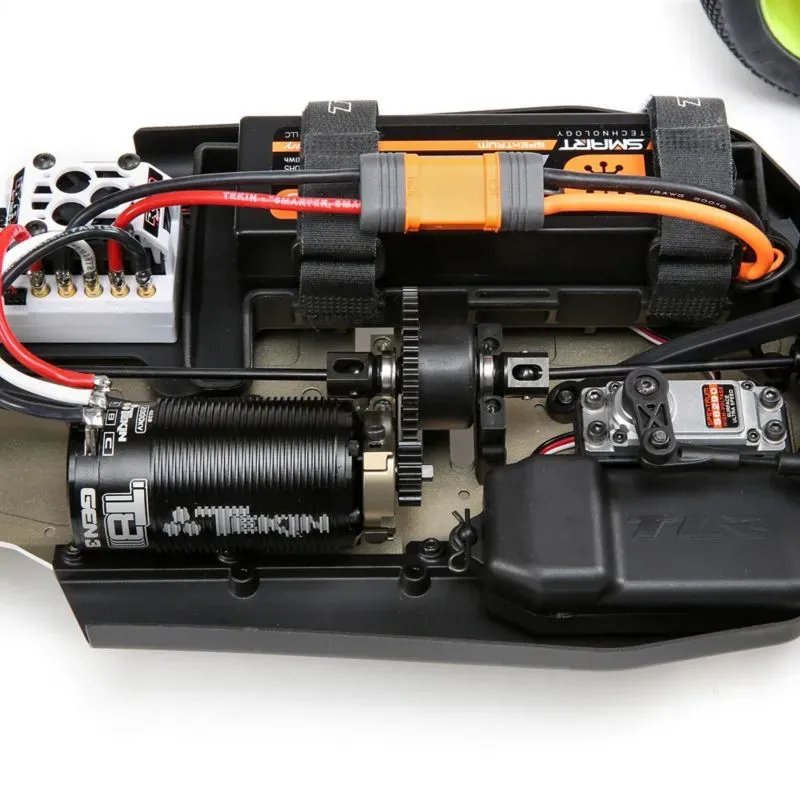

One Piece Motor Mount

One piece aluminium motor mount that is easy to adjust pinion sizing for electric motors.

Adjustable Castor Blocks

17.5 deg castor blocks that allow the height of the spindle to be adjusted.

Bleeder Shock Caps

Machined aluminium shock caps with threaded bleeder holes for easy and consistent bleeding of oil.

Chassis Balance

The weight has been moved forward in the chassis to provide a better driving balance to the vehicle and fewer parts needed to carry.

Steering Rack

Redesigned steering rack which will allow more Ackerman adjustments and an improved servo saver to eliminate bellcrank bind during high loads.

Shock Towers

Redesigned machined 7075-T6 aluminium shock towers with updated camber link holes.

Better Diff Access

The front and rear diff case have been altered to allow easier access to the differentials without removing the bulkheads from the vehicle.

Sway Bar System

New sway bar system that has adjustable length links to allow better equalization of each side of sway bar as well as collars that keep the sway bars centred.

Equalized driveline

The centre driveshaft angles have been modified so they are equal front to rear allowing for a more 4wd feel to the vehicle.

Updated Radio Tray

An updated radio tray now puts the throttle servo near the engine to eliminate additional linkage. The updated radio tray will ensure the throttle servo is rigidly mounted to avoid any flex by floating the servo off of the centre differential.

Optimized Shocks

The 8IGHT-X shocks are optimized and lightened to decrease the centre of gravity and lower the weight of the car.

Ball Bearing Throttle and Brake Actuator

The throttle and brake actuator use ball bearings in order to give a super smooth feel on the throttle.

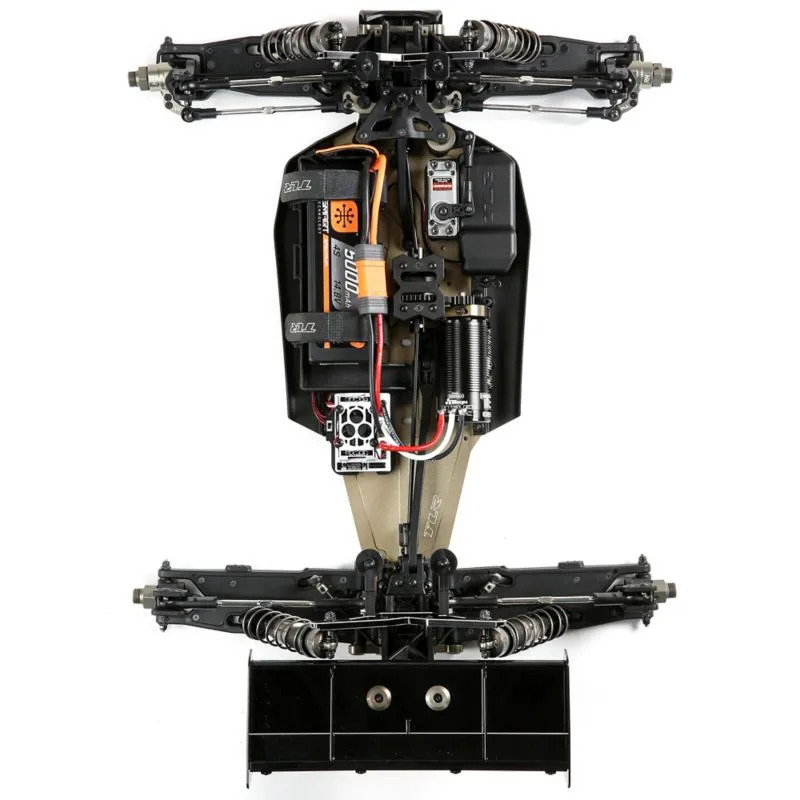

Nitro and Electric parts included

All of the items to run either nitro or electric included in one box.

Large Bearing Spindles and Carriers

All four corners of the vehicle have been updated to use large ball bearings and the same bearings.

Shorter Wheelbase

The wheelbase has been shortened to aid in grip as well as provide more agile handling.

Lipo/LiIon Compatible Battery Box

The battery box has been designed so that you can now fit either common lipo receiver packs or li ion receiver packs.
