Tomix N Easement Wide PC Curve Track 12-1/2" Radius, 22.5°

Tomix N Easement Wide PC Curve Track 12-1/2" Radius, 22.5°

$14.99

Description

This is a wide curve cant introduction rail with a radius of 317mm, a curve angle of 22.5°, and a width of 37mm. A canted rail where the rail on the outside of the curve is higher than the inside, and the rail is introduced into the canted rail by gradually adding cant from a flat without cant.

Features

  • Ballast and sleepers are painted for a beautiful appearance
  • PC sleepers are expressed
  • Rails are joined together with nails for easy and reliable connection
  • Connection compatible with conventional TOMIX rails
  • Handrails, side walls, and fences (sold separately) can be attached to the side of the rail
  • Attach the separately sold single wire pier base to the bottom to support single wire piers . Can be connected to the outside and used as a double-track rail
  • When used as a double-track rail, attach the coupling for the wide rail cant section (coupling for wide rail/slab rail to the flat introduction section) to the bottom surface to support double-track elevated piers
  • Power is supplied by attaching a wide rail/slab rail feeder to the bottom surface (slab rail feeder can also be attached, conventional feeder cannot be attached)
  • Wide rail/slab rail sensor can be attached by user additional machining (one-touch with slab rail sensor) (Mounted sensors cannot be installed)
  • Compatible with various overhead line pole installations
  • Cant inclination angle gradually changes from 0 degrees to approximately 4 degrees with a curve angle of 22.5 degrees

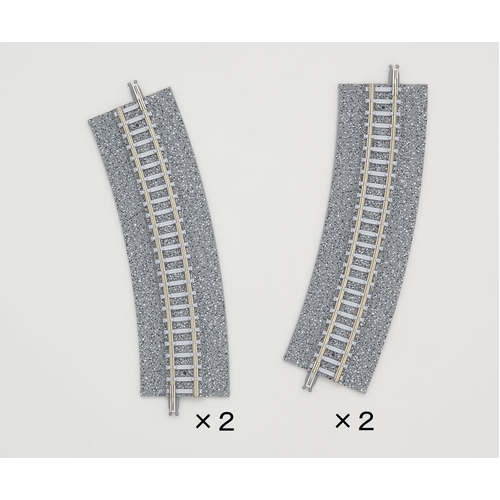

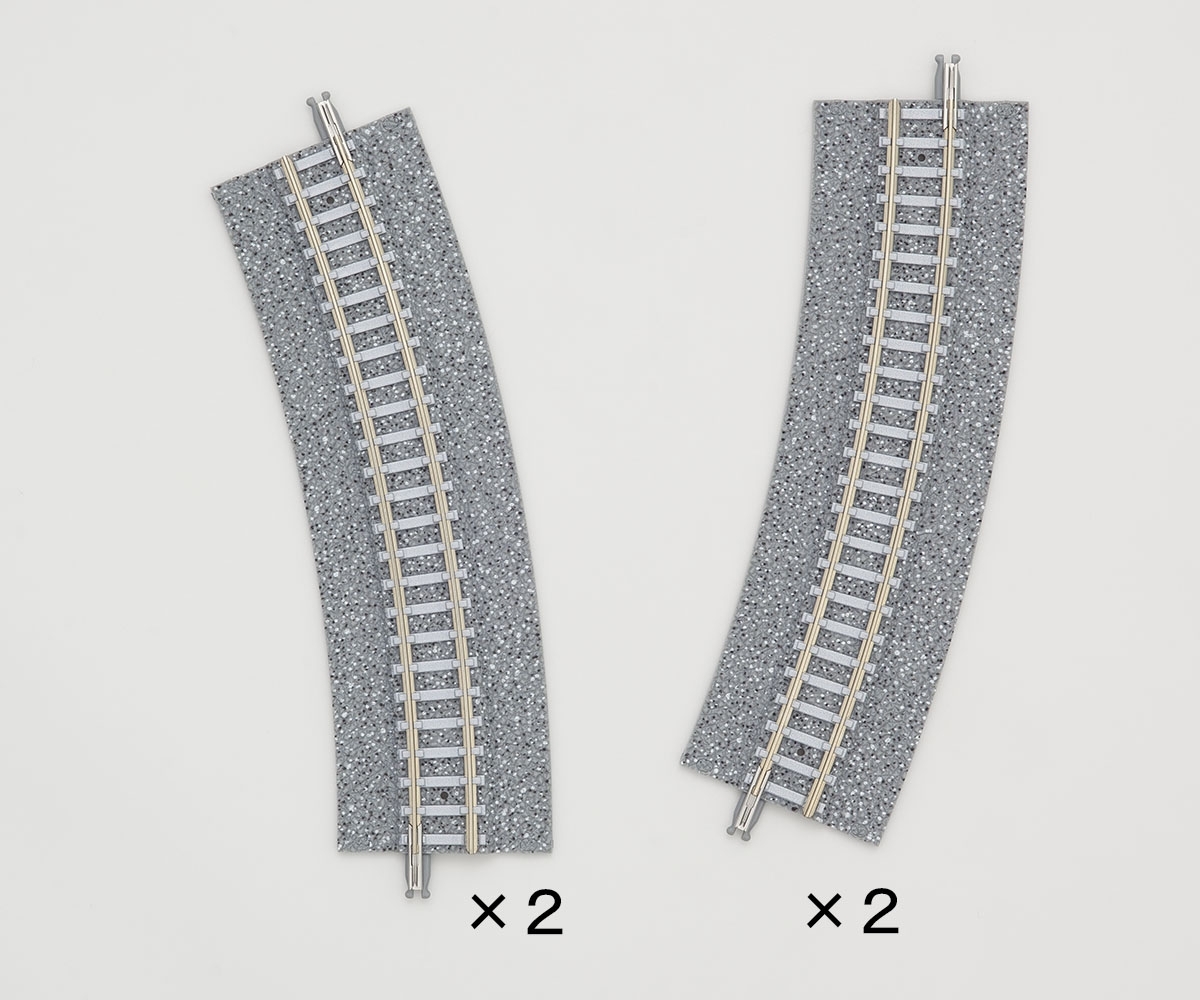

  • CR gradually inclines cant while curving to the right, and left 2 sets of 2 each of CL that gradually cants while curving.
  • Wide PC approach rail CR317-22.5-WP(F)
  • Wide PC approach rail CL317-22.5-WP(F)
  • Runner parts: Wide rail joint

Specifications

Brand Tomix
