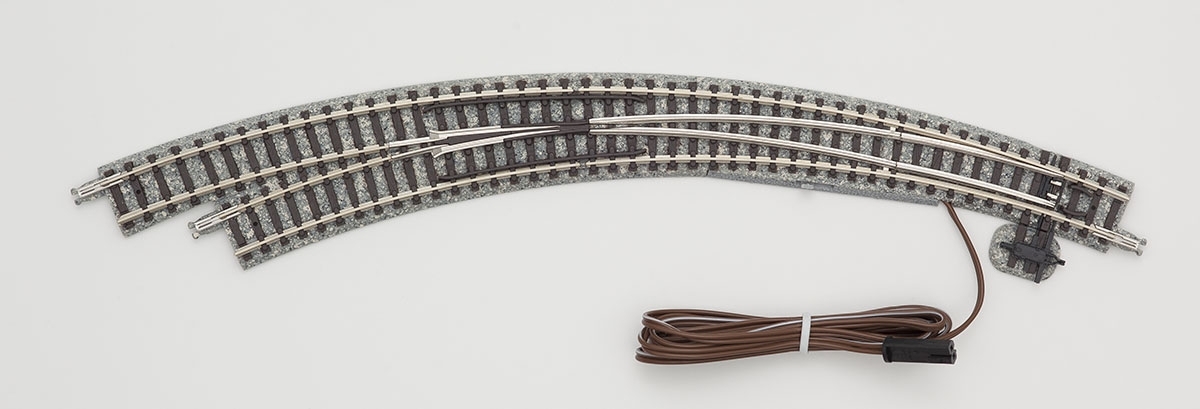

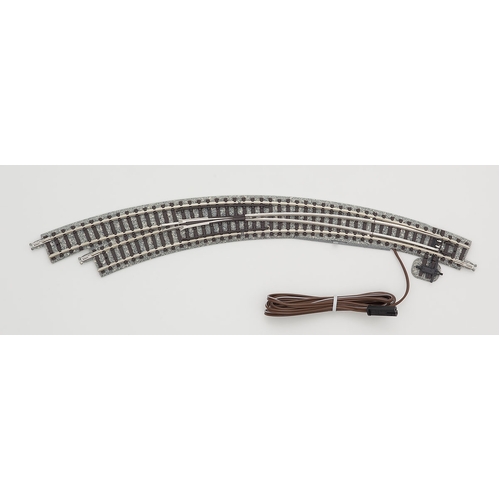

Tomix N Electric Turnout Track Curved Left Hand 12-1/2" 317mm & 11" 280mm Radius, 45° Curve

On the inside of a curve with a radius of 317 mm and 45 degrees, N-CPR317/280-45 (F) is an electric curve point that branches to the right and N-CPL317/280-45 (F) to the left with a radius of 280 mm and 45 degrees. Adopts a complete selection type and can also be used as a spring point.

Features

• Connection compatible with conventional TOMIX rails
• Rails are joined together with claws
• Improved joiner is used for the joiner
• Works in combination with point control box N and power unit N
• +/- energization of two rails This is a fully selective system that completely switches between two directions using two built-in contacts, so you can enjoy reverse operation and complex point installation with simple electrical wiring. Existing curve rail C317-45 x 2 , Or in combination with C280-45 x 2, branch at a double track interval of 37 mm at a 90 degree curve section
• In combination with 1 each of N-CPR317/280-45 (F) and N-CPL317/280-45 (F), Realizes one-way wires with double track spacing of 37 mm in a 90 degree curve section
• Gaps are realized by replacing with an insulated joiner (sold separately)
• Dummy point motor, spring point sign, manual switching device, sign sticker, etc. are included

• Electric point N-CPL317/280-45(F) (complete selection type)

Accessories

• Dummy point motor runner
• Dummy point switching machine runner
• Dummy point switching machine stand
• Dummy point switching machine seal
