Tomix N Wide PC Curved Track 23-13/16" 605mm Radius 10° (4) & 2-3/4" 70mm (2)

This is a single wide rail set that extends the double track spacing to 55.5mm on an island platform with an S-shaped curve with a curve radius of 605mm. *Cant is not included as it is mainly used to increase double track spacing.

Features

• Beautiful appearance by painting the ballast and sleepers
• PC sleeper expression
• Expansion of wide rail double track spacing from 37mm to 55.5mm
• C605-10-WP A(F) with removable ballast on the outside of the curve, and ballast on the inside of the curve There are two types, C605-10-WP B(F), which can be attached and detached.
• Without attaching ballast on one side, put the non-ballasted side together, C605-10-WP A(F) and C605-10-WP B(F) ) can be connected to the S70-WP(F) in an S-shape and installed on the side of the island platform.If you attach ballast on one side, it can be used as a regular wide rail.The rails can be connected with a snap with a claw, making it easy and secure. Connection
• Connection compatible with conventional TOMIX rail
• Handrails, side walls, and fences (sold separately) can be attached to the side of the rail
• Can be used as a double track rail by connecting two or more rails in parallel
• Wide rail/slab rail when used as a double track rail Compatible with double-track elevated piers by attaching the coupling to the bottom surface
• Power supply by attaching the wide rail/slab rail feeder to the bottom surface (slab rail feeder can also be attached, conventional feeder cannot be attached)
• For wide rail/slab rail Sensors can be installed by user additional machining (slab rail sensors and one-touch installation sensors cannot be installed) - Compatible with various overhead line post installations
• In order to attach wide rail walls S140 and various overhead line posts at 140 mm intervals to this product, C605 is available. Be sure to connect S70-WP(F) to the S-shape of -10-WP A(F) and C605-10-WP B(F) to make the rail total length 280mm.

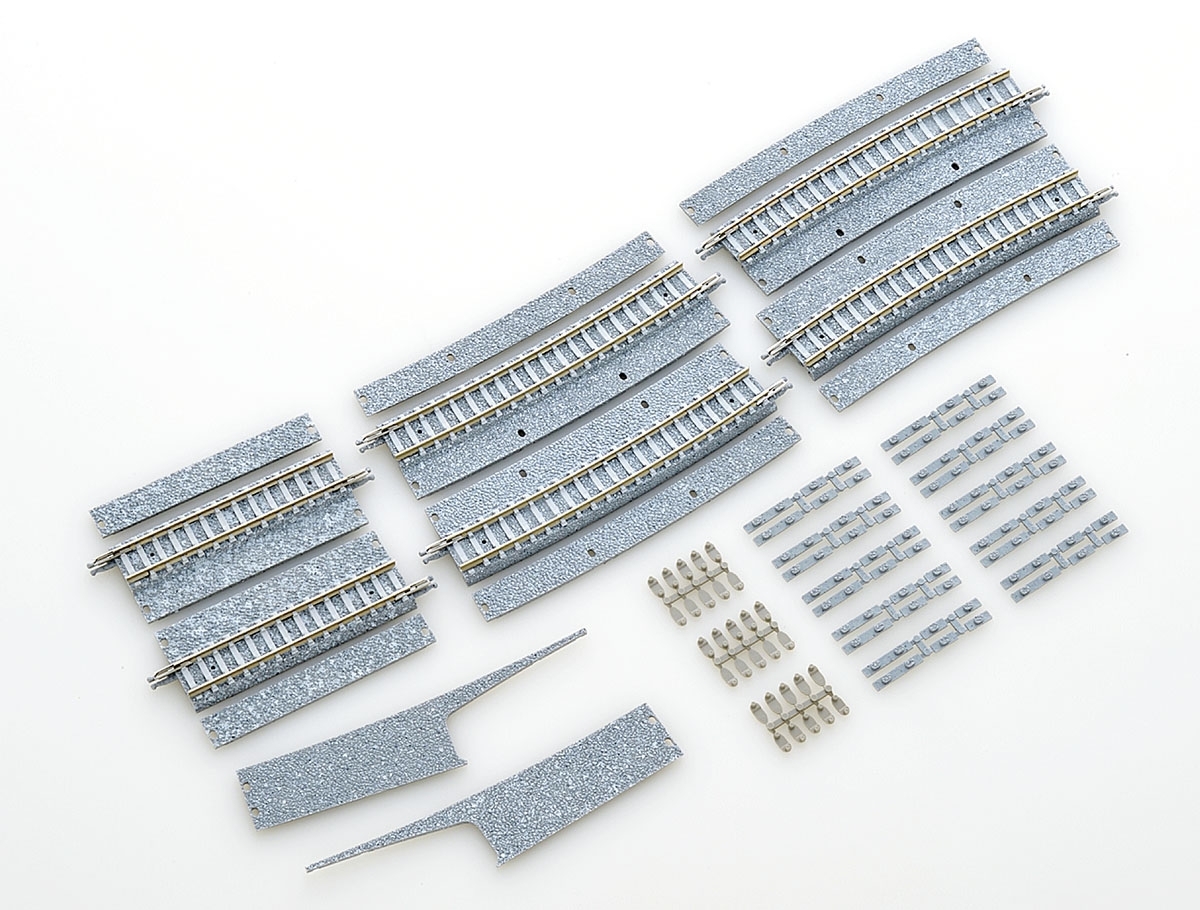

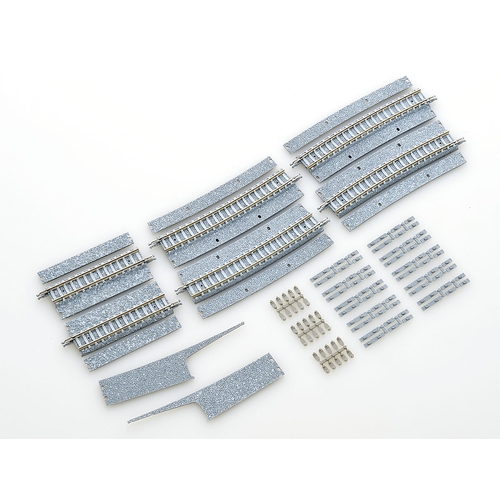

• Wide PC rail S70-WP(F)
• Wide PC curved rail C605-10-WP A(F)
• Wide PC curved rail C605-10-WP B(F)
• Wide ballast S70
• Wide ballast C605-10A
• Wide ballast C605-10A R
• Wide ballast C605-10A L
• Wide ballast C605-10B
• Runner parts: wide rail joint
• Runner parts: ballast joint, hook
