ToolkitRC M4 Pocket 80W 5A 1-4S Compact Balance Charger w/Built-In USB-C Input-Output

ToolkitRC M4 Pocket 80W 5A 1-4S Compact Balance Charger w/Built-In USB-C Input-Output

$54.99

Description

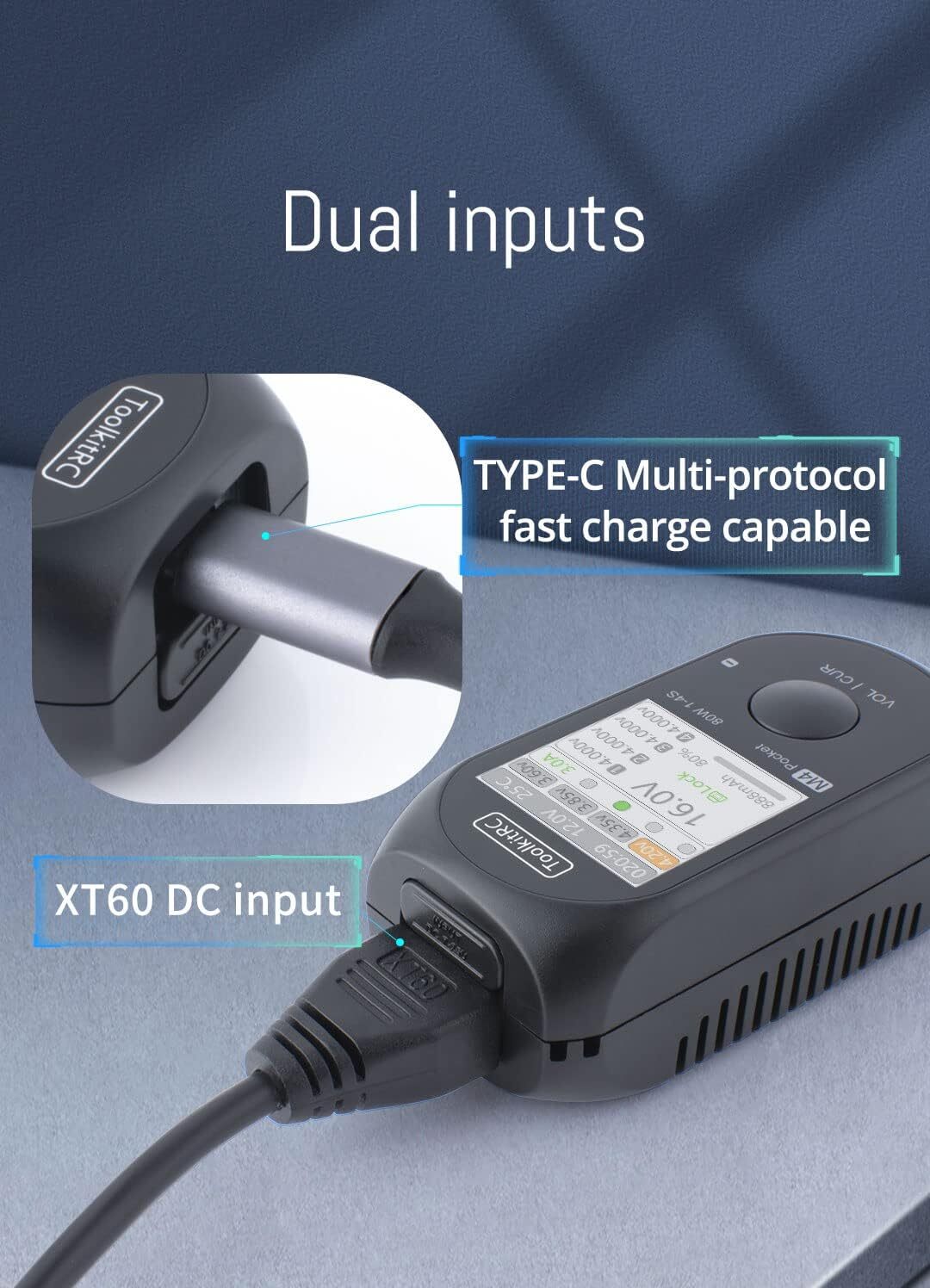

The acclaimed ToolkitRC M4 Pocket Charger is perfect for all of your on-the-go FPV charging needs! With 80 Watts of Power, Dual Inputs, Built-In USB-C Input and Output, and an IPS Wide-Angle Color Display, this charger will keep you powered up anywhere you go!

ToolkitRC - M4 Pocket 80w Compact Charger

Input Voltage:

XT60 7.0-25.0V MAX 5.0A
USB-C 7.0-20.0V
USB-C protocol: QC,PD,AFC,FCP Protocol
Type of battery: LiPo LiHv LiFe LipoStorage 1-4S
Charge power: 1.0-5.0A@MAX 80W
Balance current: 400mA @4.20V
Balance accuracy: <0.005V @ 4.2V
USB-C output: 1.0A @5.0V

  • Product size: 80x40x30 mm
  • Product weight: 75g
  • Pack size: 82x42x32mm
  • Pack weight: 85g

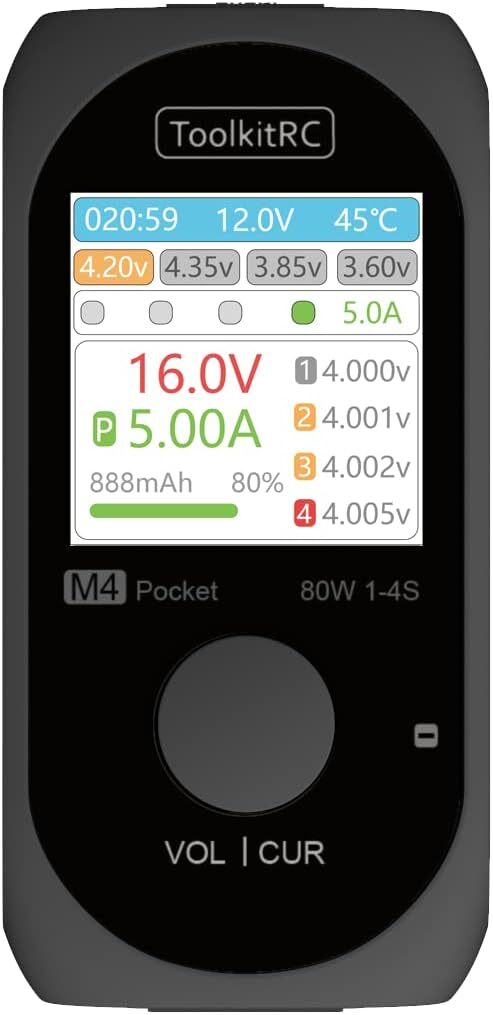

  • LCD: IPS 1.54inch LCD 240x240 Pixel

Specifications

Size and Weight

  • Shell material: PC-ABS V0
  • Size: 70*50*32mm
  • Weight: 82g

Display

  • Display Type: TN
  • Size: 1.77 inch
  • Panel Active Area: 28.03*35.04mm
  • Resolution: 128x160 Pixel
  • Number of Colors: 262K

Power

  • DC Input Voltage: 10-28.0V
  • PD3.0/QC Input Voltage : 12v-20v

Charger power:

  • DC: 200W
  • PD: Max. 80W (20V, 5A)

Discharge power:

Max. 24W based on 6S(4.2V/S)

Battery

Battery Types/Cells:

  • LiPo/LiFe/LiIon/LiHV: 1-6cells
  • NiMH/NiCd: 1-15cells
  • Pb: 3S/6S

Charge and Discharge

Charge current

  • LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.2-10.0A

Discharge current

  • LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.1-2.0A

Balance current

  • LiPo/LiFe/LiIon/LiHV: Max. 500mA

Operation

  • LiPo/LiFe/LiIon/LiHV: Balance charge, Charge, Discharge, Storage
  • NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
  • Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge
Brand Sky RC
