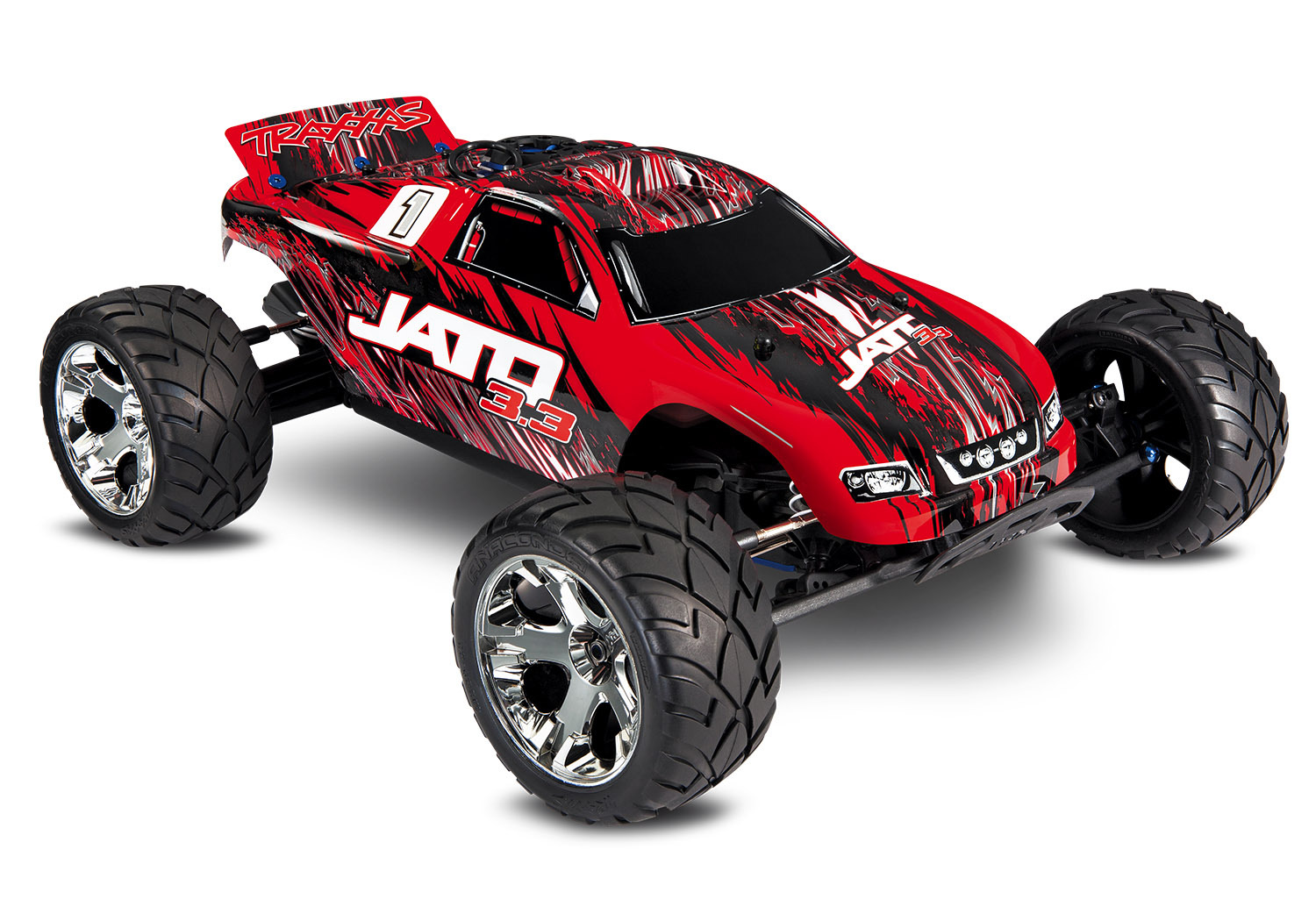

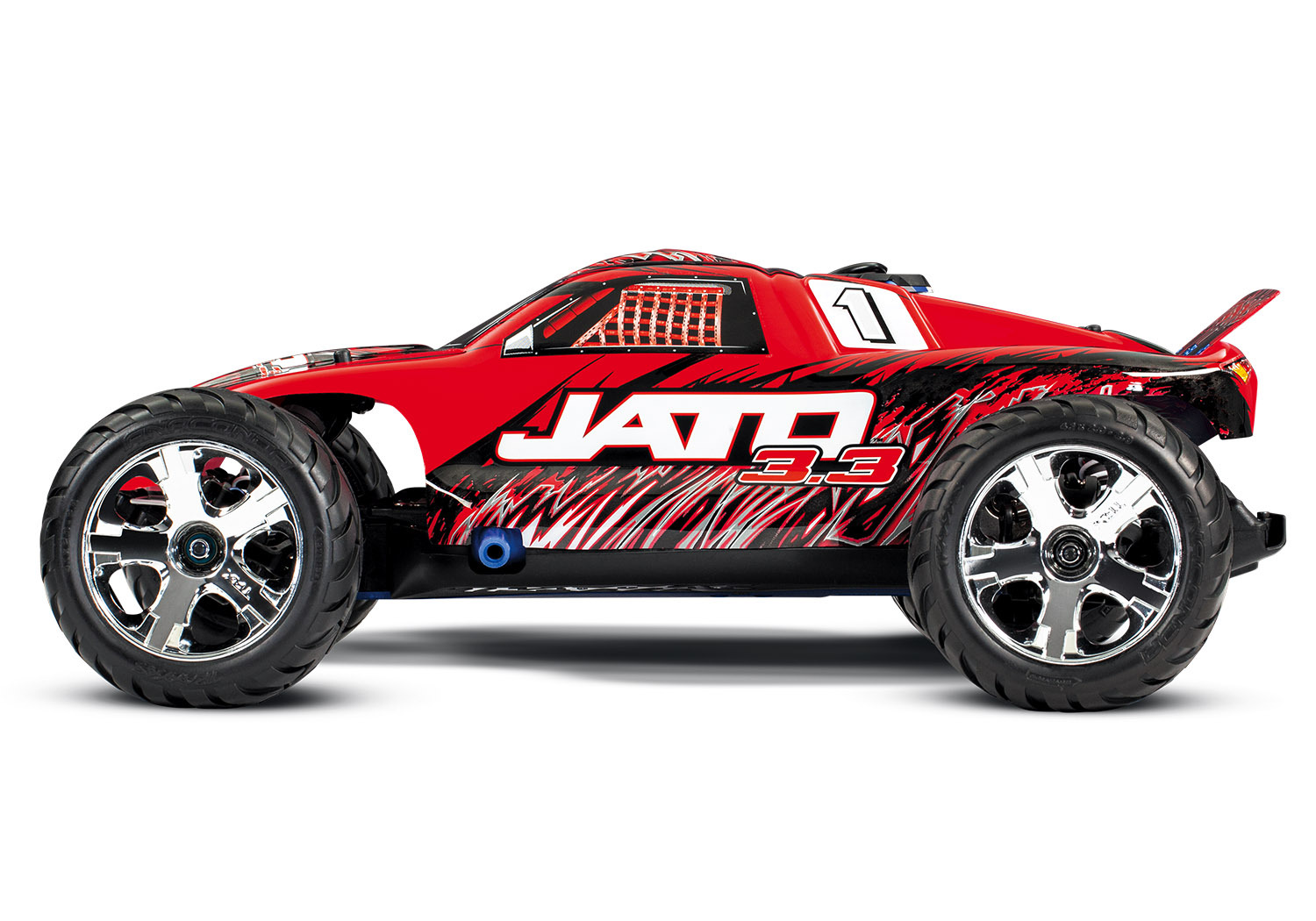

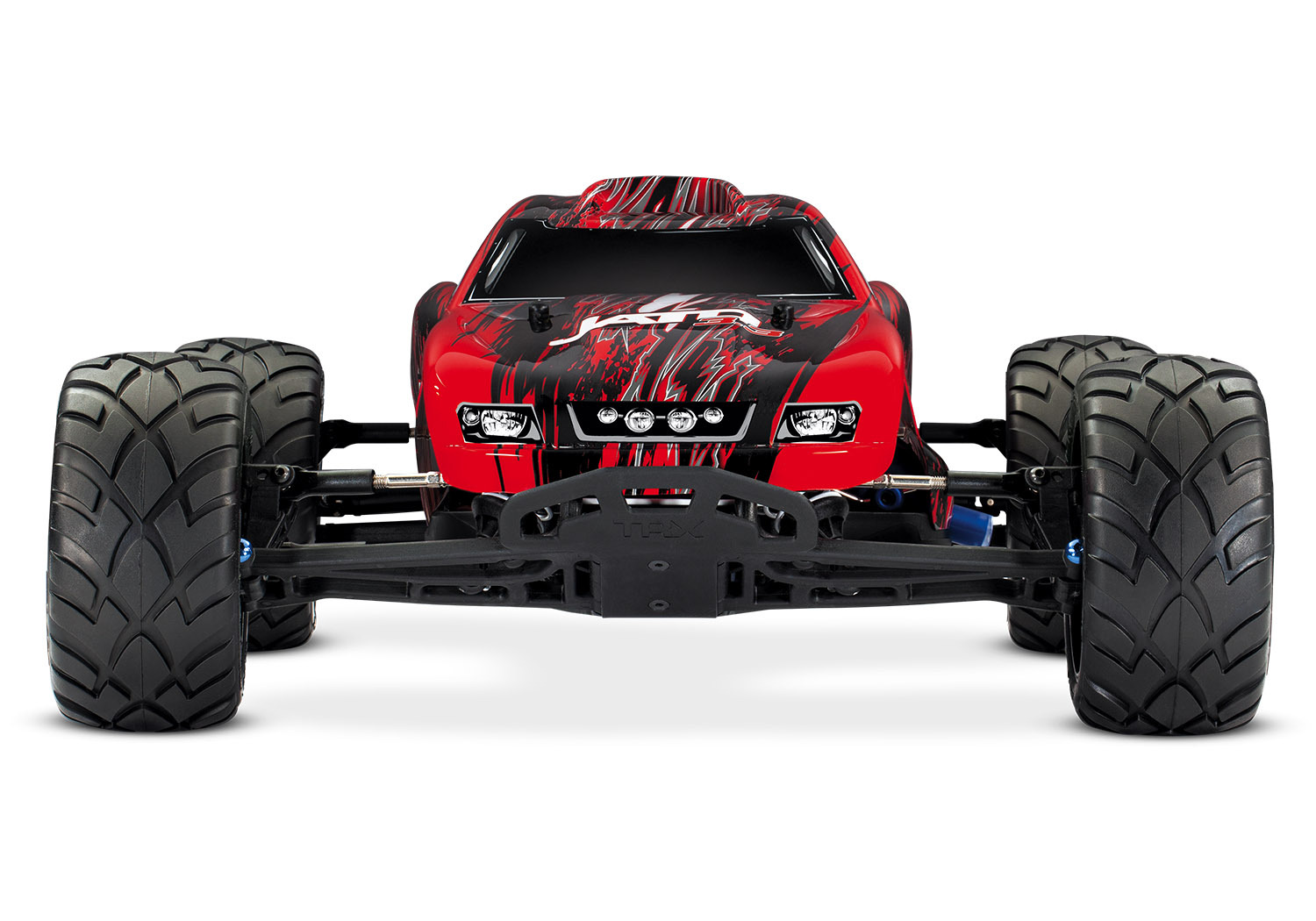

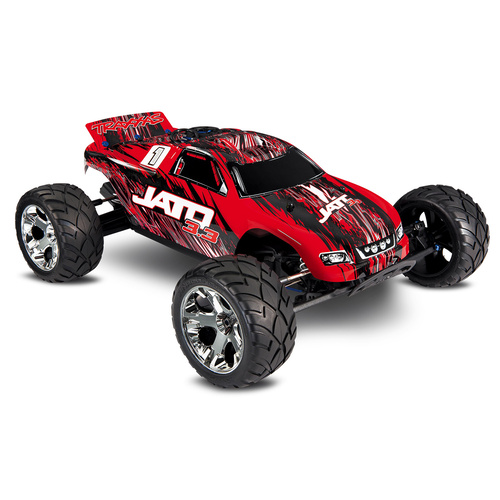

Traxxas 1/10 Jato 3.3 Nitro Stadium Truck (Red X)

Details

Traxxas Stability Management^®

Traxxas Stability Management makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making them much easier to control on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle's direction and making steering corrections to provide straight-ahead full throttle acceleration without fishtailing, spinouts, or loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle's line, then hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep the vehicle arrow straight until it comes to a complete stop. Traxxas TSM gives all the benefits modern electronic stabilization without intruding on driving fun or introducing unwanted and a disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine-tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. You may not even realize how much it is helping until you try to drive without it. (click here for more details)

Advanced TQi 2.4GHz Radio System with Traxxas Link Wireless Module
The Traxxas TQi paired with the Traxxas Link App is the most advanced, Ready-to-Race^®radio system available. Now, TQi connects wirelessly to the latest Traxxas Link App for the ultimate in ease-of-use and control. The TQi radio system is equipped with the Traxxas Link Wireless Module to unlock exciting features such as instant Bluetooth^®connectivity; access to the full range of powerful TQi tuning and telemetry tools through an intuitive high-definition graphical interface; and the ability to have a friend remotely monitor real-time telemetry while you focus on mashing the throttle. Your co-driver can even make adjustments for you, remotely, while you drive. No other radio system can do that. Just like the speed and performance Traxxas engineers into the vehicles, the power and capability of TQi and Traxxas Link expands your fun into all-new territory. Learn more about the new Traxxas TQi Radio System here.

Factory-Equipped Real-Time Telemetry
Jato includes factory-installed telemetry sensors enabling Traxxas Link to collect and record real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others. The powerful Traxxas Link App is available on Google Play and the App Store.

­

TRX 3.3 Racing Engine
The TRX^®3.3 Racing Engine draws from the Traxxas heritage of engine design and manufacturing. 14-years of nitro engine development have culminated into the most powerful TRX engine ever made, the new TRX 3.3 Racing Engine. It embodies everything we've learned from over a decade of making engines more powerful, more reliable, and easier to use. The TRX 3.3 Racing Engine is so powerful it establishes a whole new classification of power.... Extreme Power!

The TRX 3.3 produces an extreme 60% more peak horsepower compared to the TRX 2.5! The overall power under the curve is nearly 50% greater to deliver the smooth, linear power output TRX engines are famous for. The TRX 3.3 Racing Engine offers thoroughbred race engine performance that's absolutely second to none.

There's no penalty to pay for having more power either. The TRX 3.3 Racing Engine is equipped with EZ-Start^®push-button electric starting and simple, reliable tuning from the two-needle composite slide carburetor. Plus it's backed by the support and reliability you expect from Traxxas including the Exclusive Lifetime Engine Replacement Plan.

Resonator­blue-anodized aluminum tuned pipe
The Traxxas Resonator aluminum tuned pipe is precision engineered and dyno tested to optimize the power output of the TRX 3.3 Racing Engine. The result is linear power output that delivers searing acceleration and top speed.

Front and Rear Sway Bars
The front and rear sway bars make sure that the Jato 3.3 maintains the most stability possible, by reducing body roll and sway. Additionally, the sway bars improve cornering traction, and transitional steering response. They are fully adjustable with three different bar weights to tune for maximum cornering speed.

Anaconda Performance Tires
Anacondas feature a specifically engineered rubber compound that stands up to asphalt for long life and provides sticky traction on slick street surfaces. Anaconda's contoured molded foam inserts couple with the directional tread to provide the stability needed for ultimate high-speed on-road running. The Anaconda tires are extremely versatile providing great performance off-road too. Performance that surpasses on-road sedans, paired with stadium truck ground clearance, will have you hopping curbs to show off, on-road and off.

Wheelie Bar
The Jato 3.3 comes with an integrated stock wheelie bar because the horsepower of the TRX 3.3 Racing Engine makes it mandatory equipment! The broad linear power output of the 3.3 engine delivers wheels-up power at almost any speed, making the Jato 3.3 one furiously fun wheelie machine.

Multi-Color ProGraphix Body
The Jato's sleek, low, aerodynamic body cuts through the wind to maintain stability at its 65+mph top speed. Jato's bold graphics come pre-painted from the factory and look fast even when standing still. The rear wing is there to stay with countersunk aluminum hardware to maintain a smooth finish and unmatched strength.

Sealed Limited Slip Differential
The sealed limited slip gear differential can be precisely tuned with lighter or heavier lube for maximizing rear traction and cornering performance. Superior silicone-seals are used for reliable sealing. Unlike a ball differential, Jato's sealed-gear differential never slips or wanders out of adjustment, and it is virtually maintenance free. It's definitely the best solution for the demands of a high-performance truck like Jato. You get all the benefits of an adjustable limited slip differential without all the maintenance hassle of a ball diff. Jato's transmission design provides easy access to the differential. Just remove four screws and the rear cover and there it is. Trackside tuning is fast and easy.

Torque Control Slipper Clutch
The Torque Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement you can count on, lap after lap. Spur gears can be removed and replaced without altering the slipper adjustment. A center ball bearing maintains precise, long-lasting alignment with near friction-free running and virtually zero maintenance.

Zero Bump Steer Steering Geometry
Bump steer occurs when the steering angle of the front wheels changes as the suspension moves up and down through its range of travel. Suspensions that have bump steer make it difficult to drive in a straight line over bumpy terrain. The Jato's computer-modeled steering geometry completely eliminates bump steer. The unique bellcrank steering system has an integrated servo saver for precise feel and tight steering response.

GTR Shocks
Jato is equipped with superior damping capability that can be finely tuned for any track condition. High tech composite shock bodies reduce weight to a minimum and provide super-smooth internal surface finishes for damping that feels like liquid silk. Computer-analyzed body size and volume maintains optimum oil temperature and the most consistent oil viscosity. Traxxas' unique silicone X-seals provide superior sealing with less friction than typical O-ring seals. GTR shocks are equipped with volume compensating air bladders that keep out the air and stop oil foaming. Convenient, threaded spring pre-load adjusters make it easy to fine tune the ride height.

Class-Leading Suspension Travel
One of the keys to Jato's superior handling characteristics is class-leading suspension travel. If the suspension bottoms out or runs out of travel it can no longer do its job and control is severely diminished. Jato's super long suspension arms reach out to deliver up to 12 mm more travel than typical 2WD racing trucks. More travel means increased stability, more control, and better handling over rough terrain. Jump higher, go farther and let Jato's suspension do the work.

Super-Duty Sealed Driveshafts
The super-duty sealed driveshafts are lightweight, and require almost no maintenance. The true, constant velocity design allows huge deflection angles not possible with conventional shafts, perfect for Jato's class leading suspension travel. Rubber seals keep out performance-robbing dirt for smooth consistent running.

Precision Close-Ratio Two-Speed Transmission
Jato raises the bar by being the first 2WD nitro racing truck to offer an autoshifting, close-ratio 2-speed that is fully enclosed, sealed, and completely integrated with the transmission. Class-leading acceleration is combined with class-leading top speed, all without any performance compromise. The shift point is adjustable to maximize Jato's acceleration potential. A drop-in single speed option is also available. The transmission is light and compact with a low rotating mass internal assembly for quick, high-revving performance.

Rubber-Sealed Ball Bearings
Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dirt & nitro environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Low-Profile Fuel Tank
The low-profile 75 cc fuel tank design provides more consistent fuel pressure and flow as the fuel level in the tank changes. It's baffled and sumped to prevent sloshing and fuel starvation, and a built-in bronze sintered filter keeps clean fuel flowing. Rubber mounts isolate engine vibrations to prevent foaming. The integrated pull handle allows fast easy fuel stops that don't require lifting or removing the body. A unique integrated spill guard directs fuel spillage to the ground, away from the chassis.

Hex Hardware
Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.

Integrated Dual Position Power System
On most 2WD nitro trucks it seems like incorporating the batteries to power the radio system is an afterthought in the design process. Jato has thoughtfully integrated the battery placement into the design of the truck. Only Jato has two options for battery placement; mid placement in the center of the chassis or the more traditional rear placement behind the rear shock tower. Battery placement becomes another tuning tool in your arsenal to either enhance rear traction or promote more positive steering. Jato can accept AA dry cells or rechargeable receiver packs. If you use a rechargeable pack such as the Traxxas RX Power system, a handy charge jack has been built into the chassis top plate.

Double-Shear Connections
Jato continues Traxxas' excellent standards for durability by providing captured double-shear connections on all critical suspension linkage. Jato also utilizes captured rod ends to eliminate the risk of a race-ending pop off common with standard ball cup connectors.

Hardened-Steel Suspension Pins
Jato uses captured, hardened-steel suspension pins that eliminate troublesome e-clips and allows fast, easy suspension service.

Integrated Dirt Guards
Jato's design incorporates features that provide superior protection from the elements. Buggy style dirt guards are attached to the sides of the chassis. The body fits tightly against the dirt guards providing an effective barrier to keep out dirt, grime, and kicked up rocks. Enclosed radio boxes on the chassis protect the sensitive electronics from dirt and fuel spills.

Large Diameter Disc Brake
Powerful braking is provided by a unique, semi-metallic friction disc and tough metal calipers. The semi metallic friction material is superior to graphite and nylon materials. It was designed to practically eliminate fade in long nitro racing events and provide smooth engagement with consistent braking performance. Jato lets you brake later and dive harder into the corners.

Over $50 in Accessories Included
Traxxas Top Fuel^®Power Plus and 8 AA batteries are all you need to go from the box to the backyard with the Jato 3.3. The Jato 3.3 is fully assembled, with pre-glued tires, a mounted and trimmed ProGraphix body and dialed-in electronics. But we didn't stop there, a high-quality 6-cell EZ-Start battery is included with a 2-amp DC peak detecting fast charger. A 500 cc fuel bottle is also included for fast fillups, and there's even a spare glow plug and air filter element to keep you running strong. A precision metric specialty tool set is also included for easy servicing. Almost everything you need to experience nitro monster fun the Traxxas way is already in the box.

Features

• Best-in-class acceleration, 0-60mph in less than 4.2 seconds!
• Best-in-class top speed, 65+ mph!
• The TRX^®3.3 Racing Engine provides extreme power, brutal speed, and furious wheelie action.
• TQi 2.4GHz radio system with Traxxas Link Wireless Module
  • TQi 2.4GHz High Output transmitter
  • Traxxas Stability Management^®
  • Traxxas Link Wireless Module
  • Factory installed speed, RPM, and temperature telemetry sensors
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models€”just switch on and drive, model selection" is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
• Resonator blue-anodized aluminum tuned pipe is engineered with precision to enhance the performance of the TRX 3.3 Racing Engine.
• Front & rear sway bars provide superior handling and stability.
• Super-sticky 2.8-inch Anaconda performance tires deliver asphalt-hugging street traction.
• So fast, that the included wheelie bar is mandatory.
• Incredible body graphics match the performance and speed of Jato 3.3.
• Best in class suspension travel, 12 mm more than other 2WD racing trucks!
• Adjustable internal two-speed allows unmatched acceleration and top speed without compromise.
• Sealed gearbox protects the two-speed and other sensitive transmission components from dirt and rocks.
• Sealed, limited-slip gear differential is fully tunable with standard silicone differential oils. Ball differentials simply can't compete for tunability, efficiency and reliability.
• Our engineers went to extreme lengths to develop the unique bellcrank steering system geometry that completely eliminates bump steer. An integrated servo saver protects the steering servo.
• Torque-Control slipper clutch uses semi-metallic pads and heat-dissipating finned aluminum alloy pressure plates for smooth linear engagement and consistent traction control.
• The semi-metallic brake disk provides smooth stopping power and virtually eliminates fade caused by heat build-up.
• The Traxxas EZ-Start^®incorporates our latest revision of component and design technology to assure the most reliable operation. It is the only starting system to provide true, one-handed push-button engine starting. On-board diagnostics instantly troubleshoot any potential starting problems. EZ-Start is the safest and easiest starting system available.
• 2-amp DC Peak Detecting Fast Charger
• The low-profile 75 cc fuel tank is mounted in the center of the chassis to promote superior chassis balance and handling dynamics.
• The TRX 3.3 Racing Engine is mounted in the middle of the chassis allowing near perfect side-to-side weight distribution.
• Double-shear connections are used on critical suspension linkage to prevent separation in a collision.
• True constant-velocity U-joint driveshafts use rubber seals to maintain smooth, trouble-free performance. These operate at the most extreme deflection angles and allow for the most suspension travel. Optional metal constant velocity driveshafts are available that reduce rotating mass for racing conditions.
• Tough, 3 mm thick 6061 aluminum chassis plate is fully countersunk on the bottom, including the engine mounting screws.
• Removable roll hoop helps protect critical chassis components and serves as a convenient carry handle.
• Precise GTR shocks with composite bodies provide smooth, consistent damping performance. Threaded shock bodies allow precise ride height adjustment.
• Integrated "buggy style" dirt guards join with the body to form a tightly sealed barrier against dirt and rocks.
• Enclosed radio box protects sensitive electronics from dirt and fuel spills.
• Jato's exclusive 2-position receiver battery mounting (mid and rear) provides additional tuning options.
• Precision metric hex hardware is used throughout.
• Jato offers full suspension adjustability including caster, camber, toe, anti-squat, ride height, weight bias, and roll-center
• Quick-Start quide included.
